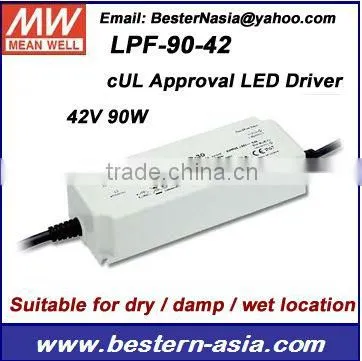

Meanwell 42V Led Driver: LPF-90-42

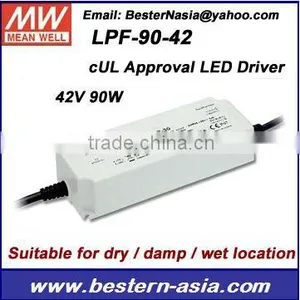

Meanwell 42V Led Driver: LPF-90-42 thumbnail-1
Meanwell 42V Led Driver: LPF-90-42 photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Meanwell
Model Number:
LPF-90-42
Contact Supplier Request Quote Chat Now
Besternasia Electronics Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Meanwell
Model Number LPF-90-42
Output Power Other, 90W
Output Type Single
Input Voltage 220V
Output Voltage 42V
Output Frequency 50-60HZ
Output Current 2.15A

Specifications

Meanwell 42V Led Driver: LPF-90-42
1. UL, CE safty approval
2. 91% eff
3. 3 year warranty
4. Waterproof, IP67 level

Meanwell 42V Led Driver: LPF-90-42





Meanwell Warranty:   3 years warranty





Meanwell LED Location appliance:



Suitable for dry / damp / wet locations





LPF-90-42Features:



1. Active PFC Function
2. High efficiency to 91%

3. Universal AC input 90-305Vac

4. Protections: Short Circuit / Overload Current / Over Voltage / Over Temperature

5. Fully encapsulated

6. Fully isolated plastic case



Meanwell LED  Applications:



LED lighting

Moving sign applications

LED Strip Power Supply







 LPF-90-42 Specification:



MODEL LPF-90D-42
OUTPUT DC VOLTAGE 42V
CONSTANT CURRENT REGION Note.4 25.2 ~ 42V
RATED CURRENT 2.15A
RATED POWER 90.3W
RIPPLE & NOISE (max.) Note.2 200mVp-p
VOLTAGE TOLERANCE Note.3 ±4.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME Note.7 2000ms, 80ms / 115VAC at full load 1000ms, 80ms / 230VAC at full load
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC at full load
INPUT VOLTAGE RANGE Note.5 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.97/115VAC, PF>0.96/230VAC, PF>0.95/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
EFFICIENCY (Typ.) 91%
AC CURRENT (Typ.) 0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC
INRUSH CURRENT(Typ.) COLD START 70A/230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION OVER CURRENT Note.4 95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 47 ~ 53V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE 90°C ± 10°C (RTH2)
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -40 ~ +70°C (Refer to "Derating Curve")
SAFETY & EMC SAFETY STANDARDS UL8750, EN61347-1, EN61347-2-13 independent, J61347-1, J61347-2-13, IP67 approved ; Design refer to UL60950-1, TUV EN60950-1
OTHERS MTBF 301.6Khrs min. MIL-HDBK-217F (25°C )
DIMENSION 161*61*36mm (L*W*H)
PACKING 0.7Kg;20pcs/15Kg/0.73CUFT





36V smps led power supply Order Information:



Meanwell 42V Led Driver: LPF-90-42





Meanwell LED, Meanwell, LPF-90-42 Meanwell 42V Led Driver: LPF-90-42
