Specifications

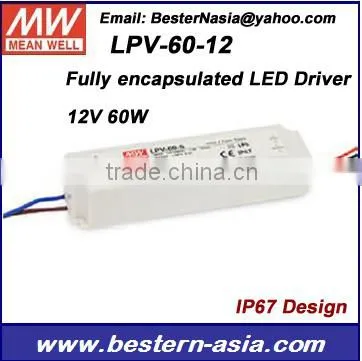

Meanwell LPV-60-12 12V the led waterproof power supply1. Waterproof power supply
2. Suitable for LED lighting and moving sign
Meanwell LPV-60-12 12V the led waterproof power supply
Meanwell 12V power supply Short Brief:
The led waterproof power supply Meanwell LPV-60-12 12V, IP67 waterproof, very sutaible to use outside, wet condition
Meanwell LPV-60-12 Warranty: 2 years
The LED Waterproof power supply Applications:
LED lighting
Moving sign applications
LED Strip Power Supply
LED Screen
LPV-60-12 Features:
1. Low cost, high reliability
2. Fully encapsulated with IP67 level
3. Class 2 power unit
4. Fully isolated plastic ca
5. 100% full load burn-in test
6. Pass LPS
Meanwell the LED Waterproof power Specification:
| MODEL | LPV-60-12 | |
| OUTPUT | DC VOLTAGE | 12V |
| CURRENT RANGE | 0 ~ 5A | |
| RATED CURRENT | 5A | |
| RATED POWER | 60W | |
| RIPPLE & NOISE (max.) Note.2 | 120mVp-p | |
| VOLTAGE TOLERANCE Note.3 | ±5.00% | |
| LINE REGULATION | ±1.00% | |
| LOAD REGULATION | ±2.00% | |
| SETUP, RISE TIME NOTE.6 | 500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 83% | |
| AC CURRENT (Typ.) | 1.2A/115VAC 1A/230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 60A/230VAC | |
| LEAKAGE CURRENT | 0.25mA / 240VAC | |
| PROTECTION | OVER CURRENT | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 13.8 ~ 16.2V | |
| Protection type : Shut down O/P Voltage,re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70°C (Refer to output load derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80°C , 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ± 0.03%/°C (0 ~ 50°C ) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for? 60min. each along X, Y, Z axes | |
| SAFETY &EMC(Note 4) | SAFETY STANDARDS | UL879(except for LPV-60-5), UL1310(except for LPV-60-5), CSA C22.2 No. 207-M89(except for LPV-60-5, LPV-60-48), |
| WITHSTAND VOLTAGE? | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms /500VDC/ 25°C/70% RH | |
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B | |
| HARMONIC CURRENT | Compliance to EN61000-3-2 Class A,EN61000-3-3 | |
| EMS | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A | |
| IMMUNITY | ||
| OTHERS | MTBF | 732Khrs min. MIL-HDBK-217F (25 ) |
| DIMENSION | 162.5*42.5*32mm (L*W*H) | |
| PACKING | 0.4Kg; 32pcs/13.8Kg/0.56CUFT | |
Order Information:
Meanwell power supply 24V LED LPV-60-24
Meanwell power supply 24V, Meanwell 24V LED, LPV60-24, Meanwell LPV-60-24, Power Supply LPV-60-24
