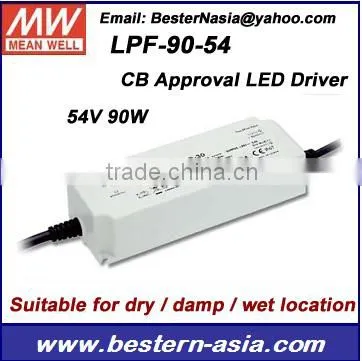

Meanwell 90W LED Driver 54V: LPF-90-54
Negotiable
MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Meanwell
Model Number:
LPF-90-54
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Meanwell Power Supply 24V LED LPV-60-24NegotiableMOQ: 20 Pieces -
Meanwell LPV-60-12 12V the Led Waterproof Power SupplyNegotiableMOQ: 20 Pieces
-
LPV-60-5 Meanwell 5V Waterproof Led DriverNegotiableMOQ: 20 Pieces
-
APV-25-5 Meanwell IP30 5V LED DriverNegotiableMOQ: 20 Pieces
-
Meanwell Low Cost 12V 25W LED Driver, APV-25-12NegotiableMOQ: 20 Pieces
Place of Origin
Guangdong, China
Brand Name
Meanwell
Model Number
LPF-90-54
Output Power
Other, 90W
Output Type
Single
Input Voltage
220V
Output Voltage
54V
Output Frequency
50-60HZ
Output Current
1.67A
Specifications
Meanwell 90W LED Driver 54V: LPF-90-541. Long life time, 3 year warranty
2. High Eff. 91%
3. Wide Input Range 90-305Vac
Meanwell 90W LED Driver 54V: LPF-90-54
Meanwell 90W Driver Features:
1. Active PFC Function
2. High efficiency to 91%
3. Universal AC input 90-305Vac
4. Protections: Short Circuit / Overload Current / Over Voltage / Over Temperature
5. Fully encapsulated
6. Fully isolated plastic case
LED Driver 54V Applications:
LED lighting
Moving sign applications
LED Strip Power Supply
LPF-90-54 Location appliance:
Suitable for dry / damp / wet locations
Meanwell LPF-90-54 Warranty: 3 years warranty
54V LED Driver LPF-90-54 Specification:
| MODEL | LPF-90-54 | |
| OUTPUT | DC VOLTAGE | 54V |
| CONSTANT CURRENT REGION Note.4 | 32.4 ~54V | |
| RATED CURRENT | 1.67A | |
| RATED POWER | 90.18W | |
| RIPPLE & NOISE (max.) Note.2 | 200mVp-p | |
| VOLTAGE TOLERANCE Note.3 | ±4.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME Note.6 | 2000ms, 80ms / 115VAC at full load 1000ms, 80ms / 230VAC at full load | |
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE Note.5 | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.97/115VAC, PF>0.96/230VAC, PF>0.95/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| EFFICIENCY (Typ.) | 91% | |
| PROTECTION | OVER CURRENT Note.4 | 95 ~ 108% |
| OVER VOLTAGE | 59 ~ 65V | |
| OVER TEMPERATURE | 90°C ± 10 °C (RTH2) | |
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70°C (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80°C , 10 ~ 95% RH | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.0-08(except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP67, J61347-1, J61347-2-13 |
| approved ; design refer to UL60950-1, TUV EN60950-1 | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25°C / 70% RH | |
| OTHERS | MTBF | 301.6Khrs min. MIL-HDBK-217F (25°C ) |
| DIMENSION | 161.5*61*36mm (L*W*H) | |
| PACKING | 0.7Kg;20pcs/15Kg/ 0.73CUFT | |
Ordering Code:
Meanwell 90W LED Driver 54V: LPF-90-54
Meanwell 90W, 90W LED Driver, LED Driver 54V, Meanwell LED Driver 54V, LPF-90-54, Meanwell LPF-90-54
