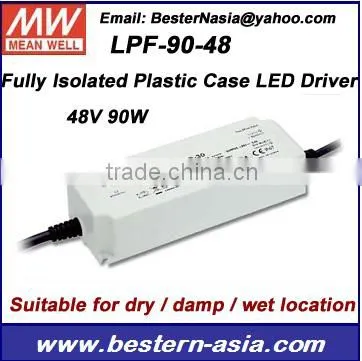

LED Meanwell Lpf-90 Driver: LPF-90-48
Negotiable
MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Meanwell
Model Number:
LPF-90-48
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Meanwell 90W LED Driver 54V: LPF-90-54NegotiableMOQ: 20 Pieces -
Meanwell Power Supply 24V LED LPV-60-24NegotiableMOQ: 20 Pieces
-
Meanwell LPV-60-12 12V the Led Waterproof Power SupplyNegotiableMOQ: 20 Pieces
-
LPV-60-5 Meanwell 5V Waterproof Led DriverNegotiableMOQ: 20 Pieces
-
APV-25-5 Meanwell IP30 5V LED DriverNegotiableMOQ: 20 Pieces
Place of Origin
Guangdong, China
Brand Name
Meanwell
Model Number
LPF-90-48
Output Power
Other, 90W
Output Type
Single
Input Voltage
220V
Output Voltage
48V
Output Frequency
50-60HZ
Output Current
1.88A
Specifications
LED meanwell lpf-90 driver: LPF-90-481. Active PFC Function
2. High efficiency
3. Isolated plastic case
4. Waterproof
LED meanwell lpf-90 driver: LPF-90-48
Meanwell LPF-90 Warranty: 3 years warranty
LED Meanwell Features:
1. Active PFC Function
2. High efficiency to 91%
3. Universal AC input 90-305Vac
4. Protections: Short Circuit / Overload Current / Over Voltage / Over Temperature
5. Fully encapsulated
6. Fully isolated plastic case
Driver LPF-90-48 Applications:
LED lighting
Moving sign applications
LED Strip Power Supply
Meanwell LPF-90-48 Location appliance:
Suitable for dry / damp / wet locations
LED LPF-90-48 Driver Specification:
| MODEL | LPF-90-48 | |
| OUTPUT | DC VOLTAGE | 48V |
| CONSTANT CURRENT REGION Note.4 | 28.8 ~48V | |
| RATED CURRENT | 1.88A | |
| RATED POWER | 90.24W | |
| RIPPLE & NOISE (max.) Note.2 | 200mVp-p | |
| INPUT | VOLTAGE RANGE Note.5 | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 91% | |
| PROTECTION | OVER CURRENT Note.4 | 95 ~ 108% |
| OVER VOLTAGE | 54 ~ 60V | |
| OVER TEMPERATURE | 90°C ± 10 °C (RTH2) | |
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70°C (Refer to "Derating Curve") |
| SAFETY | SAFETY STANDARDS | UL, CSA, TUV |
| Others | DIMENSION | 161.5*61*36mm (L*W*H) |
| PACKING | 0.7Kg;20pcs/15Kg/ 0.73CUFT | |
Ordering Code:
LED meanwell lpf-90 driver: LPF-90-48
LED Meanwell, Meanwell LPF-90, Driver LPF-90-48, led driver LPF-90-48, Meanwell Driver
