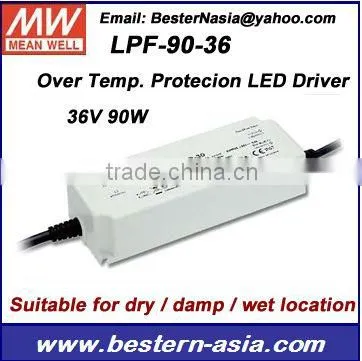

Meanwell 36v Smps Led Power Supply: LPF-90-36

Meanwell 36v Smps Led Power Supply: LPF-90-36 thumbnail-1
Meanwell 36v Smps Led Power Supply: LPF-90-36 photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Meanwell
Model Number:
LPF-90-36
Contact Supplier Request Quote Chat Now
Besternasia Electronics Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Meanwell
Model Number LPF-90-36
Output Power Other, 90W
Output Type Single
Input Voltage 220V
Output Voltage 36V
Output Frequency 50-60HZ
Output Current 2.5A

Specifications

Meanwell 36v smps led power supply: LPF-90-36
1. Fully isolated plastic case
2. Class 2 Power Unit
3. 91% Eff.
4. UL, CE lis

Meanwell 36v smps led power supply: LPF-90-36



36V smps led power supply Location appliance:



Suitable for dry / damp / wet locations





Meanwell LED power supply Warranty:   3 years warranty





LPF-90-36 Features:



1. Universal AC input 90-305Vac
2. Active PFC Function
3. High efficiency to 91%



4. Protections: Short Circuit / Overload Current / Over Voltage / Over Temperature



5. Fully isolated plastic case
6. Fully encapsulated



7. Waterproof IP67 level



8.  Comliance to worldwide safty regulations for lighting







Meanwell LED Power Supply Applications:



LED lighting

Moving sign applications

LED Strip Power Supply







 36V smps led power supply Specification:



MODEL LPF-90-36
OUTPUT DC VOLTAGE 36V
CONSTANT CURRENT REGION Note.4 21.6 ~36V
RATED CURRENT 2.5A
RATED POWER 90W
INPUT VOLTAGE RANGE Note.5 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.97/115VAC, PF>0.96/230VAC, PF>0.95/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
EFFICIENCY (Typ.) 91%
AC CURRENT 0.95A / 115VAC 0.5A / 230VAC 0.4A /277VAC
INRUSH CURRENT (Typ.) COLD START 55A(twidth=435£gs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION OVER CURRENT Note.4 95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Null
OVER VOLTAGE 41 ~ 46V
Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE 90°C ± 10 °C (RTH2)
Protection type : Shut down o/p voltage, re-power on to recover
SAFETY & EMC SAFETY STANDARDS

UL, CSA, TUV, IP67
OTHERS MTBF 301.6Khrs min. MIL-HDBK-217F (25°C )
DIMENSION 161.5*61*36mm (L*W*H)
PACKING 0.7Kg;20pcs/15Kg/ 0.73CUFT







36V smps led power supply Order Information:





Meanwell 36v smps led power supply: LPF-90-36



Meanwell LED Power Supply, LPF-90-36, 36V smps led power supply
