LPF-90-30 30V Meanwell Powersupplies for LED

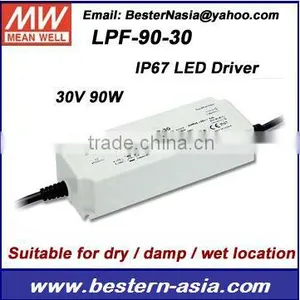

LPF-90-30 30V Meanwell Powersupplies for LED thumbnail-1
LPF-90-30 30V Meanwell Powersupplies for LED photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Meanwell
Model Number:
LPF-90-30
Contact Supplier Request Quote Chat Now
Besternasia Electronics Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Meanwell
Model Number LPF-90-30
Output Power Other, 90W
Output Type Single
Input Voltage 220V
Output Voltage 30V
Output Frequency 50-60HZ
Output Current 3A

Specifications

LPF-90-30 30V meanwell powersupplies for LED
1. Waterproof for lighting/moving sign
2. High Eff. up to 91%
3. Short Circut pr

LPF-90-30 30V meanwell powersupplies for LED





LPF-90-30 Applications:



LED lighting

Moving sign applications

LED Strip Power Supply







LPF-90-30 Meanwell Warranty:   3 years warranty





Meanwell powersupplies Location appliance:





Suitable for dry / damp / wet locations







30V  led strip power supply  Features:



1. Universal AC input 90-305Vac
2. Active PFC Function
3. High efficiency to 91%

4. Protections: Short Circuit / Overload Current / Over Voltage / Over Temperature

5. Fully isolated plastic case
6. Fully encapsulated

7. Waterproof IP67 level

8.  Comliance to worldwide safty regulations for lighting





LPF-90-30 LED Power Supply Specification:



MODEL LPF-90-30
OUTPUT DC VOLTAGE 30V
CONSTANT CURRENT REGION Note.4 18 ~30V
RATED CURRENT 3A
RATED POWER 90W
RIPPLE & NOISE (max.) Note.2 200mVp-p
VOLTAGE TOLERANCE Note.3 ±4.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME Note.6 2000ms, 80ms / 115VAC at full load 1000ms, 80ms / 230VAC at full load
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC at full load
INPUT VOLTAGE RANGE Note.5 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.97/115VAC, PF>0.96/230VAC, PF>0.95/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
EFFICIENCY (Typ.) 91%
ENVIRONMENT WORKING TEMP. -40 ~ +70°C (Refer to "Derating Curve")
SAFETY & EMC SAFETY STANDARDS

UL, CSA  IP67,TUV
OTHERS MTBF 301.6Khrs min. MIL-HDBK-217F (25°C )
DIMENSION 161.5*61*36mm (L*W*H)
PACKING 0.7Kg;20pcs/15Kg/ 0.73CUFT







30V LED Power Supply Order Information:





LPF-90-30 30V meanwell powersupplies for LED



Meanwell Powersupplies,  LPF-90-30, LPF-90-30 Meanwell, 30V Meanwell power, Powersupplies for LED, Meanwell power LED.
