Home > Products > Force Gauge/Test Stand > Manual Spiral Test Support Side Hand Wheel 1000N Digital Scale Guage ASC-S-1000N
Manual Spiral Test Support Side Hand Wheel 1000N Digital Scale Guage ASC-S-1000N
- 3000 Unit / Units per Month
- Shanghai
- T/T Credit Card PayPal
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Sunlight | Model Number: | ASC-S-1000N |
Power: | Other, Manual | Usage: | Strength Testing Machine |
Product Description
Applications:
ASC manually-operated vertical side-shaking test stand is specially outfitted with HF series and NK Series force meters, which can be combined into test machine stands for different applications, being applied to a variety of tests of plug & pull force, pressing force, destruction testing, etc. and other tests.
It not only can display the force value, but also can at the same time be installed digital measuring scale, displaying the displacement, and performing the contrast tests of different parts under the same displacement.
Features:
The machine stand base is large and stable, which is suitable for indoor testing on the desktop.
It is driven by the screw, and its gauge head displacement is accurate, with the side hand wheel loading, and the simple and stable operation.
The mobile platform of the base owning the standard layout can realize left, right, forward and backward movement, with convenient and accurate clamping.
The machine stand can be installed in the table (desk) to use, having more solid machine frame.
It is equipped with digital gauge, which enables it to collect the stroke data collection whenever necessary.

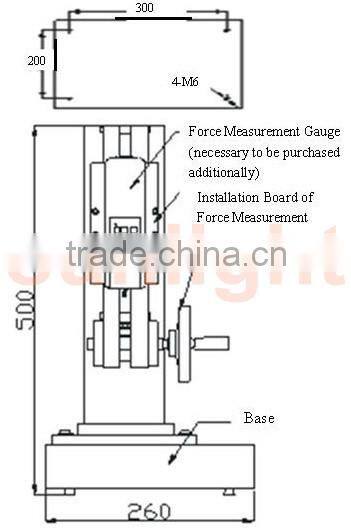

Specification:
Model | ASC-J-500N | ASC-S-500N | ASC-J-1000N | ASC-S-1000N |
Max Load | 500N | 500N | 1000N | 1000N |
Effective Stroke | 180mm | 180mm | 180mm | 180mm |
Guage | No | Digital | No | Digital |
Dimension | 260*360*560mm | 260*360*560mm | 260*360*560mm | 260*360*560mm |
Net Weight | 18kg | 18kg | 21kg | 21kg |
