Help CenterTM-1017 400A True-RMS AC Power Clamp Meter
Related Products

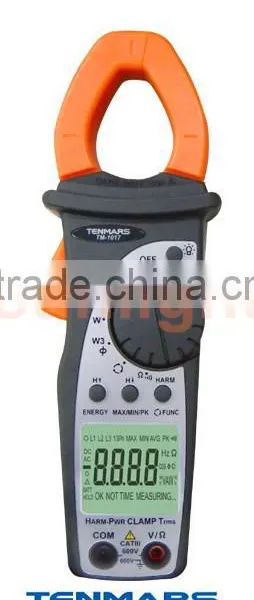

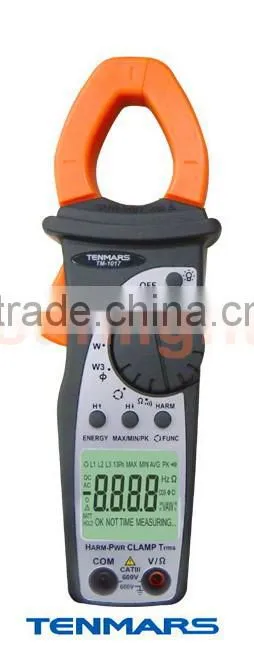

TM-1017 400A True-RMS AC Power Clamp Meter Phase Rotation
Description:
CAT III 600V
Maximum conductor size 30mm.
Display counts: 4000.
Measures: ACV, DCV, ACA.
Measures Phase Sequence.
Voltage/Current Harmonics to 25th with THD.
W3ø, HV, HA, Phase SEQ, Audible continuity tests.
Frequency to 400Hz.
Active, Reactive, Apparent power/ energy on.
Power Factor, cosø on Single/Three phase systems.
Phase sequence.
Specification:
Maximum Current |
400 Amps |
Display Counts |
10000 (Backlit LCD display) |
Maximum Conductor Size |
30mm |
AC Current Range |
0.1A to 400A, ±(1.0% of rdg + 3 dgts) |
AC Voltage Range |
0.1V to 599.9V, ±(1.0% of rdg + 3 dgts) |
DC Voltage Range |
0.1V to 599.9V, ±(1.0% of rdg + 3 dgts) |
Resistance |
0.1 ohm to 1999 ohms ±(1.0% + 5 dgts) |
Continuity Buzzer |
Yes |
Frequency |
40Hz to 399.9 Hz ±(0.5% + 1 dgt) |
Bargraph |
Yes |
Autoranging |
Yes |
Auto Power Off |
Yes |
Peak Hold |
Yes |
Data Hold |
Yes |
Min/Max |
Yes |
Power Supply |
2 1.5V type 'AAA' batteries |
Dimensions |
205mm (L) x 64mm (W) x 39MM (D) |
Weight |
280g approx. including batteries |
