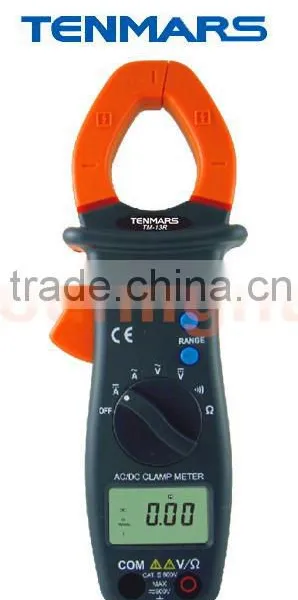

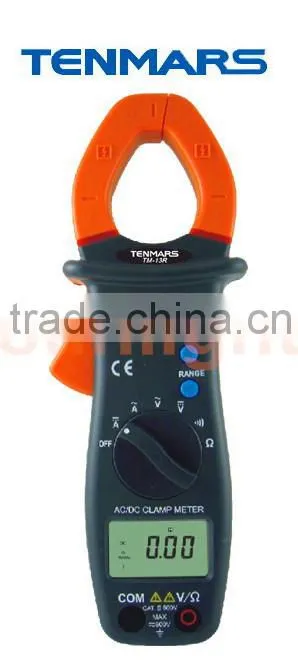

Help CenterTM-13E 400A AC/DC Clamp Meter
Related Products
TM-13E AC-DC Clamp Meter
Description:
CAT III 600V
3-3/4 digit LCD with Analog Bargraph.
Display Counts: 4000.
Low battery indication.
Auto Ranging.
Data Hold and Range Hold Auto Zero.
Test Ranges: ACV, ACA, DCV, DCA, Resistance, Continuity.
Maximum conductor size 30mm.
Continuity test below 40 ohms, buzzer will sound.
Auto Power off.
Specification:
Maximum Current |
400 Amps |
Display Counts |
4000 |
Maximum Conductor Size |
30mm |
AC Current Range |
10mA to 400A, ±(2.0% of rdg + 10 dgts) |
AC Voltage Range |
0.1mV to 600V, ±(1.0% of rdg + 3 dgts) |
DC Voltage Range |
0.1mV to 600V, ±(0.8% of rdg + 2 dgts) |
DC Current |
10mA to 400A, ±(2.0% of rdg + 10 dgts) |
Continuity Buzzer |
Yes |
Data Hold |
Yes |
Resistance |
0.1 ohm to 400 ohms ±(1.0% + 3 dgts) |
Dimensions |
195mm (L) x 64mm (W) x 30MM (D) |
Weight |
245g |
