CTG 80/100 Permanent Magnetic Separator Pulley for Refractory

Specifications

  CTG  Permanent Magnetic separator pulley for refractory :

1. Model:CTG series

2. Pulley Diameter: 320-1250mm

3. Suitable Belt: 400-1400mm

4. Capacity: 1-250t/h

5. Separate magnetite, hematite etc

Application of  Permanent Magnetic separator pulley for refractory :

It is to be installed at the end of belts to remove the iron materials from river sand, hard coke, ore materials and other mining materials. It is widely applied in the refining and mining industries.

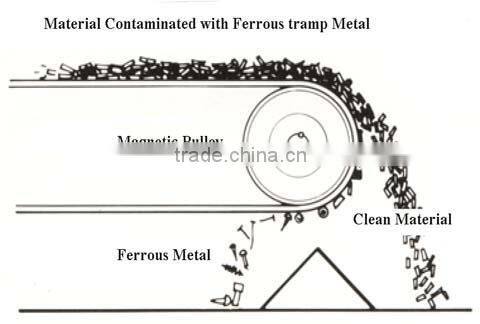

Working principle of Permanent Magnetic separator pulley for refractory :

When the forrous metal material passed over the magnetic pulley,ferrous metal is attracted to the magnetic pulley and remain on the belt until the belt moves away from the pulley. non ferrous material is unaffected and falls into the cleaned material flow.

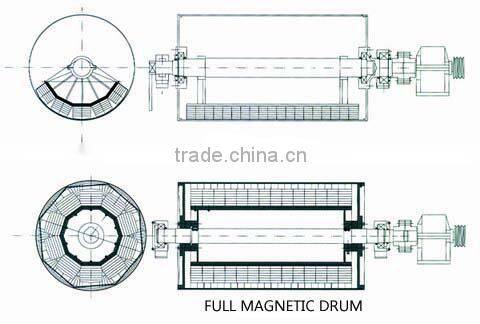

Semi-magnetic pulley and 360° magnetic pulley:

Features of Permanent Magnetic separator pulley for refractory :

1)Simple structure, convenient use, reliable operation.

2) High intensity of winchdrum ,reasonable arrange of magnetic pole,high efficiency of magnetic flip.

3) It can pre-select and discard the waste rock which mixed in the ore and reclaim the discard mineral largely.

4) The device can be used with conveyor belt, can also be individually packed into magnetic separator.

5) The magnetic field intensity of the groove drum can according to the customer’s requirement

Technical parameters of  Permanent Magnetic separator pulley for refractory :

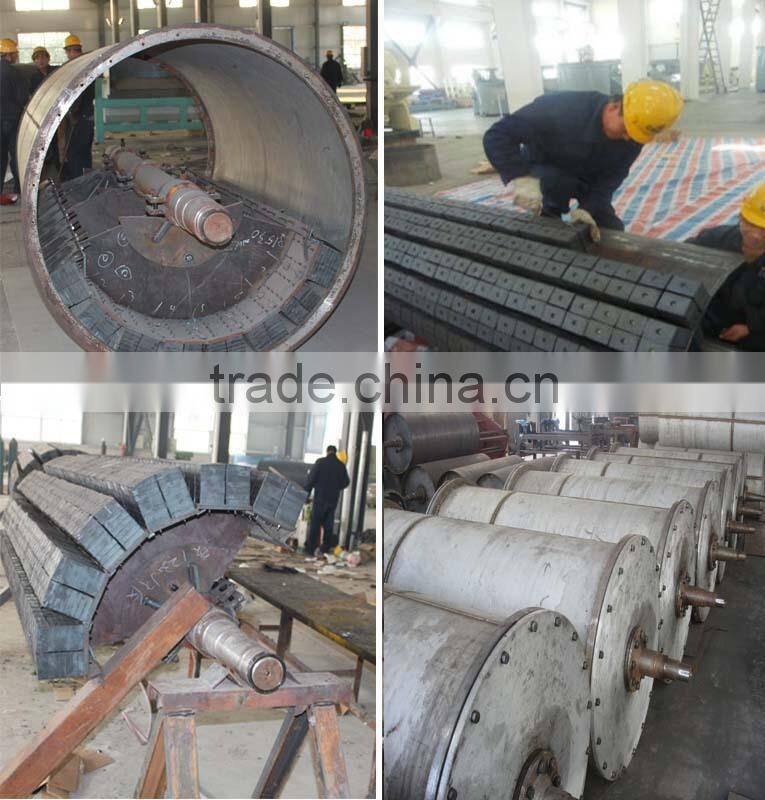

Assembling Process of Permanent magnetic separation rotary drum :

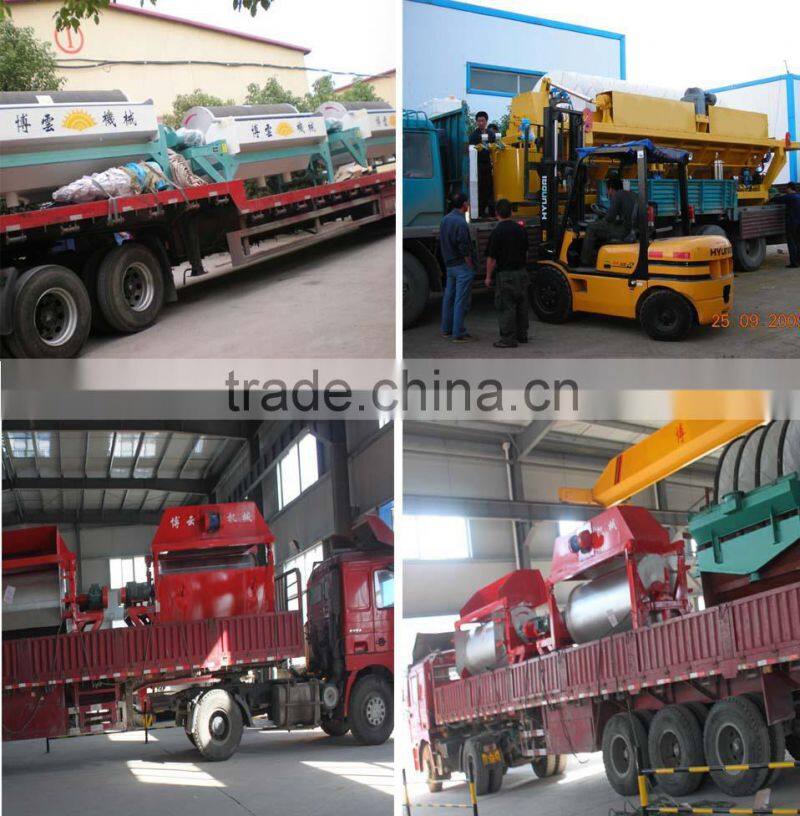

Delivery site:

Why choose BOYUN company?

Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide 1-years warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

In order to give you a responsible quotation, you can inform us the following information:

1. What’s the material you are going to deal with?

2. What’s the granularity of the material?

3. What’s the granularity of the final products are you going to achive?

4. What’s the producing capacity you are going to achieve?

Our engineers will suggest you the most suitable one for you according to your information.

If you have any other questions about our products, you may contact Eric through skype: hyrwl2006 or mobile cell: 0086 13912187643.
