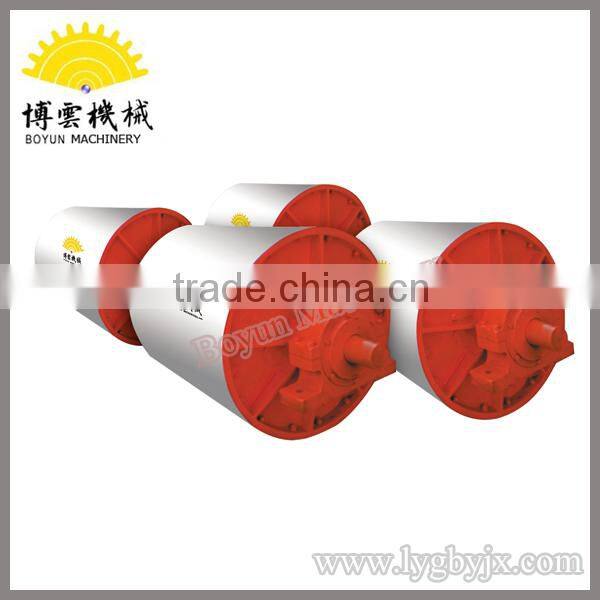

Rail undressed ore magnetic pulley

standard packing

Specifications

 Rail undressed ore magnetic pulley :

1. Model:CTG series

2. Pulley Diameter: 320-1250mm

3. Suitable Belt: 400-1400mm

4. Capacity: 1-250t/h

5. Separate magnetite, hematite etc

Application

They are widely used in metallurgy, abrasive, corundum, non metallic minerals, refractory materials, mine, food, chemical industry, glass, building materials and so on. (Semi magnetic and magnetic structures) They are used to purify the powdered, granular and bulk materials, or to recycle iron. They play a reliable function by preventing crushers, grinders and pressers from wearing and being broken. They can satisfy the major users’ requirements of removing iron large-deep in strong magnetic field.

Advantages of magnetic pulley

1. Convenient installation
2. Strong suction
3. No energy consumption
4. Continuous working
5. Simple operation

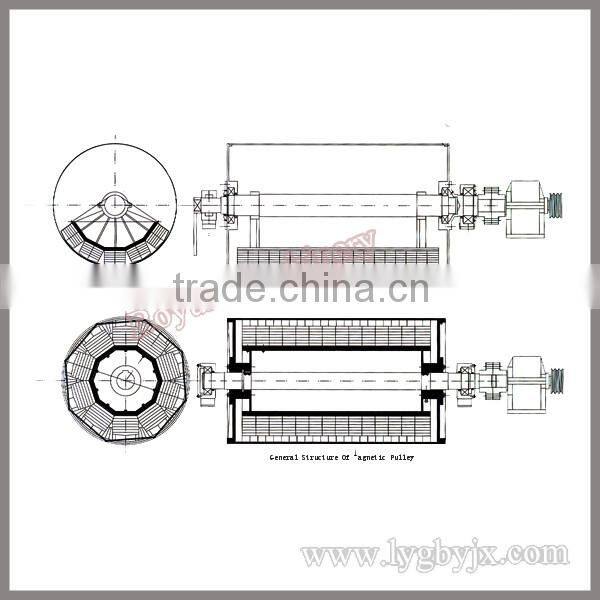

Working Principle of magnetic pulley

The magnetic pulley is made of high quality stainless steel & high B content of rare earth. It can be installed to the motor, which is equipped on the conveyor system, so that the magnetic pulley and conveyor belt form the magnetic splitter. The material contains ferrous will be separated from minerals as a result of the magnetism of the drum when the mineral contains ferrous comes through magnetic splitter.

About Us:

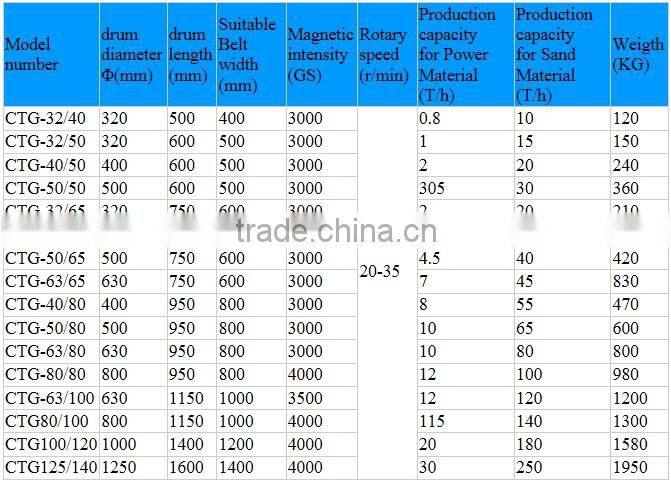

Technical parameters of magnetic pulley :

Why choose BOYUN company?

Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide 1-years warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

In order to give you a responsible quotation, you can inform us the following information:

1. What’s the material you are going to deal with?

2. What’s the granularity of the material?

3. What’s the granularity of the final products are you going to achive?

4. What’s the producing capacity you are going to achieve?

Our engineers will suggest you the most suitable one for you according to your information.
