Wet Magnetic Drum Separator Iron for Ore Slurry Benification and Separation

Wet Magnetic Drum Separator Iron for Ore Slurry Benification and Separation thumbnail-1

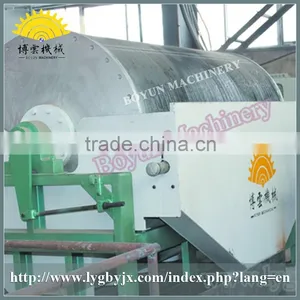

Wet Magnetic Drum Separator Iron for Ore Slurry Benification and Separation thumbnail-2

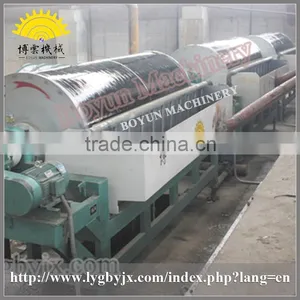

Wet Magnetic Drum Separator Iron for Ore Slurry Benification and Separation thumbnail-3

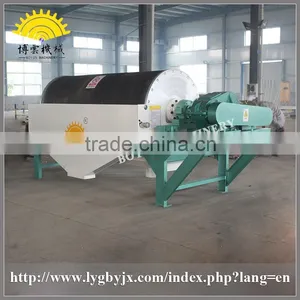

Wet Magnetic Drum Separator Iron for Ore Slurry Benification and Separation thumbnail-4

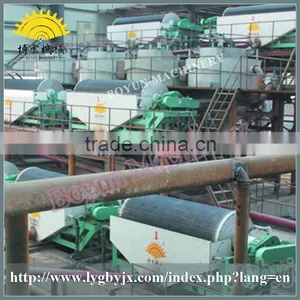

Wet Magnetic Drum Separator Iron for Ore Slurry Benification and Separation thumbnail-5
Wet Magnetic Drum Separator Iron for Ore Slurry Benification and Separation photo-1
Wet Magnetic Drum Separator Iron for Ore Slurry Benification and Separation photo-2
Wet Magnetic Drum Separator Iron for Ore Slurry Benification and Separation photo-3
Wet Magnetic Drum Separator Iron for Ore Slurry Benification and Separation photo-4
Wet Magnetic Drum Separator Iron for Ore Slurry Benification and Separation photo-5
US$ 5,280 - 48,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Magnetic Separator
Production Capacity:
1-220t/h
Contact Supplier Request Quote Chat Now
Lianyungang Boyun Machinery Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Lianyungang Shanghai Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Magnetic Separator
Production Capacity 1-220t/h
Place of Origin Jiangsu, China
Brand Name BoYun
Model Number CTB-918
Voltage 380v or customize
Power(W) 4000
Dimension(L*W*H) D900*L1800mm
Weight 2900kg
Certification ISO9001:2008
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas



 High Quality Wet Magnetic Separator Used in Mining for Iron Choose and Separation

1. Model Name: CTB(N,S)
2. Usage: Mineral Separation, Coal Washing, Chemical Sectors
3. Magnetic Induction Intensity: 120-240 mT
4. Shell Diameter: 400-1500mm
5. Capacity: 3-220 ton/hr



The Scope of Application
It is widely used in mineral separation, coal washing and chemical sectors for wet classifying strong magnetic mineral of size 0-6mm, and the mineral are divided into two kinds of products: magnetic and non-magnetic material. The specific susceptibility of its separating strong magnetic minerals should be no less than 3000*10-6cm/g, which belongs to this type of minerals are magnetite, magnetic pyrite etc.

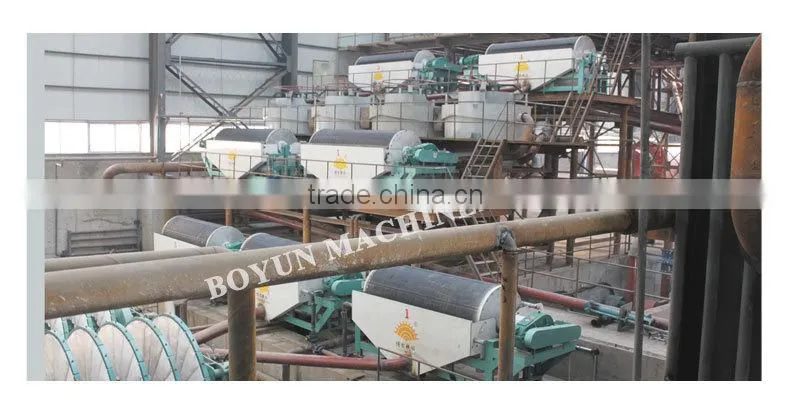

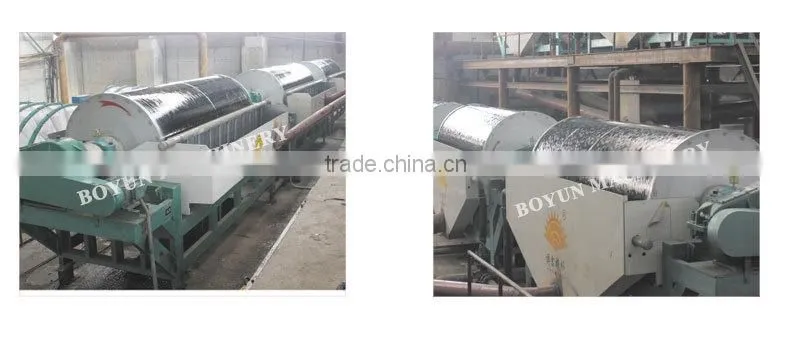

 Working site



Wet Magnetic Drum Separator iron for ore slurry benification and separation

Wet Magnetic Drum Separator iron for ore slurry benification and separation



Wet Magnetic Drum Separator iron for ore slurry benification and separation

Technical Parameter

model

Drum size(Diameter×Length)(mm)

Magnetic induction strength of magnetic surface(mT)

Disposal capacity

Power(KW)

Rotary speed(r/min)

weight(KG)

Geometric center value

Of pole

Average value of sweeping field

The highest magnetic induction intensity

T/h

M3/h

CTS(N/B)-46

400×600



130

240

1-3

5

1.1

45

600

CTS(N/B)-66

600×600



145

240

1-10

16

1.1

40

750

CTS(N/B)-69

600×900



145

240

8-5

24

1.1

40

830

CTS(N/B)-612

600×1200



145

240

10-20

32

2.2

40

990

CTS(N/B)-618

600×1800



145

240

15-30

48

2.2

40

1330

CTS(N/B)-712

750×1200

120

155



15-30

48

3

35

1500

CTS(N/B)-718

750×1800

120

155

240

20-45

72

3

35

2100

CTS(N/B)-918

900×1800

148

165

240

25-55

90

4

28

2900

CTS(N/B)-924

900×2400

148

165

240

35-70

110

4

28

3500

CTS(N/B)-1028

1050×1800

148

165

240

40-75

120

5.5

22

4000

CTS(N/B)-1021

1050×2100

148

165

240

45-88

140

5.5

22

4500

CTS(N/B)-1024

1050×2400

148

165

240

52-100

130

5.5

22

5000

CTS(N/B)-1030

1050×3000

160

240

240

65-125

200

7.5

22

6200

CTS(N/B)-1218

1200×1800

148

165

240

47-90

140

5.5

19

5800

CTS(N/B)-1224

1200×2400

148

165

240

82-120

192

7.5

19

6200

CTS(N/B)-1230

1200×3000

148

165

240

80-150

240

7.5

19

6200

CTS(N/B)-1530

1500×3000

180

240

240

90-170

270

11

14

8100

CTS(N/B)-1540

1500×4000

180

240

240

115-220

350

11

14

9300



 Product Features

  1. Simple structure
  2. Large Processing Capacity
  3. Convenient operation
  4. Easy maintenance



 Three kinds launders

The one cylinder can be equipped with three types of tank, namely downstream launder, countercurrent launder and semi-countercurrent launder.

Wet Magnetic Drum Separator iron for ore slurry benification and separation

 Wet Magnetic Drum Separator iron for ore slurry benification and separation

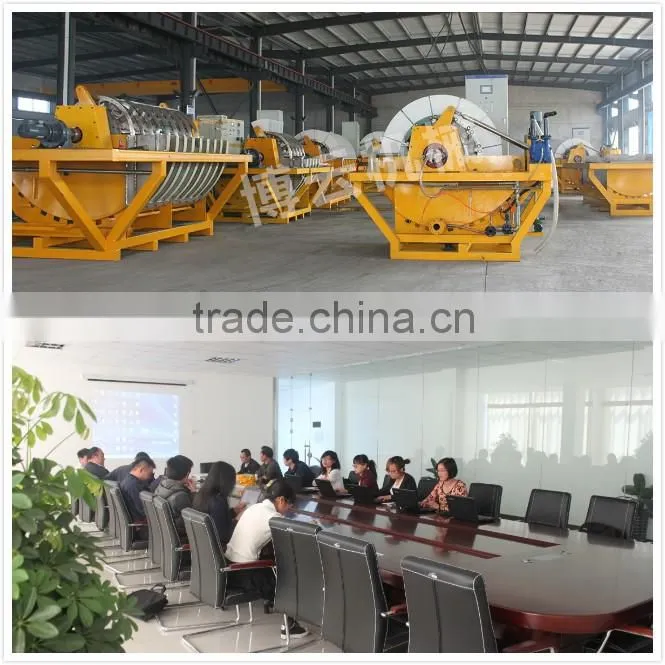

About us & Certificate

Wet Magnetic Drum Separator iron for ore slurry benification and separation







 Questions



1.what is the raw material do you want to process?

2.The hightest magnetic intensity of raw material?

3.Partical size and concentration of raw material?



 Any requirements and questions please fell free to contact us:+86-1806231205718052312057, Whatsapp:+86-18052312057
