2016 Pikes Functional Commercial Use Fiberglass Side Mounted Sand Filter

2016 Pikes Functional Commercial Use Fiberglass Side Mounted Sand Filter thumbnail-1
2016 Pikes Functional Commercial Use Fiberglass Side Mounted Sand Filter photo-1
US$ 600 - 1,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PIKES/ EMAUX
Model Number:
H Series
Contact Supplier Request Quote Chat Now
Guangzhou Vigor Health Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name PIKES/ EMAUX
Model Number H Series

Functional Commercial pikes fiberglass sand filter

Functional Commercial Water Well Sand Filter
1.Large filtration
2.Aquarium
mercial pool
4.Large scale water feature

  • Description

EMAUX's "H" Series bobbin wound commercial filter is for high demand in filtration suiface area especially for commercial purpose with long life and minimal servicing.Suitable for large scale water features, aquarium and commercial pool.



  • Technical Information



♥Service manhole for easy maintenance.



♥Inner filtration system with evenly spread laterals enhance filtration performance.

♥Equipped with manometer for easy inspection of the working pressure of both inlet

  • Technical characteristics



H1200-1.9  ¢1.2m*1.9m Length Horizontal Sand Filter.¢ 4" Flange in/outlet. (1.96m2/h)



H1200-2.3  ¢ 1.2m*2.3m Length Horizontal Sand Filter.¢ 6" Flange in/outlet. (2.42m2/h)



H1200-2.5  ¢ 1.2m*2.5m Length Horizontal Sand Filter.¢ 6" Flange in/outlet. (2.65m2/h)



H1200-2.7  ¢ 1.2m*2.7m Length Horizontal Sand Filter.¢ 6" Flange in/outlet. (2.87m2/h)



H1200-3.0  ¢ 1.2m*3.0m Length Horizontal Sand Filter.¢ 6" Flange in/outlet. (3.21m2/h)



H1400-1.9  ¢ 1.4m*1.9m Length Horizontal Sand Filter.¢ 4" Flange in/outlet. (2.23m2/h)



H1400-2.5  ¢ 1.4m*2.5m Length Horizontal Sand Filter.¢ 6" Flange in/outlet. (3.02m2/h)



H1400-3.0  ¢ 1.4m*3.0m Length Horizontal Sand Filter.¢ 6" Flange in/outlet. (3.67m2/h)



H1600-1.9  ¢ 1.6m*1.9m Length Horizontal Sand Filter.¢ 4" Flange in/outlet. (2.47m2/h)



H1600-2.5  ¢ 1.6m*2.5m Length Horizontal Sand Filter.¢ 6" Flange in/outlet. (3.36m2/h)



H1600-3.0  ¢ 1.6m*3.0m Length Horizontal Sand Filter.¢ 6" Flange in/outlet. (4.10m2/h)

  • Highlight Features
a.Non-corrosive fiberglass and resin.
b.UV resistance,suitable for operation under prolong sunlight.
c.Max operating pressure 36psi(2.5bar)/56psi(4.0bar).
d.Max temperature of 43°C(109°F).
e.Maximum filtration velocity:50m³/h/m².
f.Suggested size of media:0.5-0.8mm sand and 1-2mm gravel.



  • Pictures

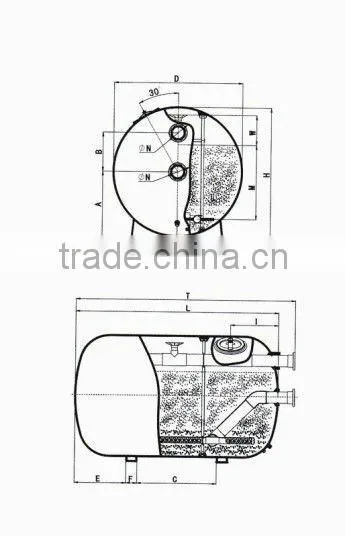

2016 pikes Functional Commercial use fiberglass Side Mounted sand filter

2016 pikes Functional Commercial use fiberglass Side Mounted sand filter
