NL Series Commercial Sand Filter Water Treatment for Swim Pool/large Sand Filter

NL Series Commercial Sand Filter Water Treatment for Swim Pool/large Sand Filter thumbnail-1
NL Series Commercial Sand Filter Water Treatment for Swim Pool/large Sand Filter photo-1
US$ 50 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PIKES/ EMAUX
Model Number:
NL Series
Contact Supplier Request Quote Chat Now
Guangzhou Vigor Health Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name PIKES/ EMAUX
Model Number NL Series

   NL Series Commercial sand filter water treatment for swim pool/large sand filter

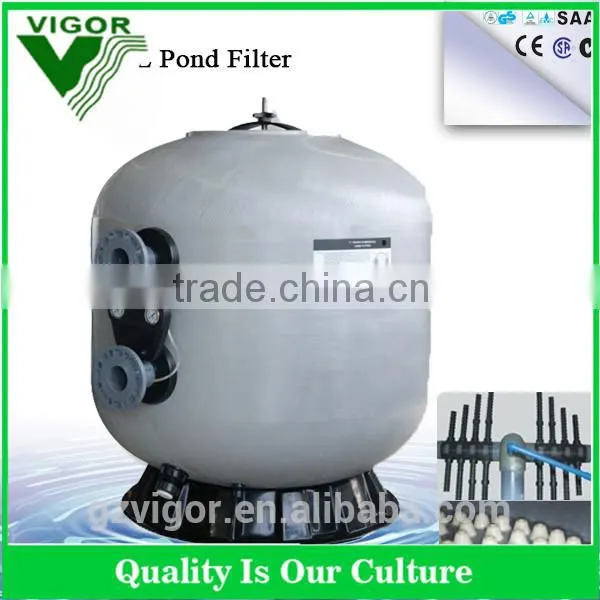

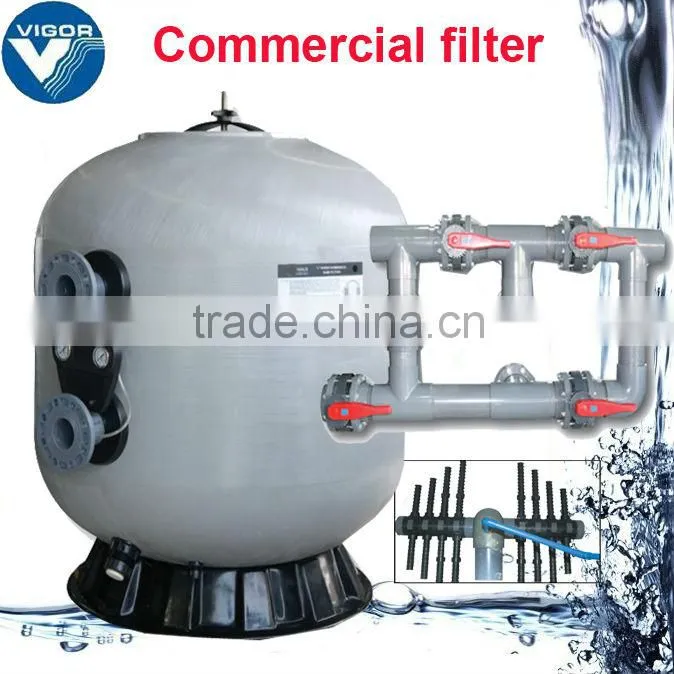

                                                 NL Series Fiberglass Sand Filter Machine

                                                                     1.OEM

                                                                 2.Side mount

                                                         3.Easy installation,long life

                                                    4.Non-corrosive,UV resistance         NL Series Commercial sand filter water treatment for swim pool/large sand filter

  • Features

♥Made of fiberglass

♥Material used are non-corrosive

♥Sight glass and manhole are available in option

♥UV-resitance surface allows the filter to work under direct sunlight

♥ Laterals with fine gaps are able to keep out filter media and dirt particles

♥Automatic air release system enables easy release of trapped air during opetation of the filter

  • Technical Characteristics

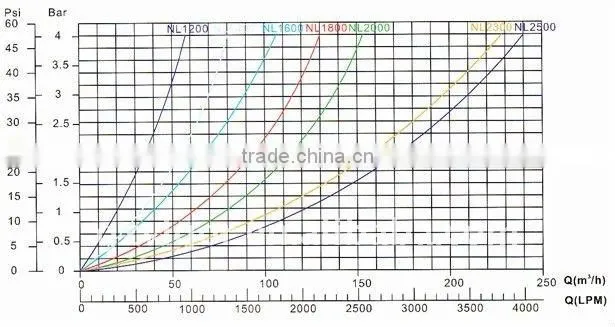

NL1200,1.11 sq meter(filter area),3’’/90mm(valve connections),55.2 cbm/h(flow rate),900kg(sand)
NL1400,1.54 sq meter(filter area),4’’/110mm(valve connections),76.8 cbm/h(flow rate),1350kg(sand)
NL1600,2.06 sq meter(filter area),4’’/110mm(valve connections),102 cbm/h(flow rate),2300kg(sand)
NL1800,2.52 sq meter(filter area),6’’/160mm(valve connections),124.8 cbm/h(flow rate),2900kg(sand)
NL2000,2.97 sq meter(filter area),6’’/160mm(valve connections),147 cbm/h(flow rate),4000kg(sand)
NL2300,4.43 sq meter(filter area),8’’/200mm(valve connections),219 cbm/h(flow rate),6000kg(sand)
NL2500,4.89 sq meter(filter area),8’’/200mm(valve connections),240 cbm/h(flow rate),6700kg(sand)
  • Functions
1.Size of silica sand: 0.5-0.8mm
2.Maximum water temperature: 43 degree
3. Maximum filtration velocity: 50m3/h/m2
4. Factory testing pressure:400kPa/58psi/ 4.0bar OR 600kPa/86psi/ 6.0bar
5. Maximum working pressure:250kPa/ 36psi/ 2.5bar OR  400kPa/ 58psi/ 4.0bar



NL Series Commercial sand filter water treatment for swim pool/large sand filter

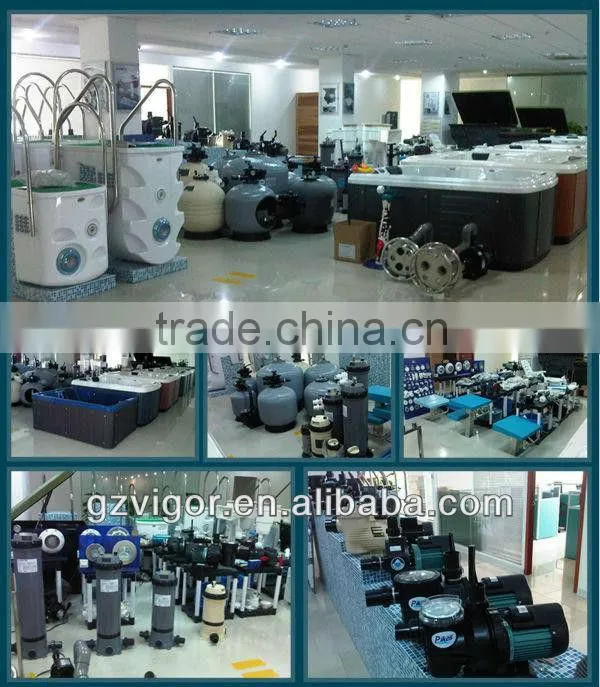

Our Showroom

 NL Series Commercial sand filter water treatment for swim pool/large sand filter
