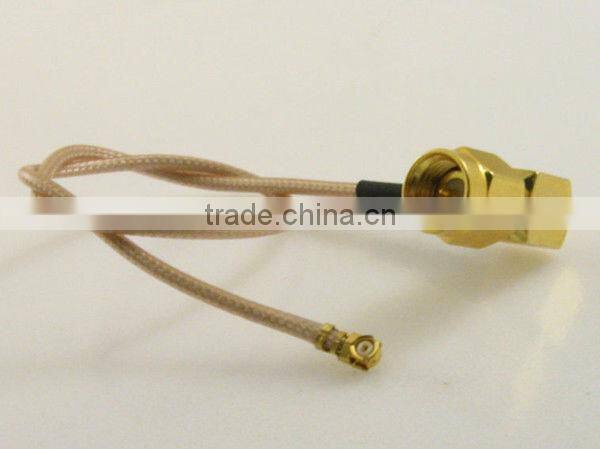

UFL IPEX to SMA RF Jumper Cable RG178 / 1.32mm / 1.13mm / 0.81mm

IPEX MHF connector:

Mechanical Characteristics
ELECTRICAL DATA
Impedance	50Ω
Frequency range	DC-6Ghz
VSWR	1.3 max
ENVIRONMENTAL DATA
Temperature range	-40°C to +90°C
MATERIAL DATA
Bodies	Brass--gold plating
Pin contacts	Brass--gold plating
Socket contacts	Copper-beryllium alloy--Au plating
Insulator	PTFE
Connector brand	IPEX/HRS
Cable type	1.78mm,1.37mm,1.32mm,1.13mm,0.81mm etc
Application	smartphone,tablet PC,wifi antenna,GPS antenna, etc

SMA connector:

Mechanical Characteristics
ELECTRICAL DATA
Impedance	50Ω
Frequency range (for connector interface)	DC~18GHz
VSWR	1.25 max
Dielectric withstanding voltage (at sea level)	≥750-1500V,50Hz (depending on cable)
Working voltage (at sea level)	≥250-500V,50Hz (sea level) / ≥65-125V,50Hz (Height 21000M)
Insulation resistance	≥ 5000 mΩ
Contact resistance	Inner conductor: ≤3mΩ
Contact resistance	Outer conductor: ≤2.5mΩ
RF leakage(2-3GHZ)	Flexible: ≥60dB
RF leakage(2-3GHZ)	Semi-rigid cable: ≥100dB

MECHANICAL DATA
Coupling nut torque	0.8Nm--1.1Nm / 7.1 in.lbs--9.7 in.lbs
Coupling nut retention force	≥270N / 60.7 lbs
Contact captivation axial	≥27N / 6.1 lbs
Durability (matings)	≤500

ENVIRONMENTAL DATA
Temperature range	-65°C to +165°C

MATERIAL DATA
Bodies, outer contacts	Stainless steel--Passivation
Pin contacts	Brass/Beryllium copper--Au plating
Socket contacts	Beryllium copper / Phosphor bronze--Au plating
Crimp ferrules	Brass--Au plating
Insulator	PTFE
Gaskets	Silicone rubber

Cable type:

RG178,RG174,1.37mm,1.32mm,1.13mm,0.81mm etc

Twinlink's Advantages
1.Established in 2007
2.Reliable performance
3.OEM/ODM service available
4.Perfect production management system(ISO9001,ISO14001)
5. Experienced R&D staff
6.Samples trial order available
7.All Goods will be tested before shipping
8.International series:4.1/9.5,MMCX,MCX,SMA,SMB,SMC,N,7/16,F,BNC,UHF,SHV, QMA,BMA,TNC series etc available for you.
9.Main cooperated clients:Andrew(USA),KMW(Korea),Galtronics Group (Israel),TATFOOK(China mainland),Laird(Malaysia) etc.

How to order RF coaxial connectors
Twinlink is a professional and experienced RF connector products manufacturer since 2007. Just show me your drawing ,sample or indicated details, we will produce it for you effectively. Or pls kindly send us your specific engineering parameters such as PIM,V.S.W.R,plating,etc.And we will discuss with you about the details.

Certifications approved
RoHS,SGS,ISO9001:2008,ISO14001

Quality Control
Twinlink is also highly regarded as a quality manufacturer, with precision testing and inspection equipment. Twinlink has already achieved ISO 9001:2008 and ISO14001: 2004 cetification, and all of our products comply with RoHS requirements.
Minimum Testing Standard
1. Waterproof Testing: IP68 grade, drop into 1 metre deep water, and take it out after 24 hours later, there is no water seepage indication arriving. 2. Salt Mist Testing 5% concentration salt mist testing standard Au plated, minimum 96 hours Ag plated, minimum 72 hours CuSnZn3 plated, minimum 336 hours 3. Aging testing aging temperature minimum 85 degree, take it out after 24 hours later, the mechanical characteristics in the standard range

Normal Packing Selective
1.poly bag + Carton 2.Tray + Carton 3.Vacuumize + poly bag + Carton 4.Customized
