IPEX / U.FL to SMB Plug Bulkhead Connector RF Pigtail Cable

Name: IPEX / U.FL to SMB Plug Bulkhead Connector RF Pigtail Cable
Brand: Twinlink
SKU: 131140171

US$ 0.1 - 0.3 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Twinlink

Type:

Coaxial, IPX

Twinlink Communication Technology(Shenzhen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Twinlink

Number of Conductors 1

Specifications

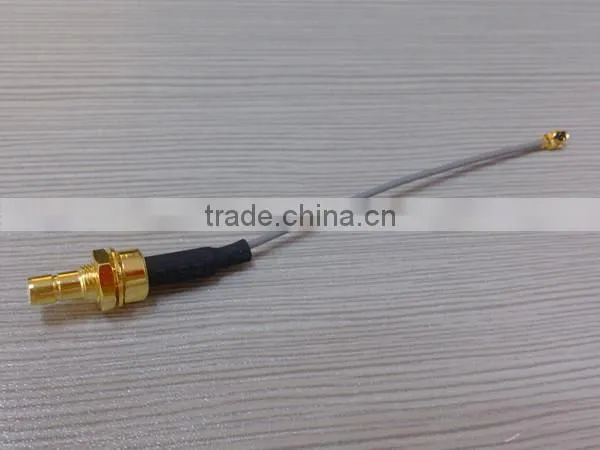

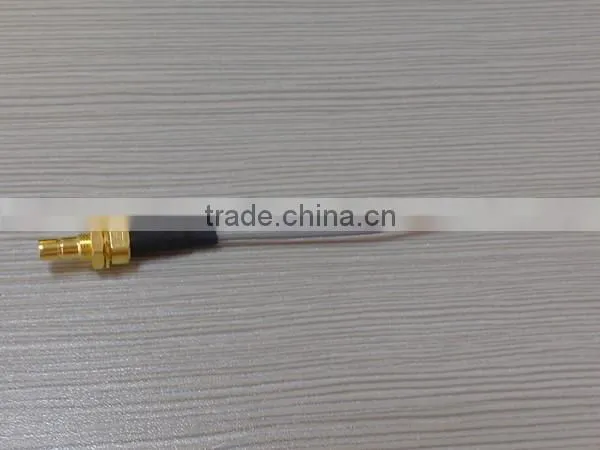

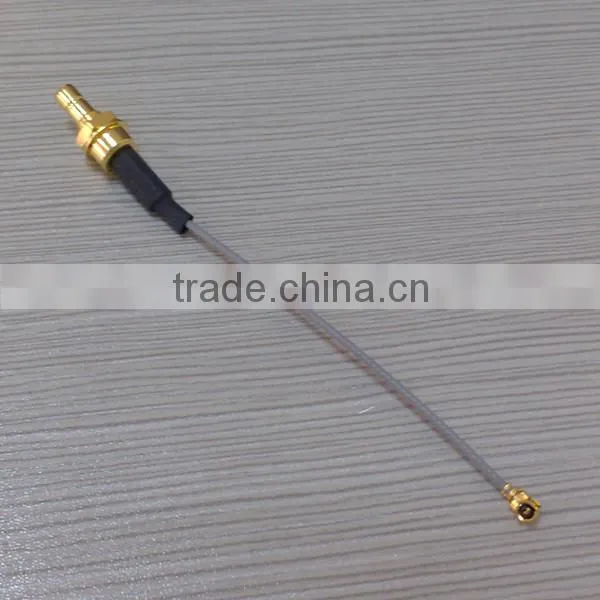

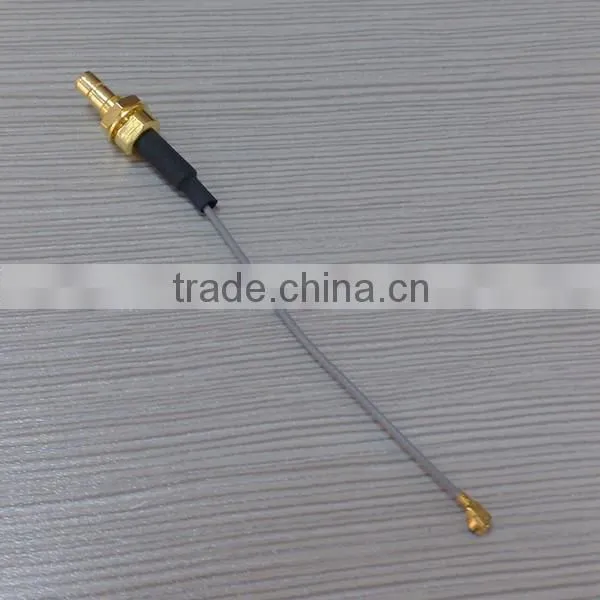

IPEX / U.FL to SMB Plug Bulkhead Connector RF Pigtail Cable
ISO9001,ISO14001,Rohs
Andrew vendor
OEM,ODM service

IPEX MHF connector:

Mechanical Characteristics
ELECTRICAL DATA
Impedance	50Ω
Frequency range	DC-6Ghz
VSWR	1.5max
ENVIRONMENTAL DATA
Temperature range	-40°C to +90°C
MATERIAL DATA
Bodies	Brass--gold plating
Pin contacts	Brass--gold plating
Socket contacts	Copper-beryllium alloy--Au plating
Insulator	PTFE
Connector brand	IPEX/HRS
Cable type available	1.78mm,1.37mm,1.32mm,1.13mm,0.81mm etc
Application	smartphone,tablet PC,wifi antenna,GPS antenna, etc

SMB connector

Mechanical Characteristics
ELECTRICAL DATA
Impedance	50Ω
Frequency Range	0-4GHz
Working Voltage	250-335V,50Hz(sea level)
Withstand Voltage	≥750,50Hz
Insulation Resistance	≥1000mΩ
Contact Resistance	Inner conductor: ≤5mΩ
Contact Resistance	Outer conductor: ≤2.5mΩ
RF leakage	≥55dB

MECHANICAL DATA
Engagement force	8N--63N / 1.8 lbs--14.2lbs
Disengagement force	8N--63N / 1.8 lbs--14.2lbs
Contact captivation	≥18N / 4.0 lbs
Durability (matings)	≥500

ENVIRONMENTAL DATA
Temperature range	-65°C to +165°C

MATERIAL DATA
Bodies	Brass--Au plating / ternary alloy plating
Pin contacts	Brass/Beryllium copper--Au plating
Socket contacts	Beryllium copper / Phosphor bronze--Au plating
Springs and washers	copper / beryllium alloy--Au plating
Crimp ferrules	Brass--Au plating
Insulator	PTFE
PACKING SOLUTIONS	Poly bag/tray+foam+carton

CERTIFICATIONS	ISO9001,ISO14001,Rohs,SGS

SERVICES	OEM,ODM
