250-600 Double-disc Paper Grinding Machine

250-600 Double-disc Paper Grinding Machine photo-1
250-600 Double-disc Paper Grinding Machine photo-2
250-600 Double-disc Paper Grinding Machine photo-3
250-600 Double-disc Paper Grinding Machine photo-4
250-600 Double-disc Paper Grinding Machine photo-5
250-600 Double-disc Paper Grinding Machine photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, grinding machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, grinding machine
Computerized Yes
Place of Origin Shandong, China
Brand Name YIDAFA
Model Number 250-600
Voltage 380v
Power(W) 10-100kw/h
Dimension(L*W*H) depends on model and configuration
Weight 2-20t
Certification ISO9001
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

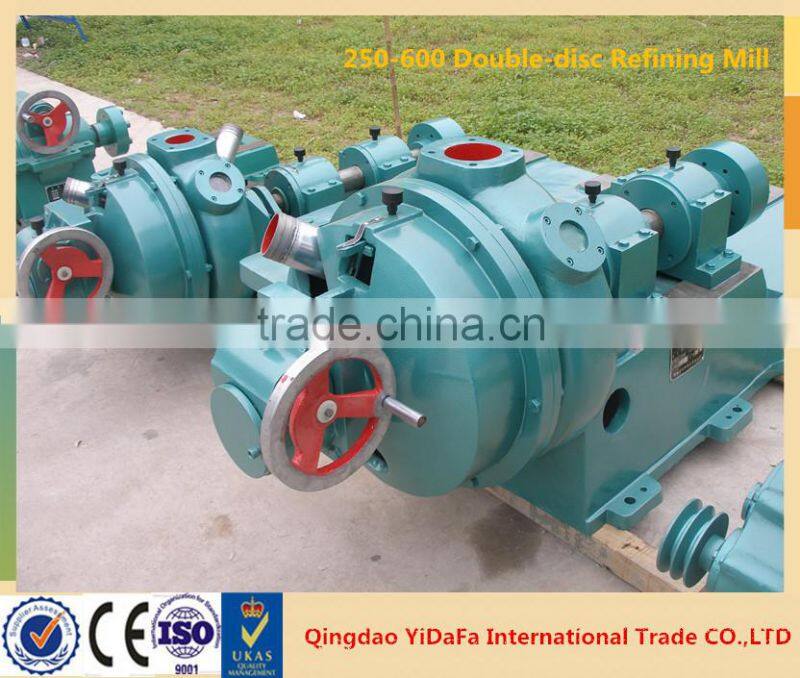

250-600double-disc refining mill machine

250-600 double-disc paper grinding machine

Instruction:

 The double-disc refining mill is used to continuously, pulping of course,fine And regrind slag, in has hig-hproductivity and low-consumption electricity.




Model

Grinding diameter

Production capacity

Consistency

The electric power

Application of slurry

Φ250

Φ250

515T/D

25%

1120KW

Clay slurry pulp,mechanical pulp

Φ380

Φ380

10—30T/D

25%

30—37KW

Clay slurry pulp,mechanical pulp

Φ450

Φ450

2040T/D

25%

7590KW

mechanical pulp,semi-chemical machinery pulp

Φ500

Φ500

30—50T/D

25%

90—110KW

Waste paper pulp,mechanical pulp,semi-chemical machinery pulp

Φ600

Φ600

30—60T/D

25%

110-160KW

Commercial pulp,Waste paper pulp,mechanical pulp,semi-chemical machinery pulp

Our Services



Our services

1.The business contact on both sides will reply within 16 hours .

2.During warranty period, the company provide the relevant technical services for free,Such as equipment quality problem resulting from  the design and manufacturing equipment, which the company will be responsible for replacement and maintenance.

3.After the expiration of the warrantyour company provide customers with a lifelong technical service and spare parts with preferential price and efficient manner over a long period of time.

Related Products

Environmental tissue/toilet paper machine (please click the picture and see the detail information)





250-600 double-disc paper grinding machine

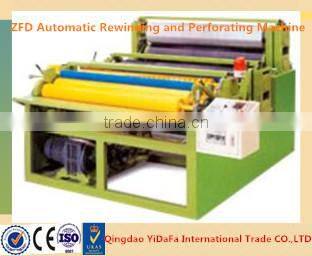

ZFDautomatic rewinding and perforating machine (Please click the picture and see the detail informational)



250-600 double-disc paper grinding machine





ZF toilet bobbin slitter machine (Please click the picture and see the detail information)



250-600 double-disc paper grinding machine



Stainless steel cylinder mould paper machine (please click the picture and see the detail information)



250-600 double-disc paper grinding machine



Multi-cylinder long mesh packaging paper machine(please click the picture and see the detail information)



250-600 double-disc paper grinding machine

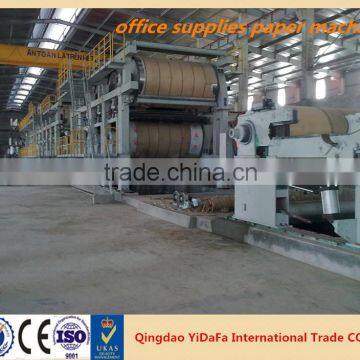

Office supplies paper machine(A4 paper machine)(please click the picture and see the detail information)



250-600 double-disc paper grinding machine

Dryer cylinder in paperr machine(please click the picture and see the detail information)



250-600 double-disc paper grinding machine

Company Information

    Our company has several paper machine manufacturing enterprises and keeps a long-term and stable cooperation with the first-class large paper machinery manufacturers in the world.Our company can provide for global customers with tissue paper machineoffice supplies paper machine, packaging paper machine, white board paper machine  with different types,high quality,energy conservation and environmental protection and pulping equipment, paper processing equipment and various accessories, spare parts,consumables. 250-600 double-disc paper grinding machine

workshop

250-600 double-disc paper grinding machine250-600 double-disc paper grinding machine

250-600 double-disc paper grinding machine

Finished products

250-600 double-disc paper grinding machine



FAQ



FAQ

1.How to install and maintain the machine?

A: Firstly,we will provide the installation guild with the machine for your reference.

Secondly,our company is responsible for training production workers for you, ensuring that the workers will be independent operation.

2.How can we get the matching accessories or wearing parts conveniently?

A: During the warranty,Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price .In fact,the wearing parts are standard parts that you could get it in your country at your convenience.



Warm Tips:



1.Before installation,you should check that equipmentmodel and dimension are all right with the parts complete d and level remaining.



2.Before the debugging of installation,Checking each part is correct, lubrication supply normal.water, electricity values reaching the standard.



3.During Operation,you should pay attention to keep daily inspection, cleaning and oiling.and then examine and repair regularly.





 250-600 double-disc paper grinding machine
