Ferrous metals and non ferrous metals eddy current separator

Specifications

Ferrous metals and non ferrous metals eddy current separator
Most suitablt for recycling industry
Easy to install,operate
Hig

----Introuduce:

Ferrous metals and non ferrous metals eddy current separator have good sorting effect to a variety of nonferrous metals , this equipment can sort non-metallic materials and nonferrous metal automatically.
This equipment have many advantage,for example reducing labor, efficient recovery metal and increase the output value.



----This equipment is widely  application in:

1.Separate the non-ferrous metals from smash material

2.Separate aluminum and copper from aluminum bronze casting sand and smelting ash.

3.remove aluminum cap from a glass bottle

4.Separate aluminum and copper from lump material.

5.Separate the non-ferrous metals from incineration of printing plate.

6.Separate aluminum cans from the city rubbish.

7.Separate aluminum wire and aluminum alloy

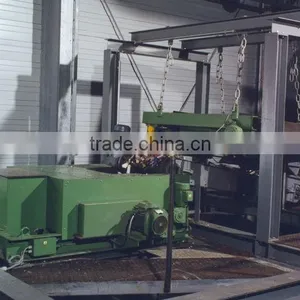

----Overall drawing:

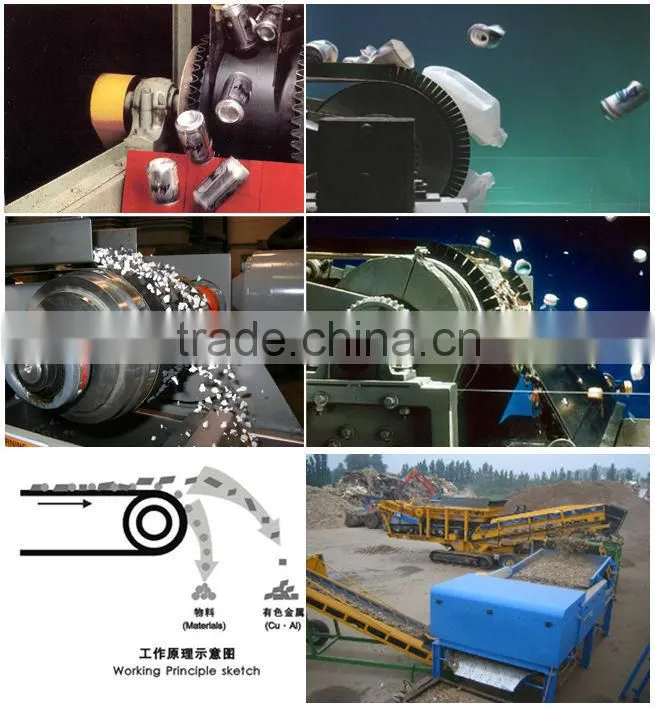

----Equipment detail:

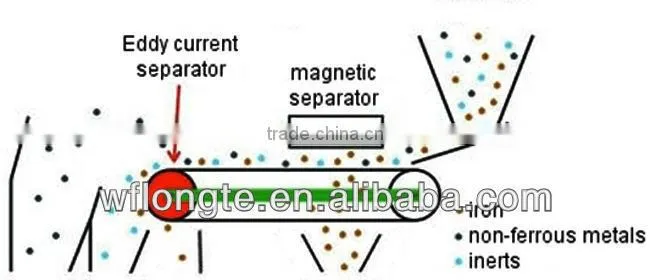

----Workflow drawing:



----Technical specifications:



Model	Belt width(mm)	Power (kw)	Capacity (m³/h)	Overall dimension (mm)	Weight (kg)
LECS-60	650	4.0	6	2250×1750×1075	1100
LECS-80	800	5.5	7.5	2360×1960×1110	1200
LECS-100	1000	5.5	9	2470×2200×1140	1400
LECS-120	1200	7.5	12	2560×2450×1180	1500
