Specifications
Nonferrous metal eddy current separatorMost suitablt for recycling industry
Easy to install,operate
High capacity,long servi
----Introuduce:
Eddy current separator used in metal recycling industry have good sorting effect to a variety of nonferrous metals , this equipment can sort non-metallic materials and nonferrous metal automatically.
This equipment have many advantage,for example reducing labor, efficient recovery metal and increase the output value.
----This equipment is widely application in:
1.Separate the non-ferrous metals from smash material
2.Separate aluminum and copper from aluminum bronze casting sand and smelting ash.
3.remove aluminum cap from a glass bottle
4.Separate aluminum and copper from lump material.
5.Separate the non-ferrous metals from incineration of printing plate.
6.Separate aluminum cans from the city rubbish.
7.Separate aluminum wire and aluminum alloy

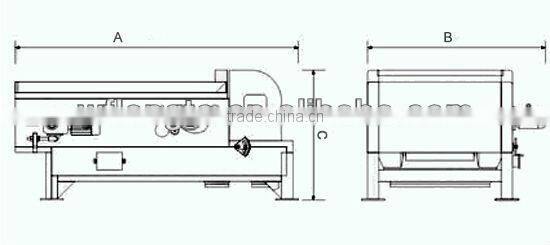

----Overall drawing:

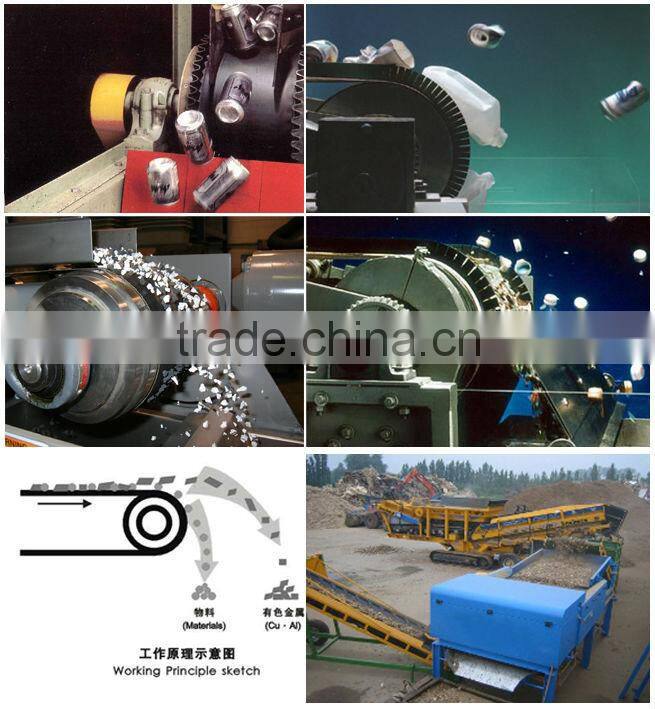

----Equipment detail:

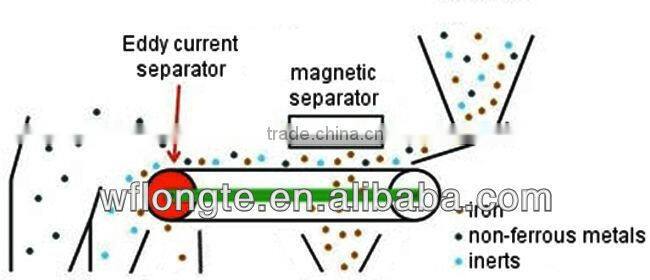

----Workflow drawing:
----Technical specifications:
Model |
Belt width(mm) |
Power |
Capacity |
Overall dimension (mm) |
Weight |
LECS-60 |
650 |
4.0 |
6 |
2250×1750×1075 |
1100 |
LECS-80 |
800 |
5.5 |
7.5 |
2360×1960×1110 |
1200 |
LECS-100 |
1000 |
5.5 |
9 |
2470×2200×1140 |
1400 |
LECS-120 |
1200 |
7.5 |
12 |
2560×2450×1180 |
1500 |
Catalogue: | |
Conveyor belt metal detector |
Self cleaning permanent magnetic separator |
Air cooling self cleaning electromagnetic separator |
Air cooling electromagnetic separator |
Wind cooling self cleaning electromagnetic separator |
Wind cooling electromagnetic separator |
Oil cooling self cleaning electromagnetic separator |
Oil cooling electromagnetic separator |
Manual cleaning permanent magnetic separator |
Electromagnetic vibrate feeder |
Magnetic roller |
Magnetic ferrous traps |
