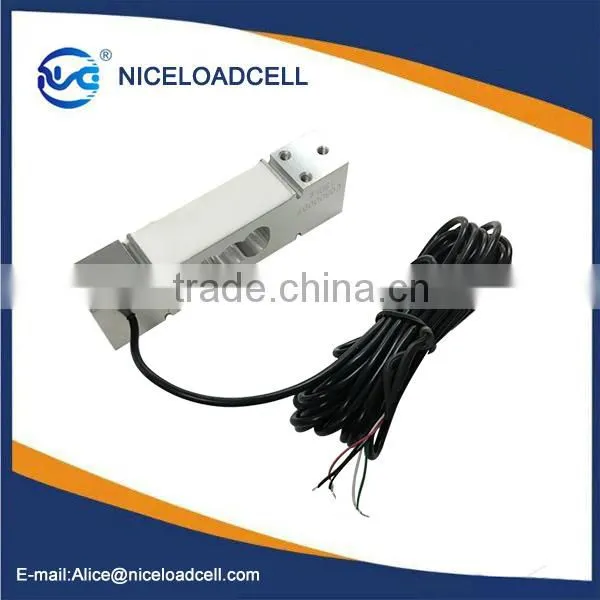

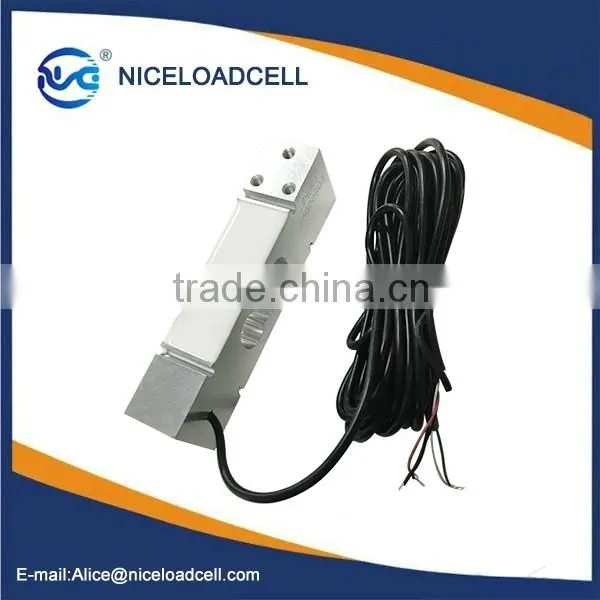

Help CenterAluminum Single Point Load Cell 30KG 150KG for Platform Scale
Related Products
-
0.3kg 1kg 2kg 3kg Small Capacity With Precision Load CellsUS$ 5 - 6MOQ: 1 Piece -
High Accuracy Precision 20g 30g 50g 100g Micro Mini Parallel Beam Load CellsUS$ 10 - 20MOQ: 1 Piece
-
Weighing Scales Single Shear Beam Point Load Cells 10kg 300kgUS$ 5 - 10MOQ: 10 Pieces
-
0.5kg 1kg 3kg 5KG 10KG 20KG 25KG Parallel Beam Micro Load CellsUS$ 5 - 6MOQ: 1 Piece
-
0.5kg to 25kg Precision Load Cell Lower PriceUS$ 3 - 4MOQ: 10 Pieces
Models:CZS623BL-30-150KG
Three-M6-Screw Hole
1, CZS-623BL load cells are available in the capacities 3KG to 150kg
2, Aluminum alloy load cell construction with parallel beam.
3, Silicon adhesive sealed, surface anodized and anti-corrosion.
4, Suitable for electroic balance and other electronic weighing devices.
5:Max. platform size: 200x200mm.
| Capacity | (kg) | 3-150kg |
| Sensitivity | mv/v | 1+/-0.1MV/V |
| Linearity | (%FS) | 0.02 |
| Repeatability | (%FS) | 0.02 |
| Hysteresis | (%FS) | 0.02 |
| Creep | (%FS) | 0.02 |
| Temperature effect on sensitivity | (%FS/10℃) | 0.03 |
| Temperature effect on zero | (%FS/10℃) | 0.02 |
| Output resistance | (Ω) | ≥5GΩ |
| Excitation, Recommended | (V) | 10V(DC) |
| Safe overload | (%FS) | 120 |
| Ultimate overload | (%FS) | 150 |
| Wire Digram | Input +(Red) | -(Black) |
| Output+(Green) | -(White) |

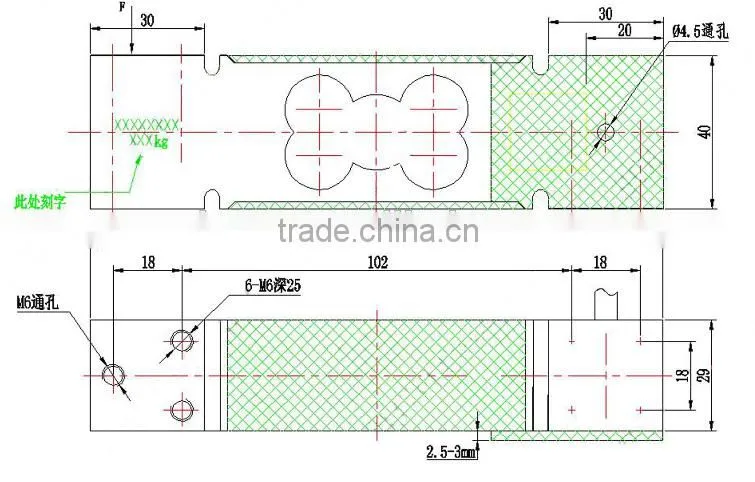

Dimension Size
Certificate
Apply to
Shipping:
After Servies
Can i get a samples?
Yes,When we are in storage ,will be sending 1-5pcs by free but the shipping cost is by client!
Accept special design?
Yes,we can be accept any special customized
How long for delivery days?
Samples:1-10DAYS
Big Quantity(10K-50K):30-45days
Did you have of gurantee period?
Yes,Within 1year the goods have any problems that you could be return to me revise it but freight cost is by customer
We have a best price and high precision.Welcome to your inquiry!
