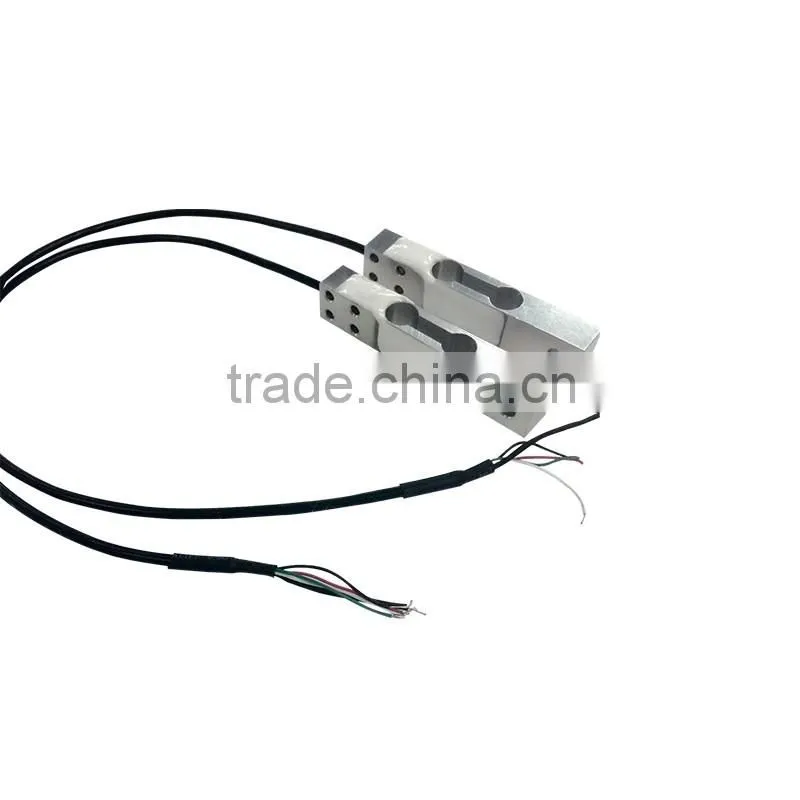

Help Center0.5kg 1kg 3kg 5KG 10KG 20KG 25KG Parallel Beam Micro Load Cells
Related Products
-
0.5kg to 25kg Precision Load Cell Lower PriceUS$ 3 - 4MOQ: 10 Pieces -
Aluminum Alloy Load Cell 3000kg Plaform Size 600x600mmUS$ 5 - 10MOQ: 10 Pieces
-
Aluminium Alloy Low Cost Parallel Beam Chinese Load Cells 200kgUS$ 5 - 10MOQ: 10 Pieces
-
High Precision Low Cost Shear Beam Load Cell 300kg 500kgUS$ 5 - 10MOQ: 10 Pieces
-
500KG Load Cell Single Point Load CelllUS$ 5 - 10MOQ: 10 Pieces
Models:CZS611 3-25KG
1, CZS-6113-35kg load cells are available in the capacities 0.3-3KG
2, Aluminum alloy load cell construction with parallel beam.
3, Silicon adhesive sealed, surface anodized and anti-corrosion.
4, Suitable for electroic balance and other electronic weighing devices.
5:Max. platform size: 200x200mm.
| Capacity | (kg) | 3-25KG |
| Sensitivity | mv/v | 1+/-0.1MV/V 0.3-0.5kg |
| mv/v | 2+/-0.2mv/v 2-3kg | |
| Linearity | (%FS) | 0.02 |
| Repeatability | (%FS) | 0.02 |
| Hysteresis | (%FS) | 0.02 |
| Creep | (%FS) | 0.02 |
| Instulation Resistance | (Ω) | 5GΩ) (100VDC) |
| Temperature effect on sensitivity | (%FS/10℃) | 0.03 |
| Temperature effect on zero | (%FS/10℃) | 0.02 |
| Output resistance | (Ω) | ≥5GΩ |
| Excitation, Recommended | (V) | 5V |
| Safe overload | (%FS) | 120 |
| Ultimate overload | (%FS) | 150 |
| Use- Range Tempacture | "C | -20--+60'C |
| Wire Digram | Input +(Red) | -(Black) |
| Output+(Green) | -(White) |

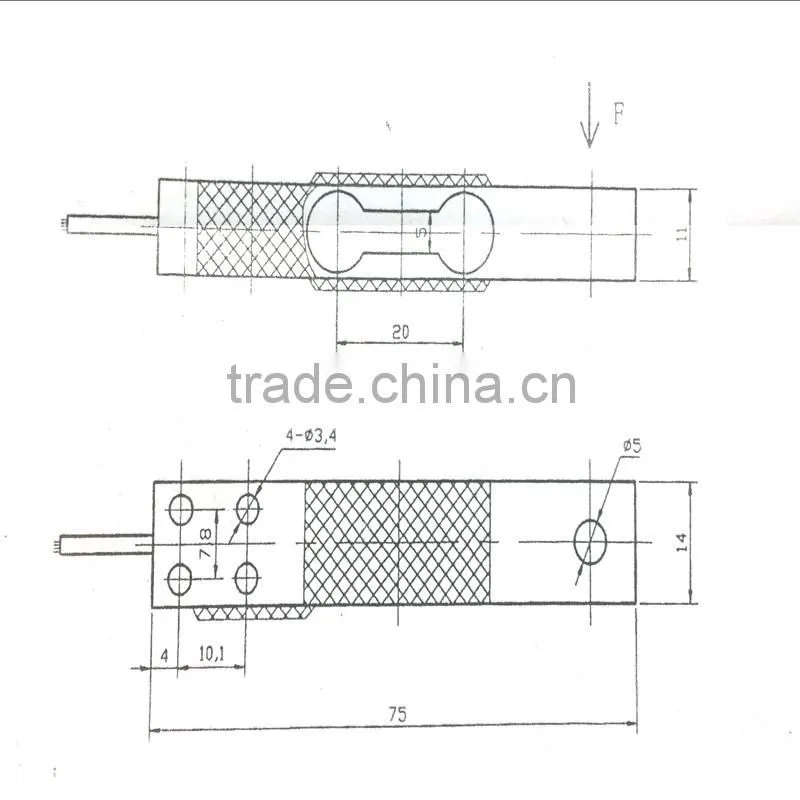

Dimension Size
Certificate
Apply to
Shipping:
After Servies
Can i get a samples?
Yes,When we are in storage ,will be sending 1-5pcs by free but the shipping cost is by client!
Accept special design?
Yes,we can be accept any special customized
How long for delivery days?
Samples:1-10DAYS
Big Quantity(10K-50K):30-45days
Did you have of gurantee period?
Yes,Within 1year the goods have any problems that you could be return to me revise it but freight cost is by customer
We have a best price and high precision.Welcome to your inquiry!
