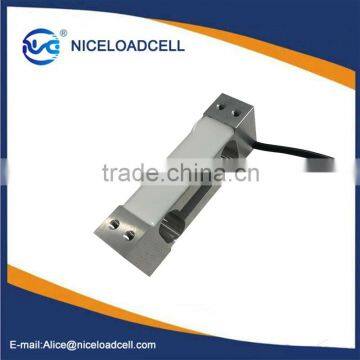

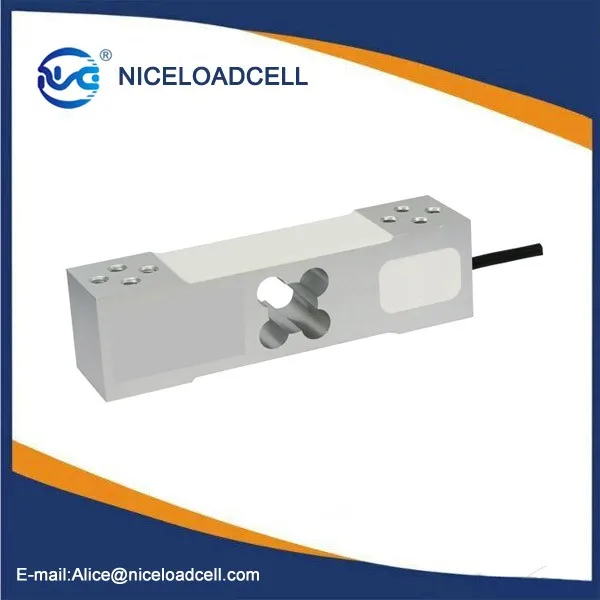

0.5kg to 25kg Precision Load Cell Lower Price

0.5kg to 25kg Precision Load Cell Lower Price thumbnail-1
0.5kg to 25kg Precision Load Cell Lower Price thumbnail-2
0.5kg to 25kg Precision Load Cell Lower Price photo-1

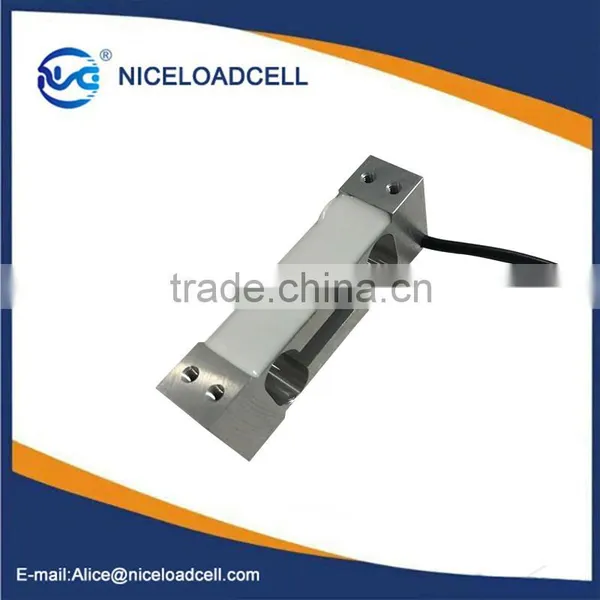

0.5kg to 25kg Precision Load Cell Lower Price photo-2
US$ 3 - 4 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
CZS
Model Number:
CZS608
Contact Supplier Request Quote Chat Now
Changsha Naisi Electronic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name CZS
Model Number CZS608
Usage Position Sensor
Theory Resistance Sensor
Output Analog Sensor
Product Description

Feacture:
Capacity:0.5-25KG
Materil:Aluminmum alloy
Dimension Size:70X22X15MM
Sensitivity :1.0+/-0.1MV/V ,2+/-0.2mv/v

Platfrom Size:120X120MM

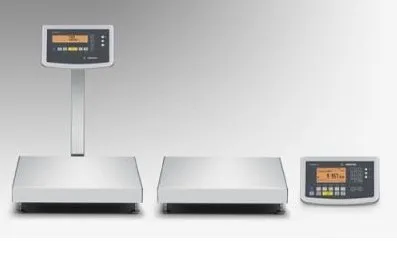

Kitchen scales,postal scales.fishing scales,Jewelry scales,other micro weighing equipment

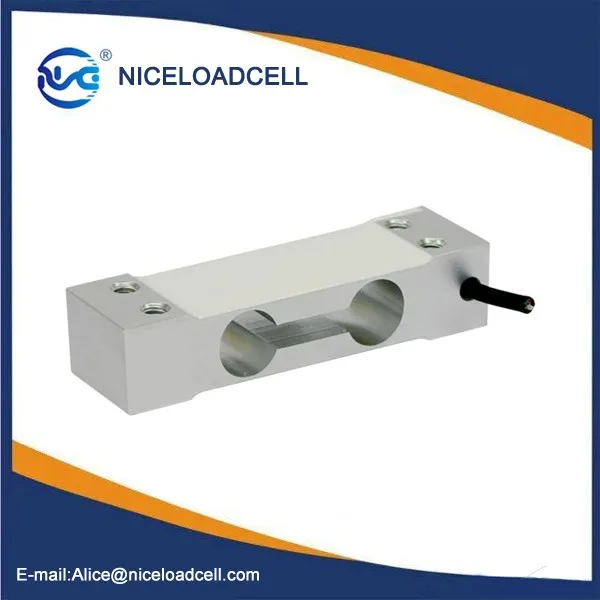

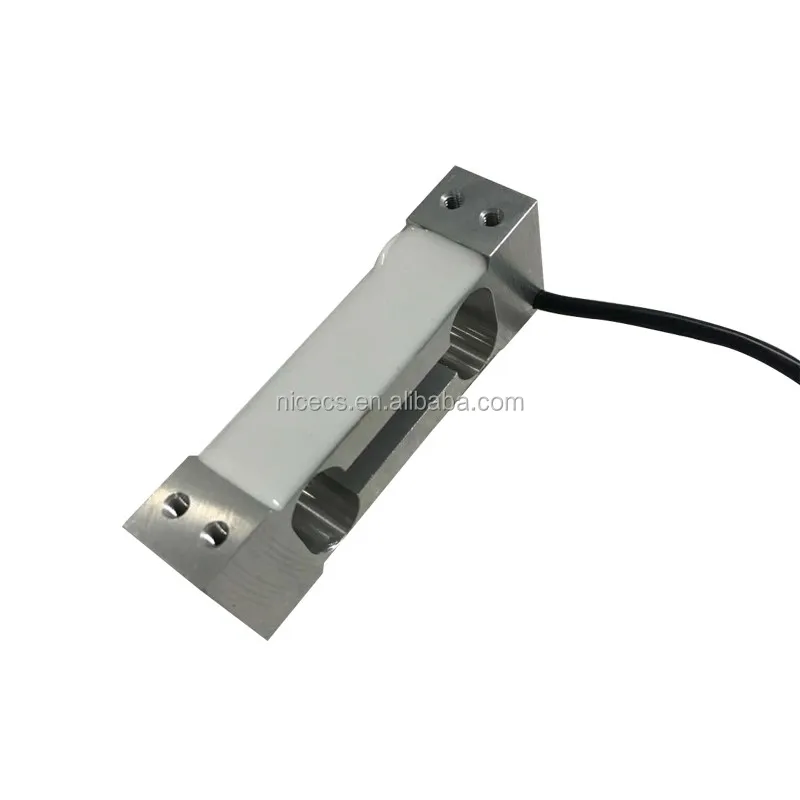

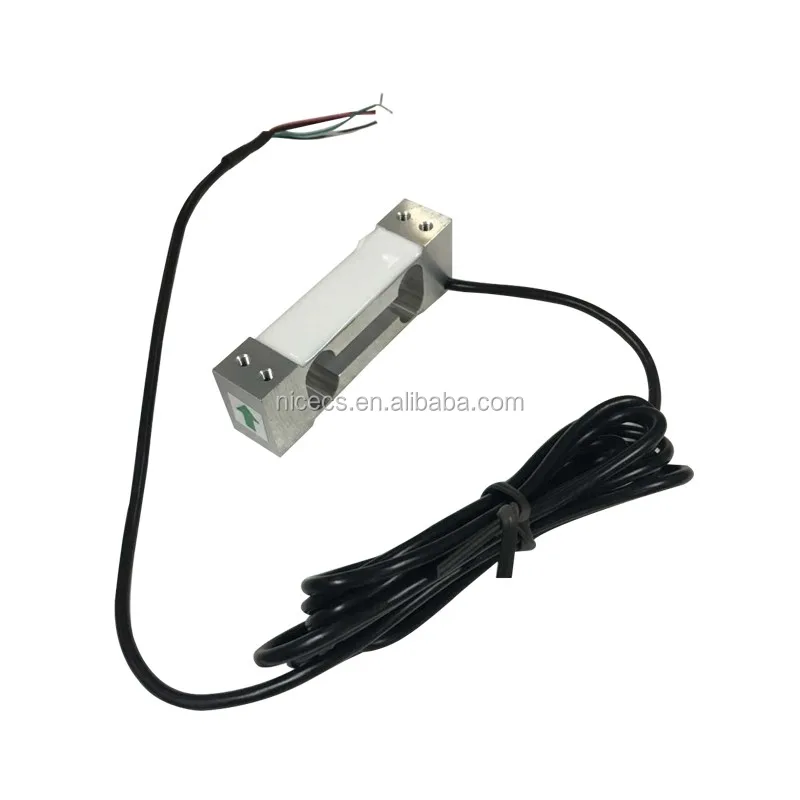

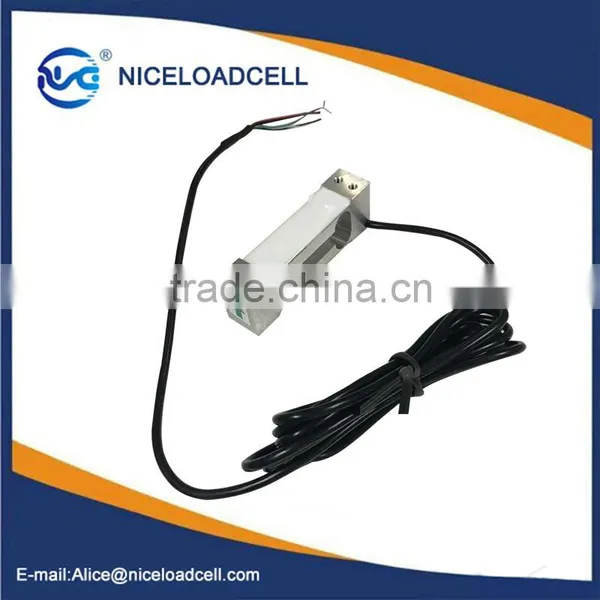

Genuine Photograph

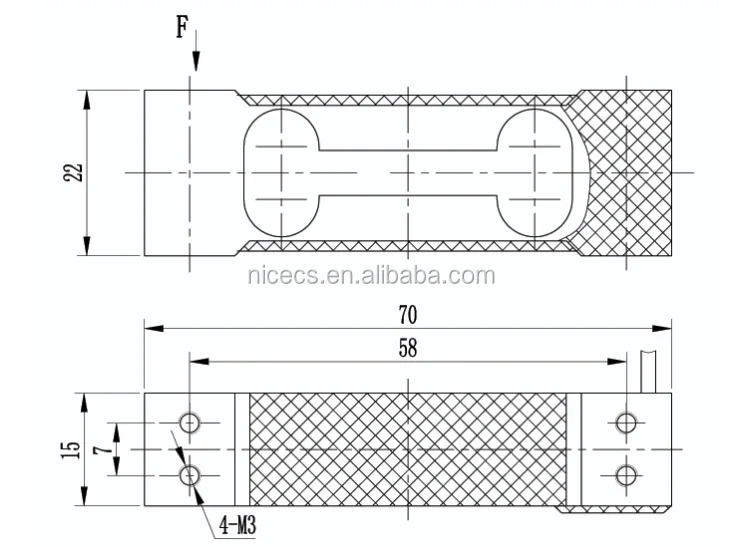

Dimension Size:


Parameters
Capacity
0.5-25KG
Sensitivity
2+/-0.2mv/v
linearity
+/-0.03%F.S
Reapitability
+/-0.02%F.S
Hysteresis
+/-0.02%F.S
Creep
+/-0.02%F.S(3min)
Zero Balance
+/-0.1mV/V
Input Resistance
1050+/-100 ohm
Output Resistance
1000+/-10 ohm
Insulation Resistance
≥5GOHM (100VDC)
Temperature Effect on Zero
+/-0.3%F.S/10 deg C
Temperature Effect on Sensitivity
+/-0.03%F.S/10 deg C
Excitation Voltage
9-12VDC
Zero Output
+/-1.5%FS
Safe Load
120%FS
Overload
150%
Cable
6-Wire,stability of output and voltage
Wire
Input+(Green), --(Black)
Output-(Red), ---(White)
Brown(-)
Blue（+）

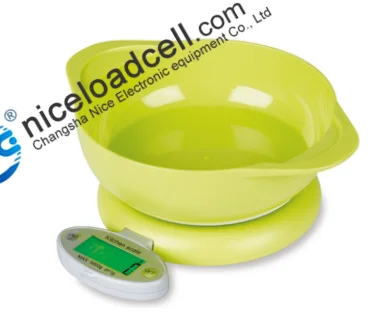

Micro load cells suitable for :

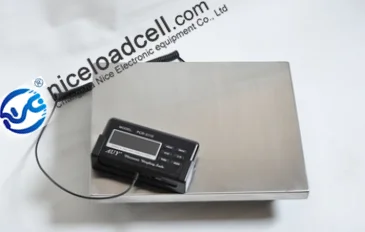

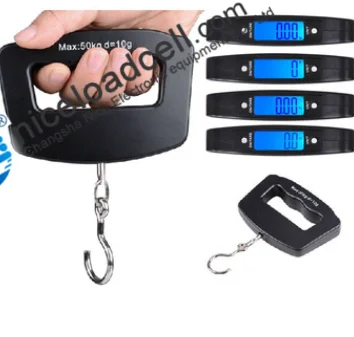

     Apply to Kitchen scales, postal scales, fishing scale




Kitchen scales, postal scales, fishing scale


Related Products

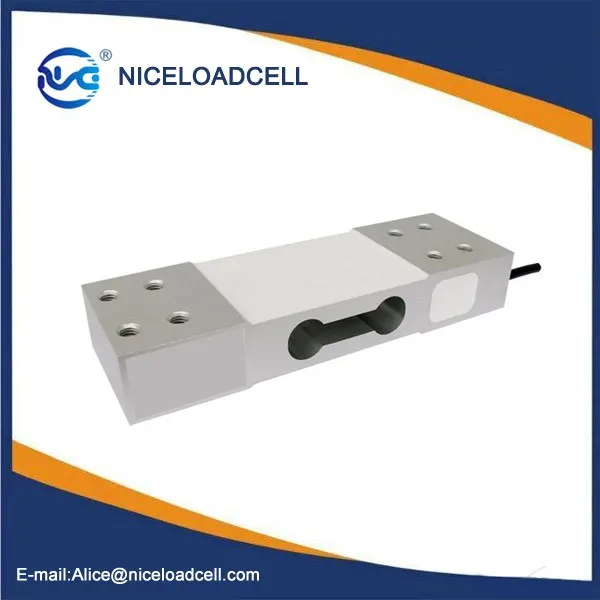

Aluminmum alloy load cell
CZS638 30KG-500KG
Dimensions Size:150X35X40MM
Rated Output:+/-0.03
Recommended Platform Size:
400x400mm


Aluminmum alloy load cell
CZS619 10-300kg
Dimensions Size:125x24x40mm
Rated Output:+/-0.03 +/-0.017%FS
Recommended Platform Size:
350x400mm



Aluminmum alloy load cell
CZS602A 3KG-100KG
Dimensions Size:100X22X30MM
Rated Output:+/-0.03%FS
Recommended Platform Size:
250X350MM

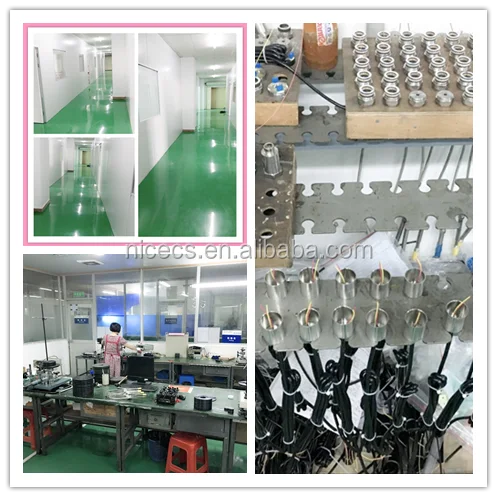

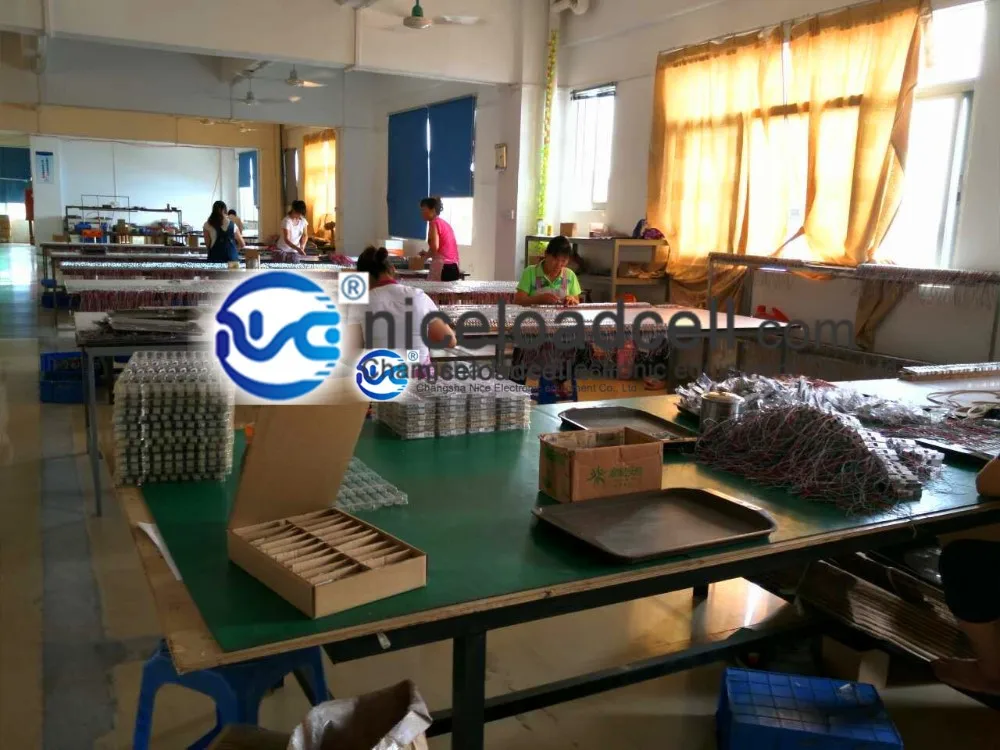

Our Company
