Models:CZS608LQQ:20G 30G 50G 100G
Features:
1, Capacity:CZS-608L-20G-100G
2, Aluminum alloy load cell construction with parallel beam.
3, Silicon adhesive sealed, surface anodized and anti-corrosion.

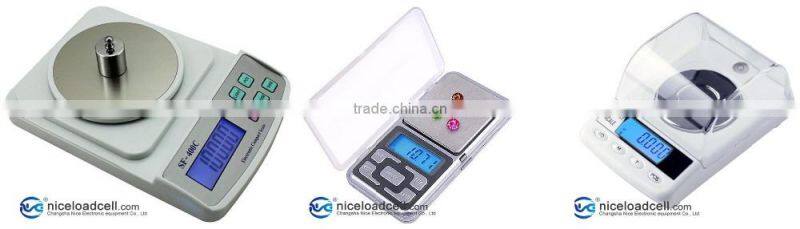

4, Suitable for electroic balance and other electronic weighing devices.
5:Max. platform size: 50x50mm
6:Dimension Size:84x12x5mm
Specifications: | |||
capacity |
g |
20, 30, 50, 100 |
|
safe overload |
%FS |
120 |
|
ultimate overload |
%FS |
150 |
|
rated output |
mV/V |
0.5±0.15 |
|
excitation voltage |
Vdc |
≤6 |
|
combined error |
%FS |
± 0.05 |
|
zero unbalance |
mV/V |
± 0.5 |
|
non-linearity |
%FS |
± 0.05 |
|
hysteresis |
%FS |
± 0.05 |
|
repeatability |
%FS |
± 0.05 |
|
creep |
%FS/3min |
± 0.05 |
|
input resistance |
Ω |
1055 ± 40 |
|
output resistance |
Ω |
1000 ± 10 |
|
insulation resistance |
M Ω |
≥ 2000 @ 50 Vdc |
|
compensated temperature range |
°C |
-10 ~ +40 |
|
temperature coefficient of SPAN |
%FS/10°C |
± 2.0 |
|
temperature coefficient of ZERO |
%FS/10°C |
± 0.05 |
|

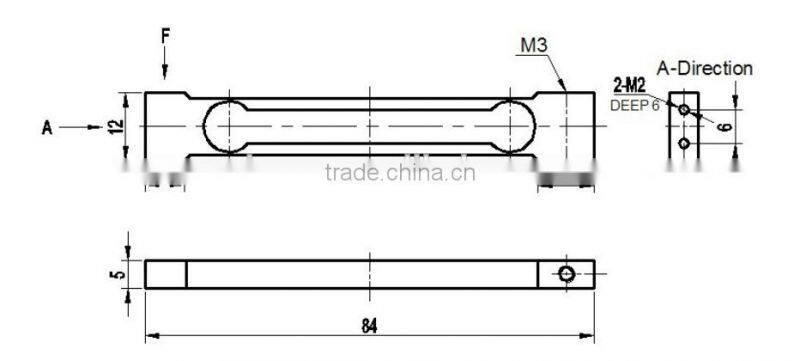

Dimension Size
Rateld Load Cells
CZS-608J 0.6-6KG
Precision:C3
Rated Output:1.0+/-0.1
Dimension Size:105x18x10mm
Thread Hole:4-M4
Cable:0.8X420MM
Certificate
Apply to
Shipping:
After Servies
Can i get a samples?
Yes,When we are in storage ,will be sending 1-5pcs by free but the shipping cost is by client!
Accept special design?
Yes,we can be accept any special customized
How long for delivery days?
Samples:1-10DAYS
Big Quantity(10K-50K):30-45days
Did you have of gurantee period?
Yes,Within 1year the goods have any problems that you could be return to me revise it but freight cost is by customer
We have a best price and high precision.Welcome to your inquiry!
