Weighing Scales Single Shear Beam Point Load Cells 10kg 300kg

Weighing Scales Single Shear Beam Point Load Cells 10kg 300kg thumbnail-1
Weighing Scales Single Shear Beam Point Load Cells 10kg 300kg thumbnail-2

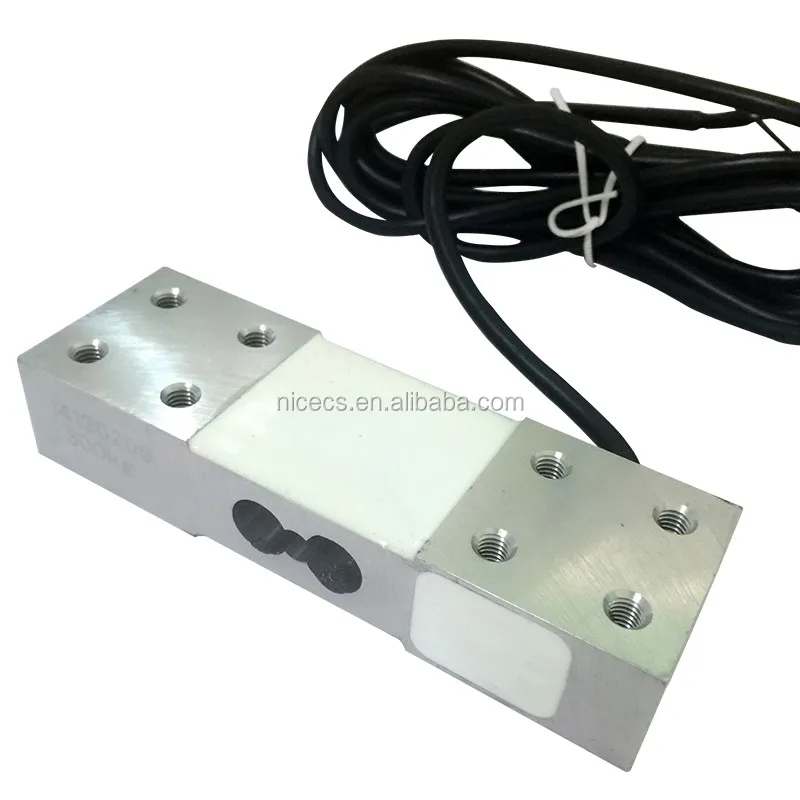

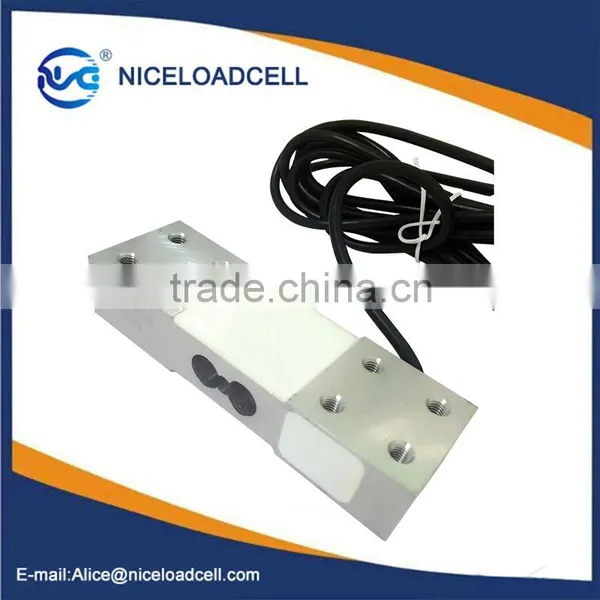

Weighing Scales Single Shear Beam Point Load Cells 10kg 300kg photo-1

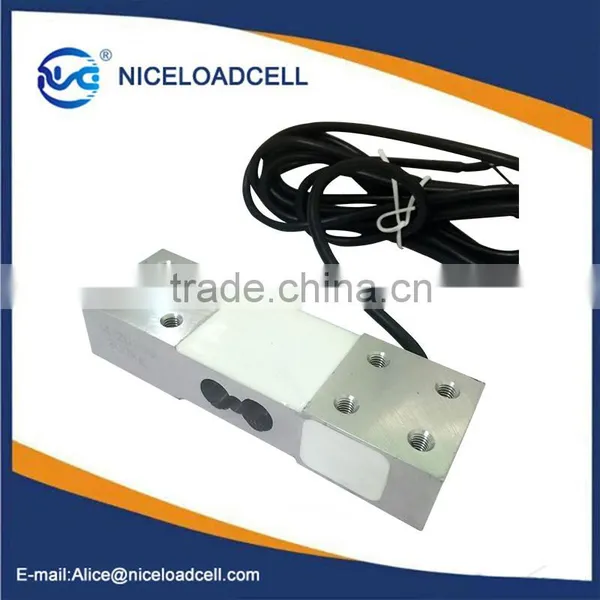

Weighing Scales Single Shear Beam Point Load Cells 10kg 300kg photo-2
US$ 5 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CZS
Model Number:
CZS619
Contact Supplier Request Quote Chat Now
Changsha Naisi Electronic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CZS
Model Number CZS619
Description

Feature

Single shear baem load cell
Aluminum alloy
Capacity:10kg-300kg

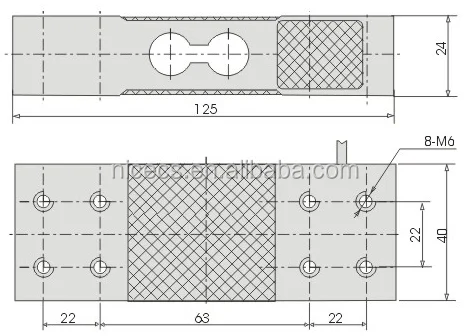

Dimension size:125X24X40mm
Recommended Platform Size:350X400MM




Single  Point Shear Beam weighing scales aluminum Load Cells

Rated load (kg): 10 ,20、30、50、60、100、150、200、250、300


Main features:

Alloy aluminum.

It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion,

integral structure and easy installation.

Suit for electronic top scale, floor scale and other weighing equipment

Recommended Platform Size:350X400MM


Parameter
Precision
C2/C3
Zero balance(%F.S)
±1.0
Rated output(mv/v)
2.0±0.2
linearity
0.02%FS
hysteresis
0.02%FS
repeatability
0.02%FS
Creep(%F.S/30min)
±0.02/10min
Excitation voltage(V)
10(VDC)
Input resistance(Ω)
405±10
Output resistance(Ω)
350±3
Ultimate overload (%F.S)
150
Insulation resistance(MΩ)
≥5000(100VDC)
Temp. effect on span(%F.S/10℃)
±0.02/±0.014
Comprehensive error(%F.S)
±0.03(%F.S/10℃)
Temp. effect on zero(%F.S/10℃)
±0.03(%F.S/10℃)
Use temp. range(℃ )
-20～+60℃
Safe overload (%F.S)
120
Defend grade
IP65
Related Products


      Models:CZS601-30-120KG

      Materil:Aluminum Alloy
       Dimension Size:130x22x30mm
       Recommended Platform Size:250x350mm
Our Company

Certifications
Packing & Delivery
FAQ

Can i get a samples?

Yes,When we are in storage ,will be sending 1-5pcs by free but the shipping cost is by client!

Accept special design?

Yes,we can be accept any special customized

How long for delivery days?

Samples:1-10DAYS

Big Quantity(10K-50K):30-45days

Did you have of gurantee  period?

Yes,Within 1year the goods have any problems that you could be return to me revise it but freight cost is by customer

We have a best price and high precision.Welcome to your inquiry!
