Models:CZS608H-4-20KG
1, CZS-608H load cells are available in the capacities 4kg to 20kg.
2, Alumium construction with parallel beam.
3, Silicon adhesive sealed, surface anodized and anti-corrosion.
4, Suitable for electroic balance and other electronic weighing devices.
5:Max. platform size: 200x200mm.
| Capacity | (kg) | 3-60kg |
| Output sensitivity | (mv/v) | 2.0±0.2 |
| Linearity | (%FS) | 0.02 |
| Hysteresis | (%FS) | 0.02 |
| Repeatablility | (%FS) | 0.02 |
| Creep | (%FS10min) | 0.02 |
| Insulation resistance | (MΩ) | 5GΩ(100VDC) |
| Maximum number of verification intervals | n max | 2500 |
| Temperature effect on zero | (%FS/10“C) | 0.03 |
| Temperature effect on sensitivity | (%FS/10“C) | 0.02 |
| Excitation Voltage | V | 10 |
| Zero balance | +/-(%FS) | 3 |
| Safe overload | % | 120 |
| Ultimate overload | 150% | 150 |
| Accuracy | 0.03%FS | 0.03 |
| Output resistance | 350+/-3Ω | 350 |
| Corner correction | +/-(%FS) | 0.005 |
| Wire Connection | Output +(ReD) | -(Black) |
| +(Green) | -(White) |

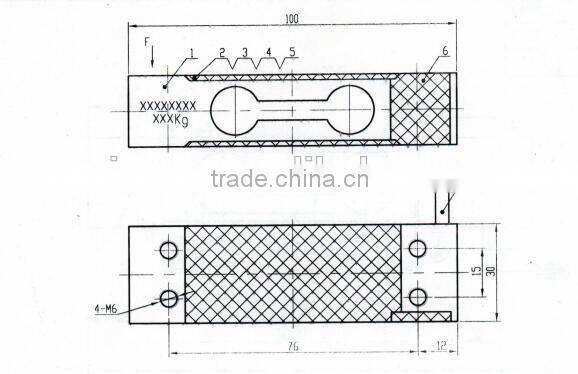

Dimension Size
Certificate
Apply to
Shipping:
After Servies
Can i get a samples?
Yes,When we are in storage ,will be sending 1-5pcs by free but the shipping cost is by client!
Accept special design?
Yes,we can be accept any special customized
How long for delivery days?
Samples:1-10DAYS
Big Quantity(10K-50K):30-45days
Did you have of gurantee period?
Yes,Within 1year the goods have any problems that you could be return to me revise it but freight cost is by customer
We have a best price and high precision.Welcome to your inquiry!
