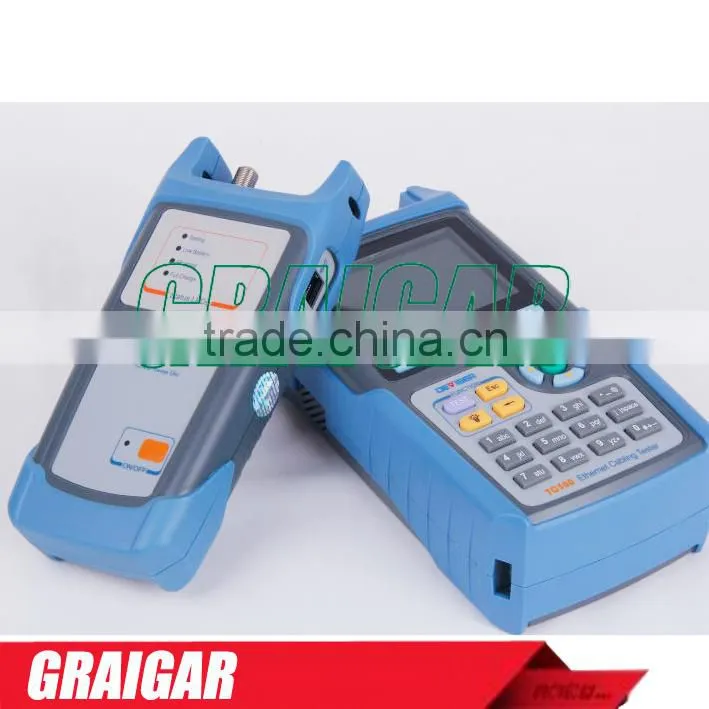

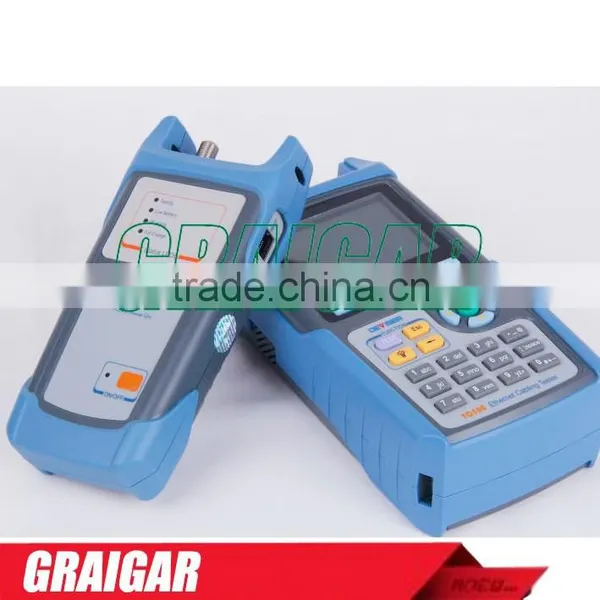

Deviser TC500 Ethernet Cabling Tester
Overview
Designed for Ethernet systems, TC500 measures the speed and performance on CAT3, CAT5e and CAT6 cables according to ANSI/ TIA/EIA-568-B and ISO/IEC 11801 to ensure the cable qualification.
Key Features

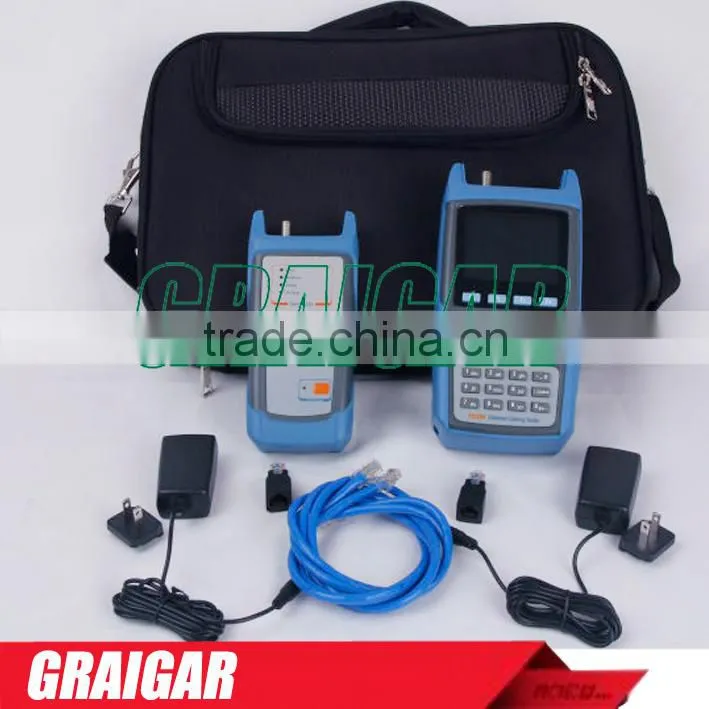

- Contains a main unit and a remote unit.

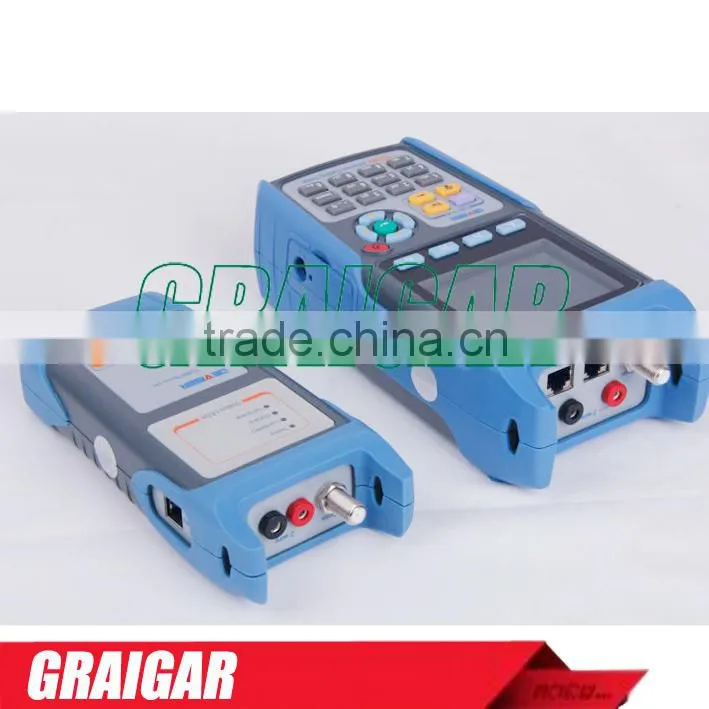

- Multi connector: one RJ45 connector for UTP/STP data cable testing, one F connector for coax testing, one RJ11 connector for telephone cable testing and two banana jacks for 2-wires testing
- Support International standard ISO/IEC 11801 and American standard TIA/EIA-568-B
- Tone generator.
- Two additional functions: Ping and BER Test
- Store at least 100 results
- Toolbox software to analyze the results on PC
Auto Test Items
- Wire map
- Length
- Propagation delay
- Delay skew
- D. C. loop resistance
- Insertion loss (attenuation)
- NEXT (near-end crosstalk)
- PS NEXT (power-sum NEXT)
Manual Test Items
- Single Auto test item
- BER Test, up to 1000BASE-T
- TONE
Network Test
- Ping
- Return loss
- ACR (attenuation to crosstalk ratio at the near end)
- PS ACR (power-sum ACR-N)
- ELFEXT (equal level far-end crosstalk)
- PS EL FEXT (power-sum ELFEXT)
Specifications
Items |
Range |
Resolution |
Accuracy |
||
|
Length |
0 m ~ 176 m (UTP) 0 m ~ 200 m (Coax) |
0.1 m |
±1.5 m |
||
Propagation Delay |
0 ns ~ 850 ns |
1 ns |
±7 ns |
||
Delay Skew |
0 ns ~ 100 ns |
1 ns |
±15 ns |
||
DC Resistance |
0 Ω ~ 100 Ω |
1 Ω |
±2 Ω |
||
|
RF Frequency |
1 MHz ~ 250 MHz |
NEXT, Return Loss, ELFEXT: 1 to 31.25 MHz: 150 kHz 31.25 MHz ~ 100 MHz: 250 kHz 100 MHz ~ 250 MHz: 500 kHz Insertion Loss: 1 to 250 MHz: 1 MHz |
|||
|
RF Items |
NEXT: 0 ~ 70 dB Insertion Loss: 0 ~ 40 dB |
0.1 dB |
±2 dB (Insertion Loss) |
||
Other | |
Testing interface |
RJ45; RJ11; F; Banana Jacks |
Other interface |
USB |
|
Power Supply |
Main unit: 7.4 V / 2.4 AH Lithium battery Remote unit: 7.4 V / 1.1 AH Lithium battery |
Working Time |
3.5 hours |
Charging Time |
5 hours |
|
Dimension |
Main unit: 222 mm x 108 mm x 57 mm; Remote unit: 184 mm x 83 mm x 44 mm |
Weight |
Main unit: 0.8 kg; Remote unit: 0.4 kg |
