NEW S7200 Analog Digital Satellite TV Analyzer DVB-C/T/H/T2/S/S2

Main Features
•• All standards in one: DVB-C (J.83A/C)/C2, DVB-T/H/T2, DVB-S/S2

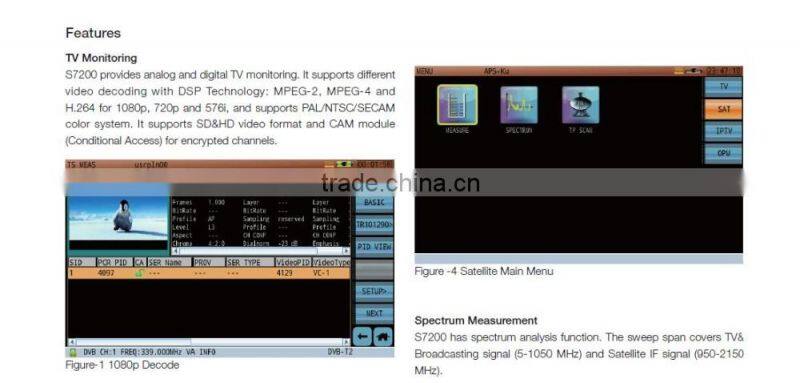

•• Digital/Analog TV and Digital Satellite TV analysis
•• MPEG2 Transport stream analyzer and monitoring via TS-ASI input &RF input

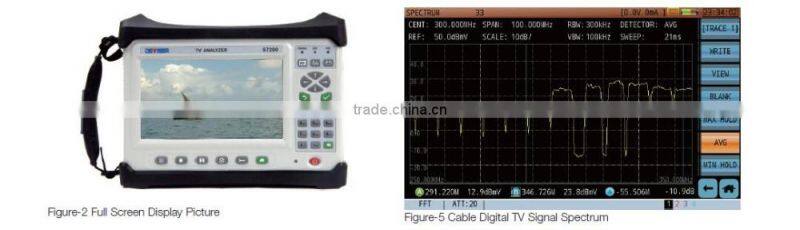

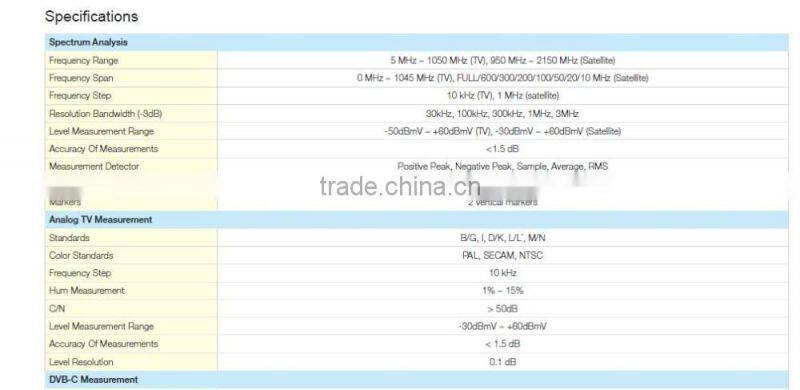

•• Fast spectrum analysis with 5 ~ 2150 MHz frequency, Max span 1200MHz
•• DSP Technology to support different video decoding: MPEG-2, MPEG-4 and H.264 for 1080p, 720p and 576i, support PAL/NTSC/
SECAM color system
•• Support SD&HD Video format
•• CAM module (Conditional Access) for encrypted channels
•• TS-ASI input and output
•• IPTV analysis option
•• TS record and TS replay, Very High speed (>95Mbps) Transport Stream record & analysis

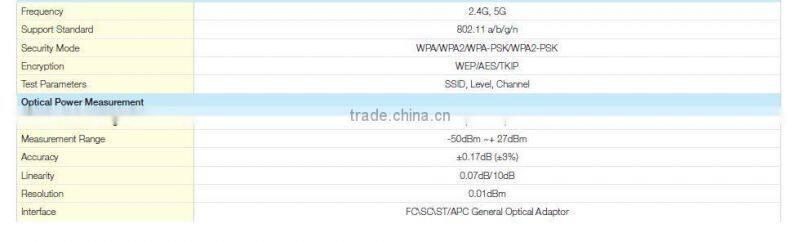

•• Optical Power measurement and Optical Receiver option
•• Double 1000M LAN and USB interface
•• Inside WiFi option
•• Outside GPS Dongle option

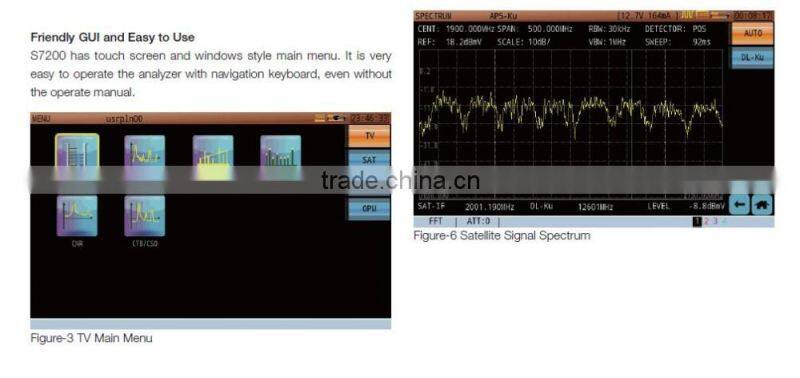

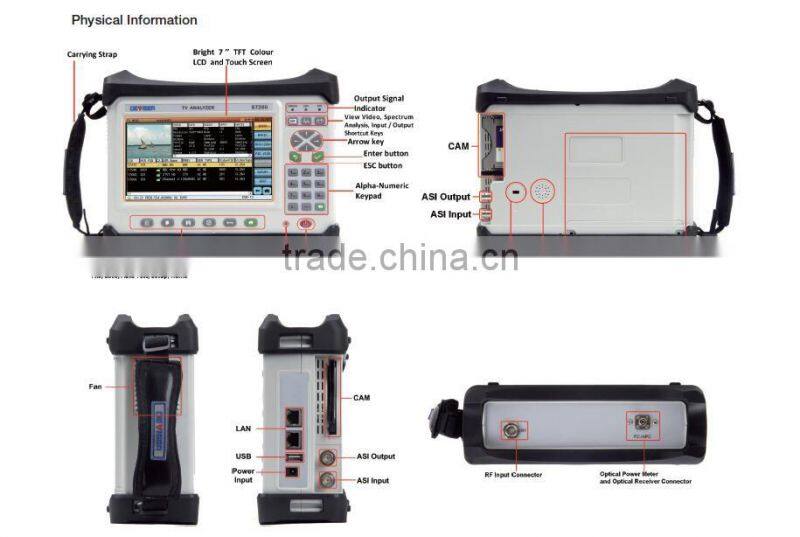

•• Capacitive Touch Screen, High resolution touch 7" TFT LCD with bright display for indoors and outdoors Easy to use
•• W253mm × H194mm × L84mm, light weight.
•• Working time >4 hours (battery)
