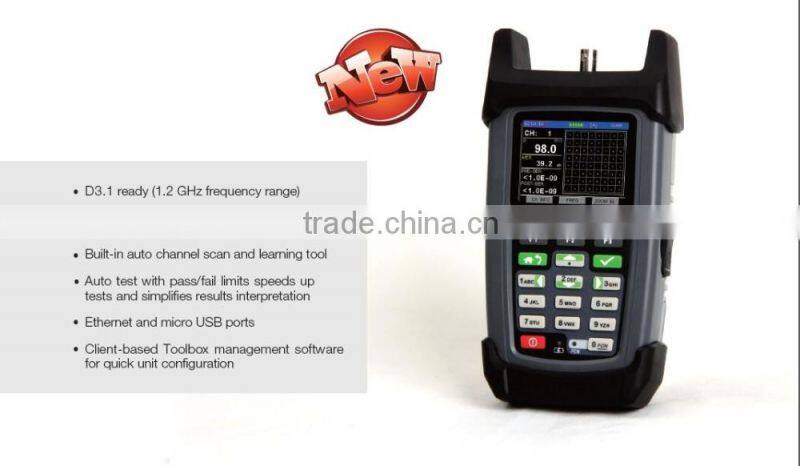

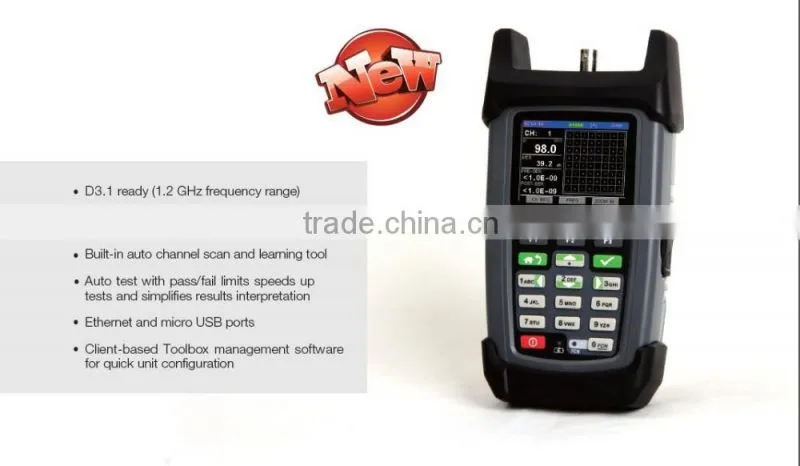

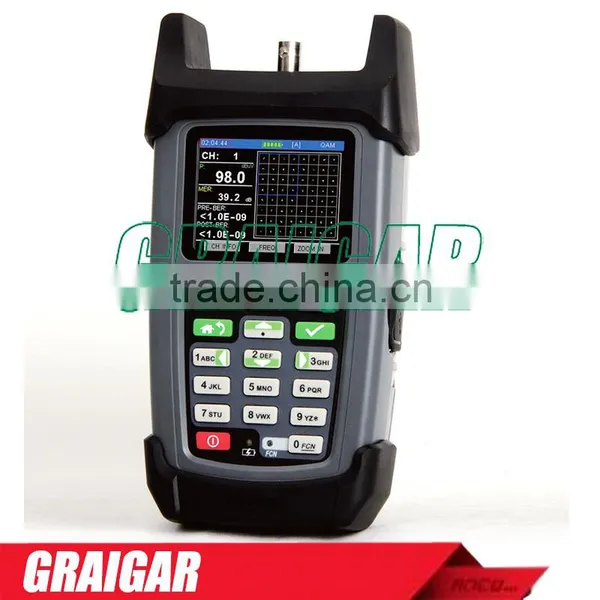

Deviser DS2460Q Catv Meter QAM Analysis Meter
US$ 800 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
deviser
Model Number:
ds2460q
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NEW S7200 Analog Digital Satellite TV Analyzer DVB-C/T/H/T2/S/S2US$ 2,400 - 4,500MOQ: 1 Piece -
NEW S7000 Analog Digital Satellite TV Analyzer DVB-C/T/H/T2/S/S2NegotiableMOQ: 1 Piece
-
Original Noyafa English Version Multi-functional Network Cable Tester LCD Cable Length Tester Breakpoint Tester NF-8601ANegotiableMOQ: 1 Piece
-
Original Noyafa NF-8601W RJ45 LAN Network Cable Tester UTP STP Diagnose Tone Tracer BNC PING/POE RJ11 Telephone Wire TrackerNegotiableMOQ: 1 Piece
-
Original NOYAFA NF-8601 LAN Network Cable Tester Multifunctional Diagnose Tone Tracer BNC PING/POE RJ45 RJ11 Phone Wire TrackerNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
deviser
Model Number
ds2460q

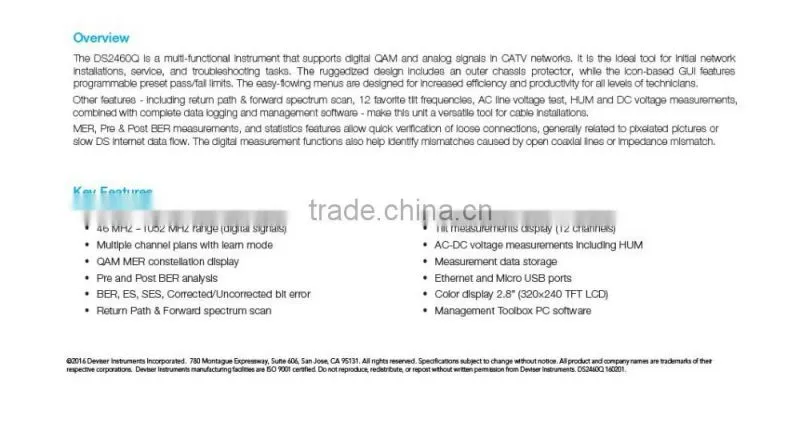

Deviser DS2460Q catv meter QAM Analysis Meter
| Frequency | |
| Frequency Range | 5MHz~1052MHz |
| Frequency Accuracy | ± 50 PPM |
| Frequency Resolution | 10kHz |
| Resolution Bandwidth (-3dB) | 280kHz |
| Normal Spectrum Analysis | |
| Frequency Range | 45MHz~1052MHz |
| Span | Min. Span; 2.5 MHz; 6.25 MHz; 12.5 MHz; 25 MHz; 62.5 MHz; Full Span |
| Fast Spectrum Analysis | |
| Frequency Range | 5MH~1220MHz |
| Span | Min. Span; 12.5 MHz; 25 MHz; 62.5 MHz; Full Span |
| Channel Type | |
| Analog | TV PAL, NTSC |
| Digital | TV QAM 16/32/64/128/256 |
| FM Radio | Single frequency |
| Channel Scan | |
| Number of Channels | 160 channels max |
| Scale | 1, 2, 5, 10dB/div |
| Zoom | 1X, 2X, 3X, 4X, 5X five levels |
| Analog TV | |
| Level Measurement Range | -30dBmV~+60dBmV |
| Level Accuracy | ±2dB |
| Level Resolution | 0.1dB |
| Resolution Bandwidth | 280kHz |
| C/N | >50dB |
| HUM Measurement Range | 2% to 5% |
| Digital TV | |
| Frequency Range | 46 MHz to 1052 MHz |
| Power Level Range | -30dBmV~+60dBmV |
| Power Level Resolution | 0.1dB |
| Power Level Accuracy | ±2dB |
| Demodulation Type | Standard ITU-T J.83 Annex A, B and C |
| Interleave Depth | 128x1~128x4(J.83B);12x17(J.83A/C) |
| Symbol Rate Range | 4 MS/sec to 7 MS/sec |
| Max MER | 41dB |
| MER Accuracy | ± 2dB |
| BER | 1E-3 to 1E-9 |

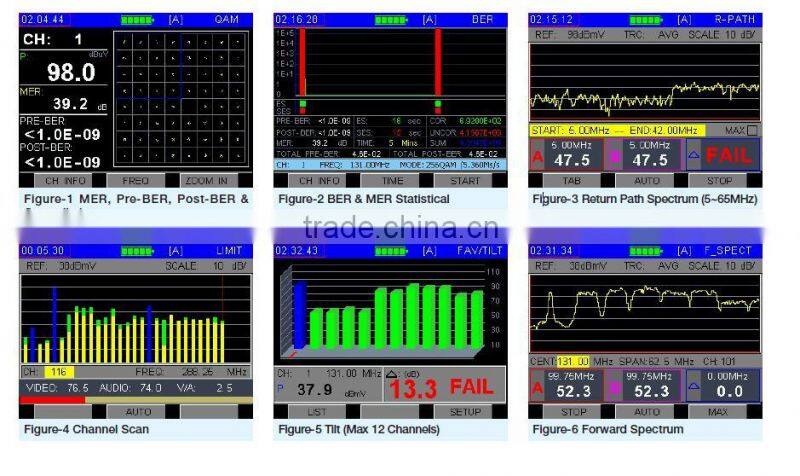

| Constellation Display Mode | QAM64 and QAM256 with zoom capability |
| Spectrum Analysis | |
| Bandwidth | 2.5MHz; 6.25 MHz; 12.5 MHz; 25 MHz; 62.5 MHz; Full Span |
| Scale | 1dB, 2dB, 5dB, 10dB |
| Line Voltage Measurement | |
| Range | 0V to 100V (AC/DC) |
| Accuracy | ± 2V |
| Others | |
| RF Input | 75Ω |
| USB | USB Micro 2.0 |
| Ethernet | 10/100Mbps |

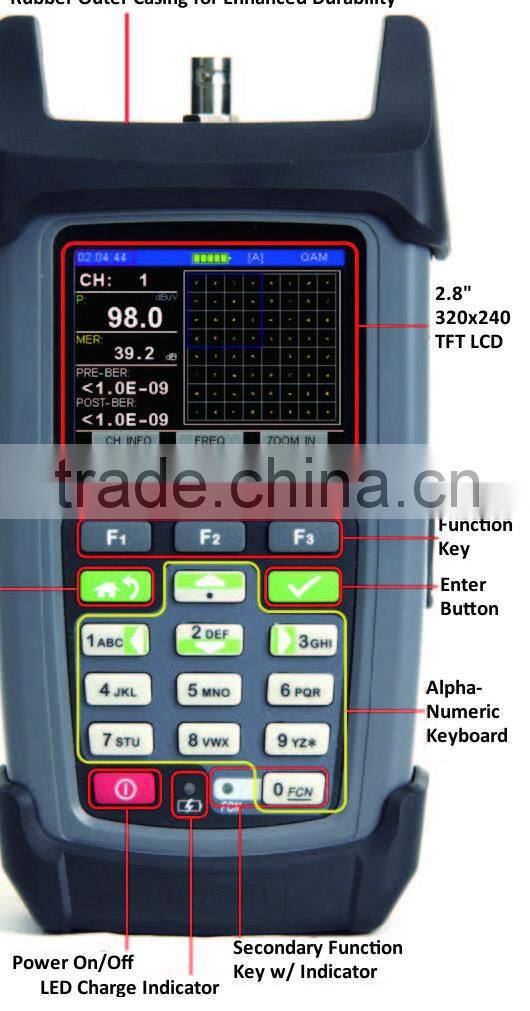

| Display | 2.8” 320x240 TFT LCD |
| AC/DC Adapter | AC 100V to 240V 50-60Hz ,DC 15V/0.9A |

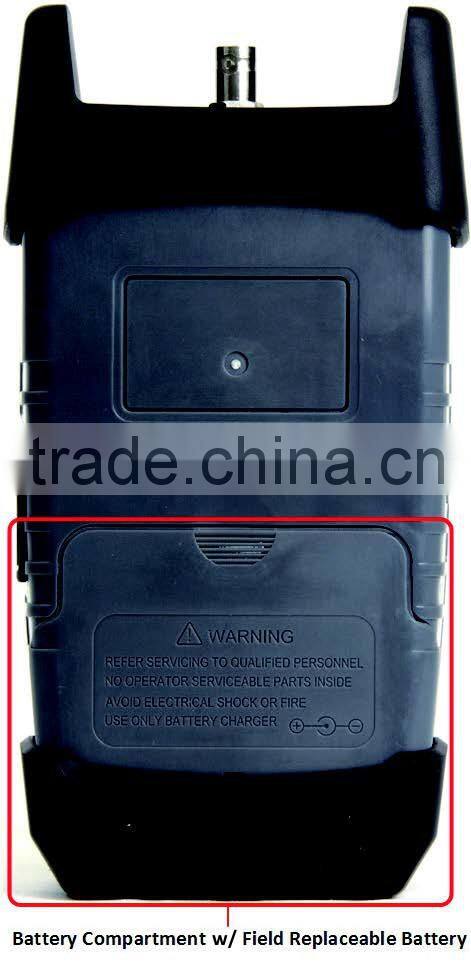

| Battery | 7.4V 2.5Ah Lithium Battery |
| Charge Time | 5 hours |
| Working Time | >5 hours |
| Dimensions (W x H x L) | 200mm × 106mm × 54mm (7.9" x 4.2" x 2.1") |
| Weight | 0.6 kg (1.3 lbs) |
| Working Temperature | -10 ~ +40C |
| Storage Temperature | -20 ~ +70C |
