Specifications
Handheld Signal Level Meter
Frequency Range :46 MHz ~ 1 GHz
Level Measurement Range:30 dBuV ~ 120 dBuV
Working Time > 6 Hours

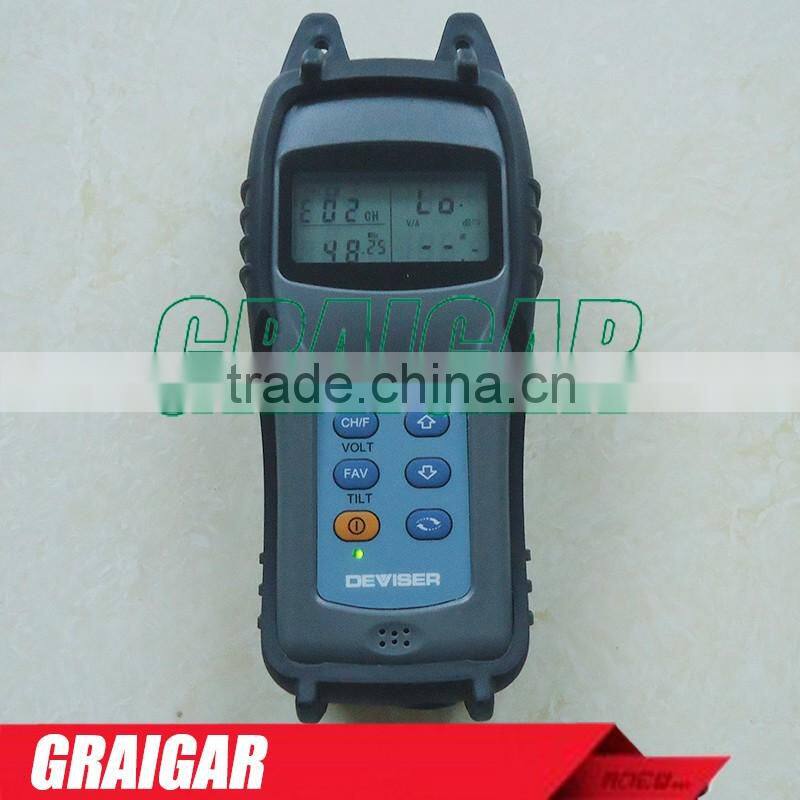

Deviser D2002/2003eviser DS Handheld Signal Level Meter
Overview
DS2002/DS2003 handheld signal level meter has added the streamlined appearance design into the newest model which makes the body smaller, lighter, more practical and convenient to operate.
Several new features such as frequency range (46 MHz ~ 1 GHz), digital channel power measurement and 6 channel tilt have been added into the new DS2003.
Key Features
- More reliable: made of high strength material; passed the various shock and bump tests
- Smart design: high technique integrated design; lighter weight make you enjoy your working
- Level, Tilt and C/N measure
- Channel plan edit(DS2003)
Specifications
|
DS2002 |
DS2003 |
Frequency | ||
Range |
46 MHz ~ 864 MHz |
46 MHz ~ 1 GHz |
Frequency Step |
50 kHz, 100 kHz, 1 MHz, 10 MHz and 100 MHz |
|
Level Measurement | ||
Range |
30 dBμV ~ 120 dBμV |
|
Accuracy |
±2 dB (20 °C ± 5 °C) |
|
Resolution |
0.5 dB |
|
Digital Power Range |
—— |
40 dBμV ~ 110 dBμV |
Voltage | ||
Input Range |
1 V ~ 100 V (AC / DC) |
—— |
Measured Accuracy |
±2 V |
—— |
Resolution |
1 V |
—— |
Others | ||
Dimension |
168 mm × 71 mm × 42 mm |
|
Weight |
368 g (Including the battery) |
|
Working Temperature |
-10 °C ~ 40 °C |
|
Audio |
Built-in speaker (Auto on inSINGLE FREQUENCY mode) |
—— |
Power Supply |
3.6 V / 2.1 AH Ni-MHbattery(Rechargeable) |
3.6 V / 2.5 AH Ni-MH |
Working Time |
≥6 Hours (Shut off theaudioandLCD backlight) |
≥4 Hours |
Charging Time |
10 ~ 12 Hours (Power off the meter) |
|
