Home > Instruments & Meters > Weighing & Measuring Apparatus > Measuring Device > HVP-40(specially for DMM,0~40KV)digital Multimeter High Voltage Probe

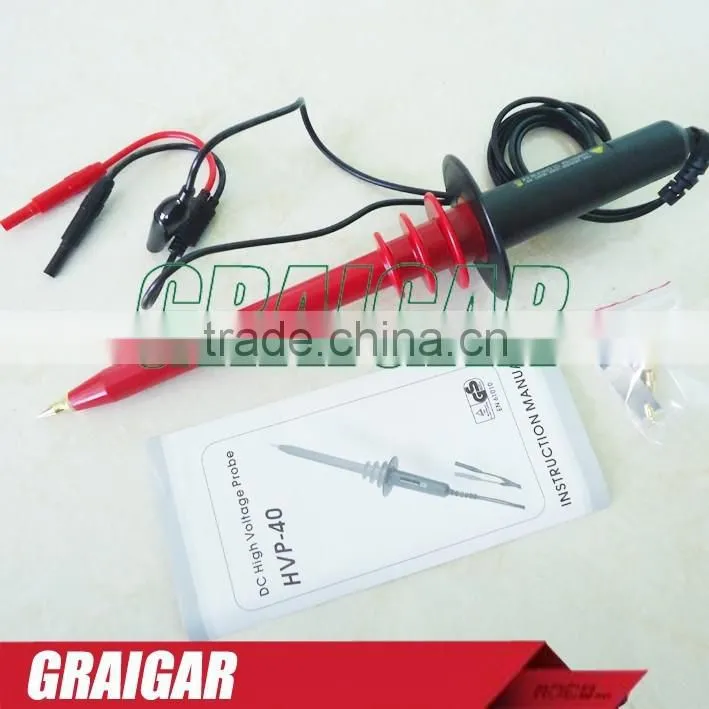

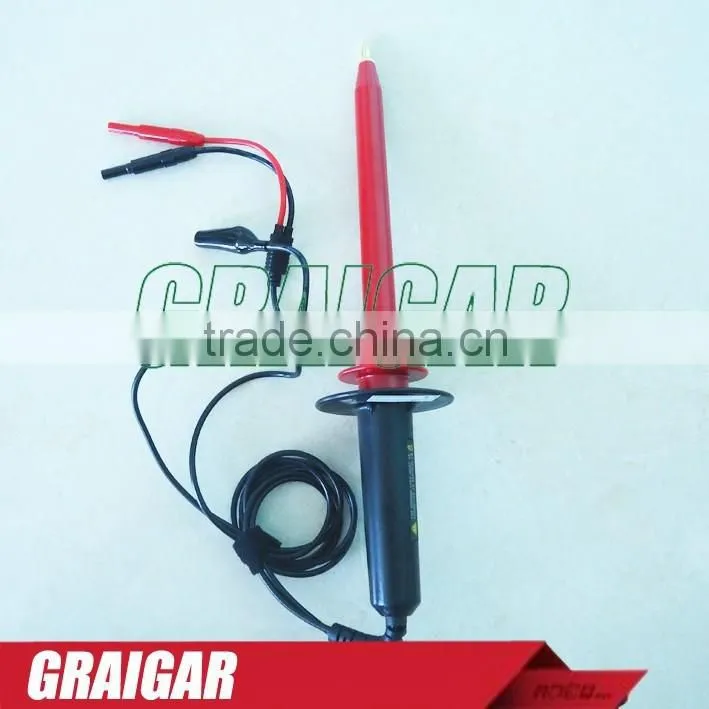

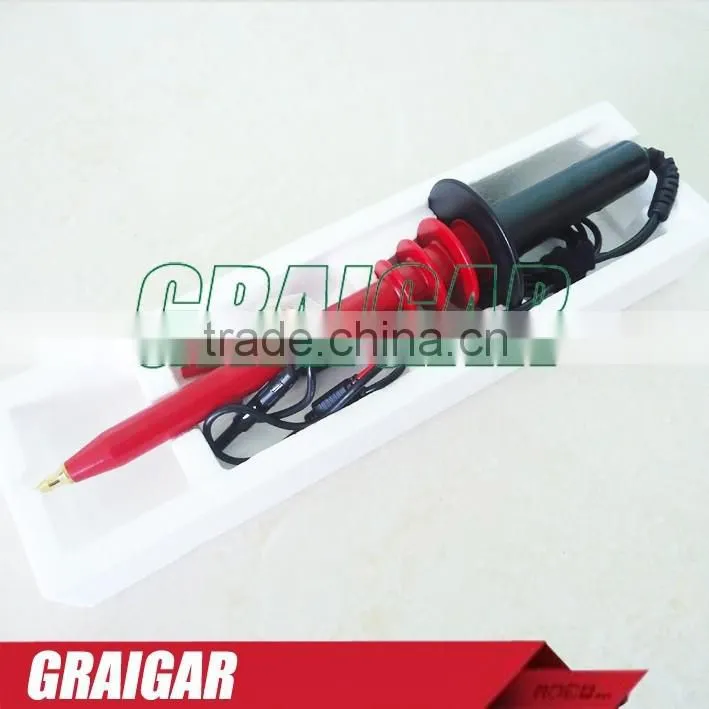

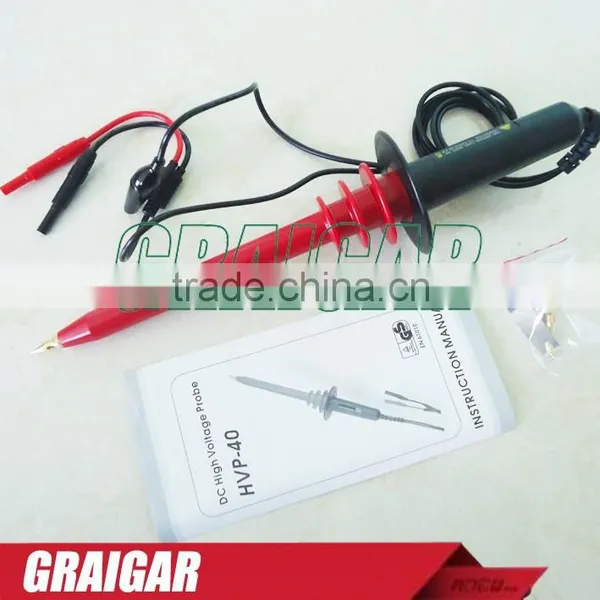

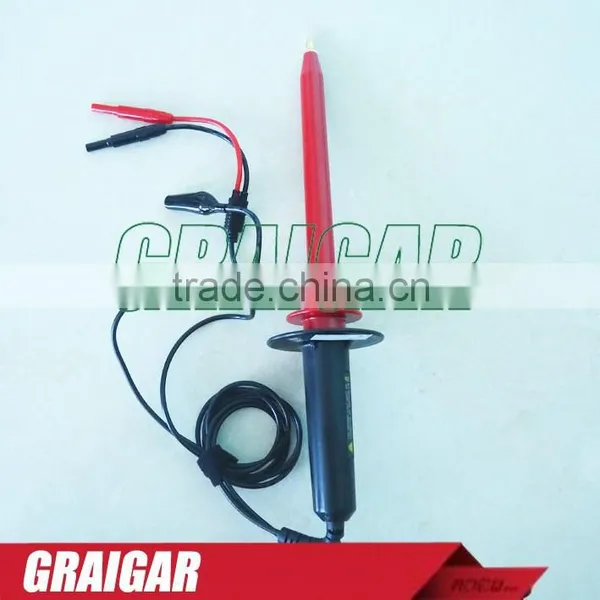

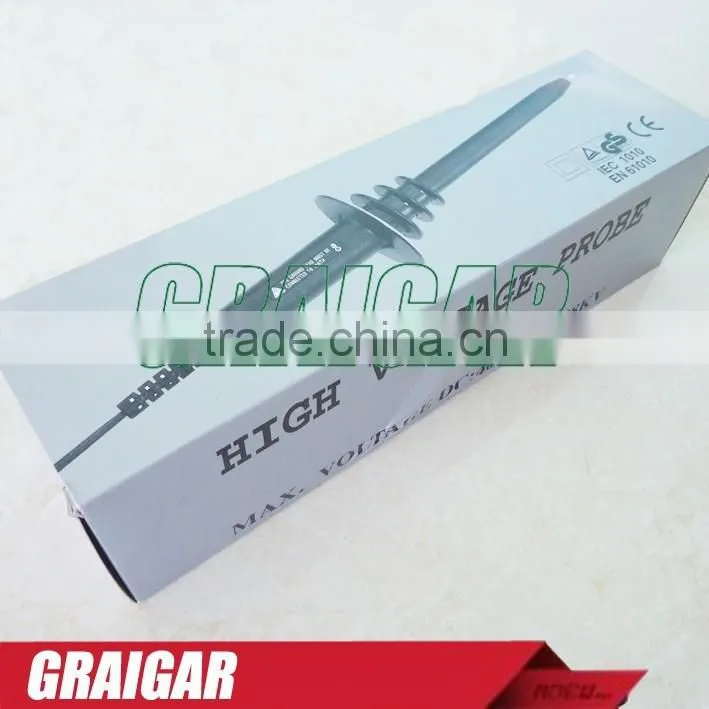

HVP-40(specially for DMM,0~40KV)digital Multimeter High Voltage Probe
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Graigar
Model Number:
HVP-40
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vibrometer Portable LCD Vibration Analyzer Tester Meter UNI-T UT312 With Split Sensor Signal Wire & Sensor Measuring InstrumentsUS$ 180 - 230MOQ: 1 Piece -
VTS - 3D Non Destructive Test Equipment Wire Rope Computer Flaw Detector Elevator Safety InspectionUS$ 1,900 - 1,900MOQ: 1 Piece
-
Portable Ultrasonic Flaw Detector GR650 NDT InstrumentUS$ 1,900 - 1,900MOQ: 1 Piece
-
UNI-T UT311 Portable LCD Vibration Analyzer Tester Meter NDT Vibrograph Vibrometer With Acceleration Sensor in OneUS$ 200 - 250MOQ: 1 Piece
-
AT-280 Coating Thickness Gauge Meter Portable Palm-size Wholeness Amphibious Type Without DamageUS$ 200 - 300MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Graigar
Model Number
HVP-40
HVP-40(specially for DMM,0~40KV)digital multimeter high voltage probe
Model number |
HVP-40 |
Input Resistance |
1000MΩ; |
Attenuation Ratio |
1000:1 |
Max. Operation Voltage |
DC 0~ ± 40KV |
AC 1~ 28KV(50/60Hz) | |
Safety APPL |
EN61010 , UL3111-1 , TUV-GS |
IEC1010 CAT IIPollution 2 | |
Polarity |
Positive/negative are measurable |
Accuracy |
DC:± 1% to 20 KV , ± 2% to 40 KV |
AC:- 5% to - 10% at 50 ~ 60Hz | |
Temperature Coefficient |
≤ 200ppm /°C |
Maximum Loading Current |
≤ 40μA ( at 40KV DC ) |
Maximum Loading Power |
≤ 1.6 watt |
Operating Temperature |
0°C ~ + 50°C |
|
Designated link
|
10MΩ input impedance DMM |
Meter output instructions |
X 1000, 1V→1000V |
|
10V→10KV |
