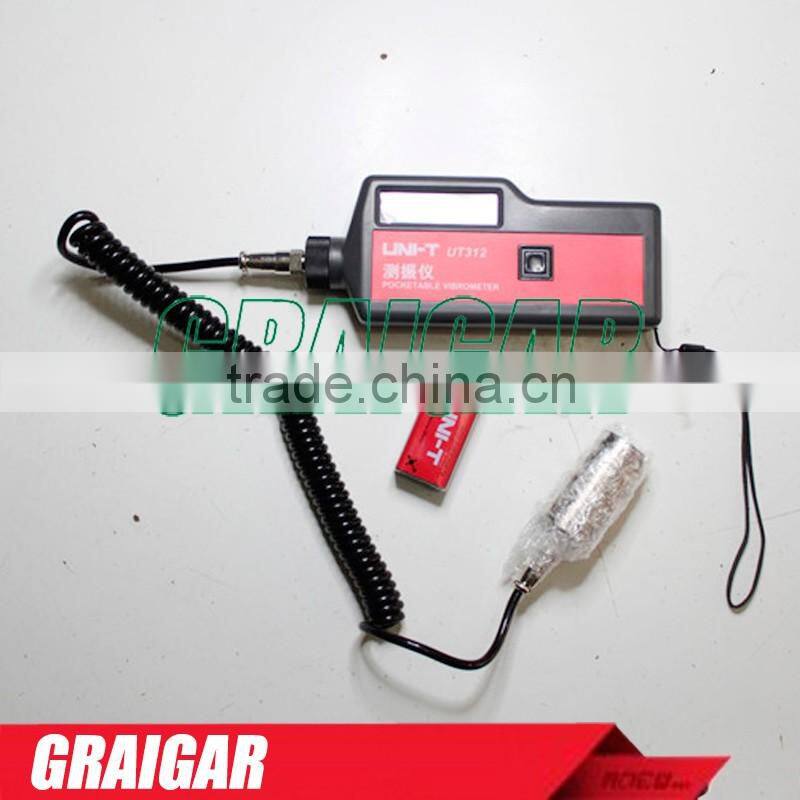

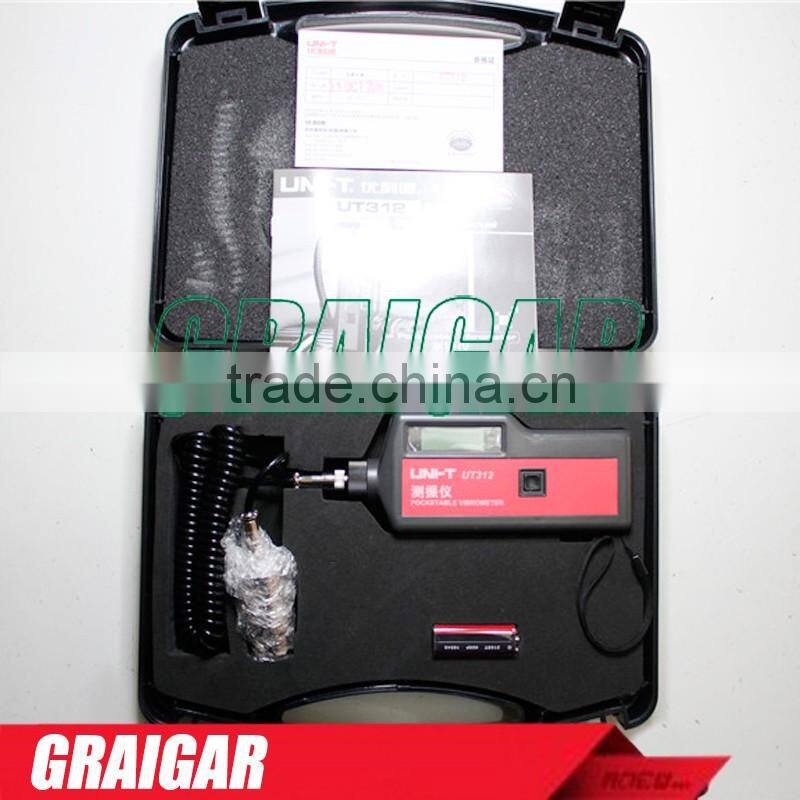

Vibrometer Portable LCD Vibration Analyzer Tester Meter UNI-T UT312 With Split Sensor Signal Wire & Sensor Measuring Instruments
US$ 180 - 230
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
UNI-T
Model Number:
UT312
Usage:
Vibration Testing Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VTS - 3D Non Destructive Test Equipment Wire Rope Computer Flaw Detector Elevator Safety InspectionUS$ 1,900 - 1,900MOQ: 1 Piece -
Portable Ultrasonic Flaw Detector GR650 NDT InstrumentUS$ 1,900 - 1,900MOQ: 1 Piece
-
UNI-T UT311 Portable LCD Vibration Analyzer Tester Meter NDT Vibrograph Vibrometer With Acceleration Sensor in OneUS$ 200 - 250MOQ: 1 Piece
-
AT-280 Coating Thickness Gauge Meter Portable Palm-size Wholeness Amphibious Type Without DamageUS$ 200 - 300MOQ: 1 Piece
-
AT-260 Coating Thickness Gauges Portable Palm-size Wholeness Amphibious Type Without DamageUS$ 200 - 280MOQ: 1 Piece
Brand Name
UNI-T
Model Number
UT312
Usage
Vibration Testing Machine
Vibrometer Portable LCD Vibration Analyzer Tester Meter UNI-T UT312 with Split Sensor Signal Wire & Sensor Measuring Instruments
Introduction
1. UT310 series handheld vibration meter is designed with acceleration sensor and digital measurement circuit. It’s mainly used in measuring the vibration of mechanical equipment, velocity, and acceleration. The measured data are compared with the national, international, corporate, machinery working standard to decide the condition (good, note or dangerous, etc.) of the machine(fan, pump, compressor, motor, etc.).
2. Can be widely used in mechanical manufacturing, electric power, petroleum chemical industry, metallurgy, aerospace and other fields. It’s the ideal measurement tool for purchasing inspection, operation monitoring and maintenance for the rotating machinery equipment.
Specifications
| Specifications | Range | Best Accuracy | |
| Model | UT311 All in one | UT312 Split style | |
| Vibration Acceleration(O-P) | 0.1-199.9m/s² | Frequency response:10-1500Hz,Amplitude error:≤±5% | |
| Amplitude linear error:≤2.0m/s²,≤±10%; >2.0m/s²,≤±5% | |||
| Vibration Velocity(RMS) | 0.1-199.9mm/s | Frequency response:10-1500Hz , Amplitude error:≤±5% | |
| Amplitude linear error:≤2.0mm/s,≤±10%; >2.0mm/s,≤±5% | |||
| Vibration displacement(P-P) | 1 - 1999μm | Frequency response:10-500Hz, Amplitude error:≤±5% | |
| Amplitude linear error:≤20um,≤±10%; >20um, ≤±5% | |||
| Functions | |||
| Data Hold | √ (auto data hold when releasing the measure key) | ||
| Low battery indication | √ | ||
| Auto Power Off | √ (auto power off 1 minutes after releasing the measure key) | ||
| Display Modes | Digital display | ||
| Battery Life | Continuous measuring time > 20 hours | ||
| Maximum Display | 1999 | ||
| General Characteristics | |||
| Battery | 6F22 9V battery | ||
| Product Colour | Red and Grey | ||
| Product Net weight | 230g (including battery) | ||
| Product Size | 185mm x 68mm x 30 mm | ||
| Standard Accessories | Battery, Holster | ||
| Standard Individual Packing | Gift Box, English Manual, Warranty Card. | ||
| Standard Quantity Per Carton | 20 Pcs | ||
| Standard Carton Measurement | 600mm×370mm×474mm | ||
| Standard Carton Gross Weight | About 5 Kg | ||
Accessories
Batteries, (not included)
Holster
Gift Box,
English Manual,
Warranty Card.
