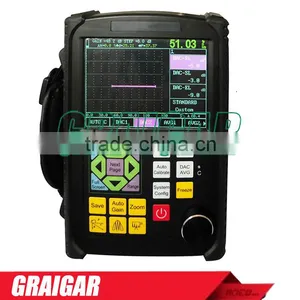

Portable Ultrasonic Flaw Detector GR650 NDT Instrument
US$ 1,900 - 1,900
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GRAIGAR
Model Number:
GR650
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UNI-T UT311 Portable LCD Vibration Analyzer Tester Meter NDT Vibrograph Vibrometer With Acceleration Sensor in OneUS$ 200 - 250MOQ: 1 Piece -
AT-280 Coating Thickness Gauge Meter Portable Palm-size Wholeness Amphibious Type Without DamageUS$ 200 - 300MOQ: 1 Piece
-
AT-260 Coating Thickness Gauges Portable Palm-size Wholeness Amphibious Type Without DamageUS$ 200 - 280MOQ: 1 Piece
-
AT-220F Coating Thickness Gauges Portable Palm-size Wholeness Vortex Method Detect Non-conductive Coating Without DamageUS$ 180 - 240MOQ: 1 Piece
-
Portable Palm-size Coating Thickness Gauge Meter AT-220 Magnetic and Non-magnetic Without DamageUS$ 150 - 210MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
GRAIGAR
Model Number
GR650
Power
Electronic
Usage
Other, flaw detector
Portable ultrasonic flaw detector GR650 NDT instrument
Product Overviews
GRAIGAR 650 is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a workpiece without destruction. It can be used both in a lab and field.
Product Uses
The instrument can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc. It is an essential instrument for non-destructive inspection industry.
Technical Parameters
| Measuring Range | 0~10000mm |
| Vertical Linearity Error | ≤3% |
| Horizontal Linearity Error | ≤0.1% |
| Sensitivity Leavings | ≥62dB |
| Dynamic range | ≥34dB |
| Resolving Power | ≥36dB |
| Frequency Range(MHz) | 0.5 ~ 15 |
| Gain(dB) | 0 ~ 120 |
| Material Velocity(m/s) | 1000 ~ 15000 |
| Measurement Mode | Single,Dual,Thru |
| Reject | 0~80% |
| Pulse Displacement(μs) | -20 ~ +3400 |
| Zero(μs) | 0.0 ~ 99.99 |
| Port Type | BNC / LEMO |
| Operating Temperature (℃) | -20~50 |
| H×W×D(mm) | 240×156×50 |
| Weight(kg) | 1.0(with battery) |

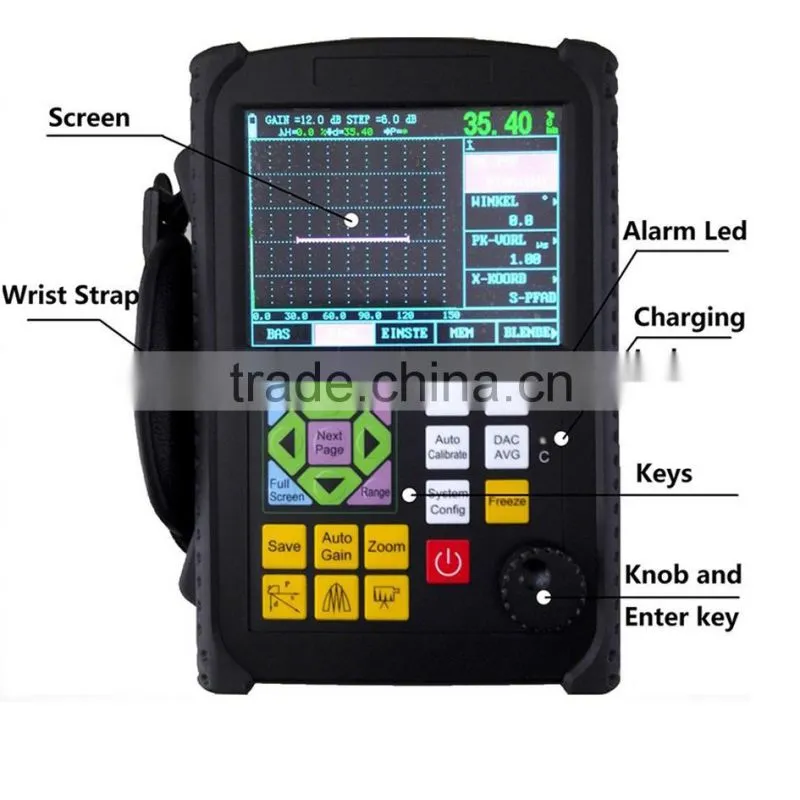

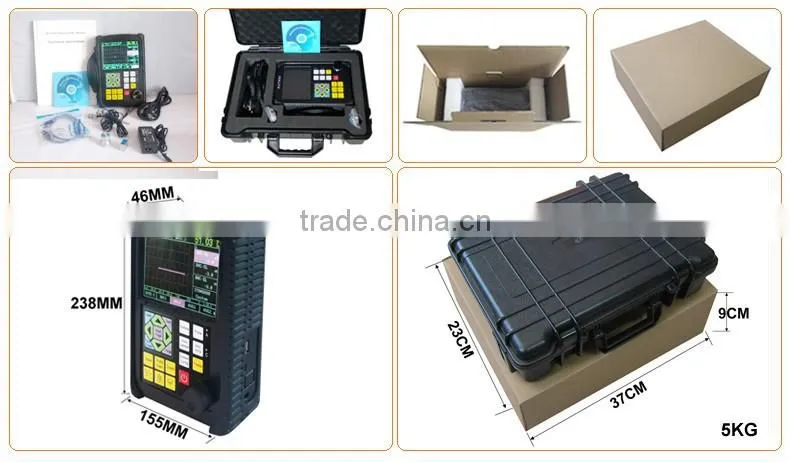

Real Photos
Standard Configuration
| Item | Quantity |
| Main unit | 1 pc |
| 1.5A/9V power adapter | 1 pc |
| probe connecting cable | 2 pcs |
| PC software | 1 pc |
| Connection cable | 1 pc |
| Straight probe | 10mm 4MHz 1 pc |
| Angle probe | 8x9 60° 4MHz 1 pc |
| Carrying case | 1 pc |
| Instruction manual | 1 pc |
