Help CenterHDS3102M-N OWON 3.8" LCD Display Handheld Scopemeter+Multimeter+Cymometer/Dual Digital Storage Oscilloscope/Bandwidth 100MHz
Related Products
-
OWON Portable Digital Storage Oscilloscope PDS6062S 60HMz 250MS/s With FFTUS$ 300 - 350MOQ: 1 Piece -
OWON PDS5022S Portable Digital Storage Oscilloscope (25MHz)US$ 250 - 300MOQ: 1 Piece
-
OWON HDS2062M-N Handheld Channel DSO With 60 MHz Bandwidth 250 MSa/s Digital MultimeterUS$ 600 - 700MOQ: 1 Piece
-
OWON 8.0inch Dual Digital Storage Oscilloscope PDS7102T With 100MHzUS$ 400 - 500MOQ: 1 Piece
-
OWON 8inch Dual Digital Storage Oscilloscope Bandwidth 100MHz PDS8102TUS$ 600 - 700MOQ: 1 Piece

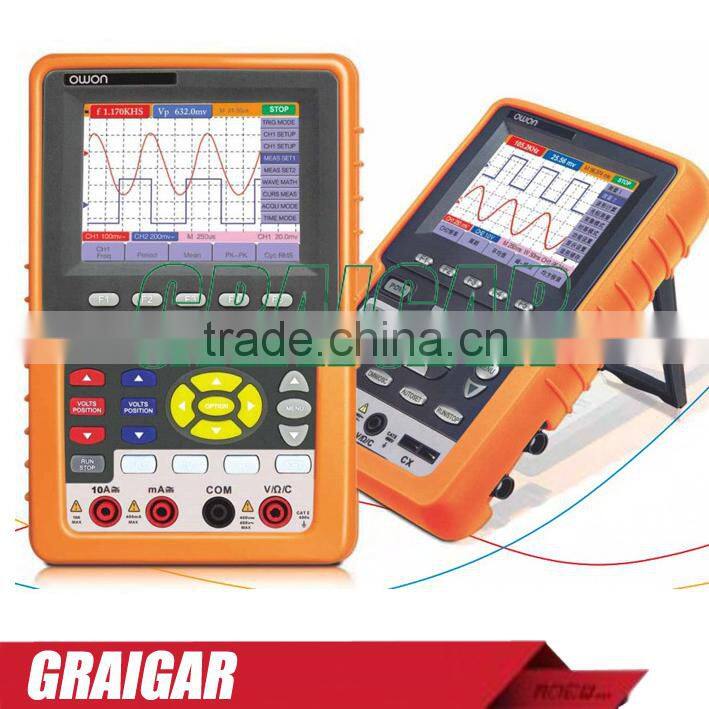

The new digital multimeter and storage oscilloscope HDS3102M-N offers reliably and high quality measurement technology for a really good price.
The colorful LCD panel with the resolution of 640 ¡Á 480 makes the wave easy to read, especially when a big data or many wave covered reciprocally. Wherever and whenever, you will view the best display for all info by this LCD panel. The HDS3102M-N offers 20 MHz bandwidth and a sample rate of 100 MSa/s in dual Channel.
- Autoscale
- 20 Automatic Measurements
- 3 in 1(DSO+Multimeter+Cymometer)
- Bandwidth: 20MHZ-100MHz
- Support USB for data transmission to PC
- Replaceable li-ion battery back up (6 hours)
- USB Flash Disk Storage
- Waveform Record & Replay (HDS2062M-N,HDS3102M-N)
- FFT
Oscilloscope Specification | ||||
Model Name |
HDS1022M-N |
HDS2062M-N |
HDS3102M-N |
|
Bandwidth |
20MHz |
60MHz |
100MHz |
|
Sample Rate ( Real time ) |
100MS/s |
250MS/s |
500MS/s |
|
Horizontal Scale(S/div) |
5ns/div¡«100s/div |
5ns/div¡«100s/div |
||
Rise time(at input, typical) |
≤17.5ns |
≤5.8ns |
≤3.5ns |
|
Display |
3.7 inch color display with TFT panel(640×480 pixels, 65535 colors) |
|||
Channels |
Dual |
|||
Input impedance |
1MΩ±2%£¬in parallel with 20pF±3pF |
|||
Record length |
Max. 6000 points on each channel |
|||
Interpolation |
(sin x)/x |
|||
Probe attenuation factor |
1X£¬10X£¬100X£¬1000X |
|||
Input coupling |
DC, AC, GND |
|||
DC accuracy(Average) |
Average>16:±(5% reading+0.05div) for ¡÷V |
|||
Vertical Sensitivity |
5mV/div¡«5V/div (at input) |
|||
Vertical resolution (A/D) |
8 bit(2 channels simultaneously ) |
|||
Max. Input Voltage |
400V (PK-PK) (DC + AC PK-PK, 1MΩ input impedance, Probe attenuation 10:1) |
|||
Trigger Type |
Edge, Video, Alternate |
|||
Trigger Mode |
Auto, Normal, Single |
|||
Trigger level |
±6 divisions from screen center |
|||
Acquisition modes |
Sample, Peak Detect and Average |
|||
DC gain accuracy |
±3% |
|||
Automatic Measurement |
Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot |
|||
Waveform math |
£«, £, ×, ÷, FFT |
|||
Waveform storage |
4 waveforms |
|||
Lissajou’s |
Bandwidth |
20MHz |
60MHz |
100MHz |
Phase difference |
±3 degrees |
|||
Communication interface |
USB |
|||
Power supply |
100V-240V AC, 50/60Hz |
|||
Li-ion battery |
7.4V, 6 hours operation |
|||
- 1 x HDS3102M-N Digital
- 1 x Power Cord
- 1 x Switching Power Supply
- 2 x Probes
- 2 x Multimeter Leads
- 1 x USB
- 1 x Output
- 1 x Capacitance Module
- 1 x Metal Case
- 1 x CD
