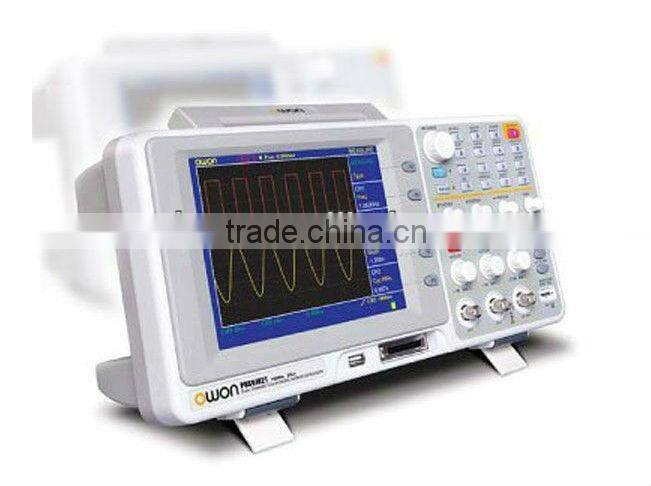

OWON 8.0inch Dual Digital Storage Oscilloscope PDS7102T with 100MHz

Oscilloscope Specification

Model

PDS5022S

PDS6062S

PDS6062T

PDS7102T

Bandwidth

25MHz

60MHz

100MHz

Sample Rate(Real time )

100MS/s

250MS/s

500MS/s

Rise time

≤14ns

≤5.8ns

≤3.5ns

Display

7.8 inch color LCD,STN screen,
640×480 pixels

8.0 inch color LCD,TFT screen,
640×480 pixels

Channel

Dual channels+external trigger

Sampling mode

Normal sample, Peak detect and Average

Record length

5K points on each channel

6K points on each channel

Horizontal scale (s/div)

5ns/div-100s/div step by 1-2.5-5

5ns/div-100s/div step by 1-2-5

Vertical sensitivity

5mV~5V/div (at BNC input)

DC Gain Accuracy

±5%

±3%

Max. input voltage

300V(DC+AC PK-PK,1MΩ input impedance,Probe
attenuation 10:1)

400V(DC+AC
PK-PK)

Input impedance

1MΩ±2%, in parallel with 20pF±3pF

Input coupling

DC, AC

DC, AC, GND

Vertical resolution (A/D)

8 bits (2CH simultaneously)

Sampling rate / relay
time accuracy

±100ppm

Interval(ΔT)accuracy
(DC~100MHz)

Single:±(1 interval time+100ppm×reading+0.6ns) Average>16:±(1 interval
time+100ppm×reading+0.4ns)

Waveform storage

4 waveforms

Cursor measurement

ΔV and ΔT between cursors

Line/field frequency
(Video)

Support NTSC, PAL and SECAM

Acquisition modes

Sample, Peak Detect and Average

Interpolation

(sin x)/x

Displacement

±50V(500mV-5V), ±2V(5mV-200mV)

Trigger type

Edge, Video

Edge, Video,
Alternate

Trigger mode

Auto, Normal, Single

Trigger level

±6 divisions from screen center

Automatic measurement

Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot
,Preshoot,Risetime,Falltime,+Width,-Width,+Duty,-Duty, Delay A→B↑,
Delay A→B↓

Waveform math

+, -, FFT

Lissajou’s
figure

Bandwidth

25MHz

60MHz

60MHz

100MHz

Phase difference

±3 degrees

Interface

USB Data Cable (Transfer waveform data to a PC)

Power supply

100V-240V AC, 50Hz/60Hz, CATII

Power consumption

≤15W

Fuse

1A, T grade, 250V
