Home > Instruments & Meters > Electronic Instrument > Oscilloscope > New OWON 8" LCD Deep Memory Digital Storage Oscilloscope SDS8102 100HMz 2GS/s

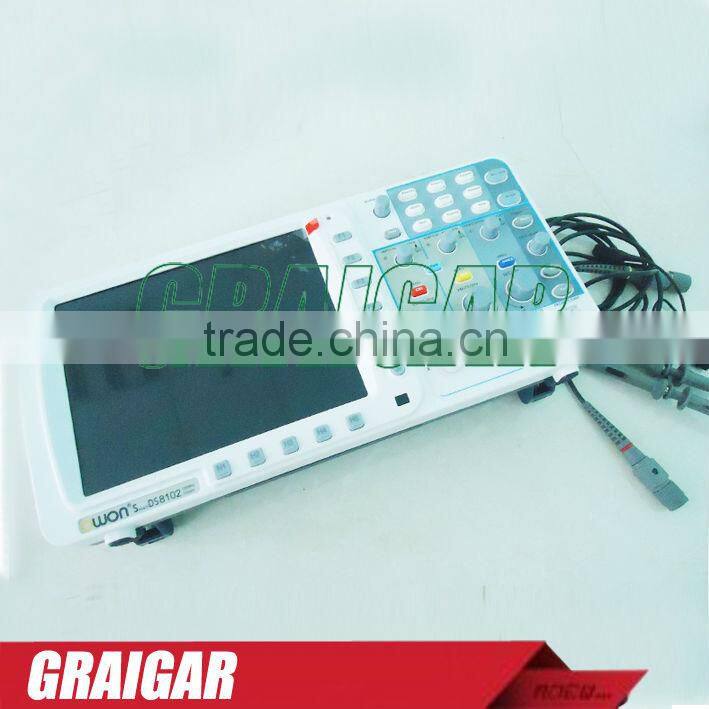

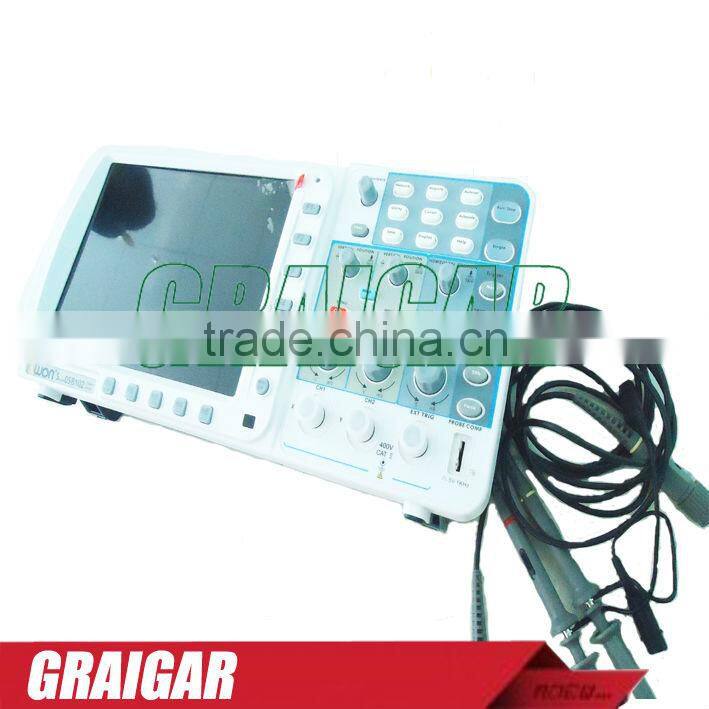

New OWON 8" LCD Deep Memory Digital Storage Oscilloscope SDS8102 100HMz 2GS/s
US$ 400 - 900
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OWON
Model Number:
SDS8102
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OWON 8inch Dual Digital Storage Oscilloscope Bandwidth 100MHz PDS8102TUS$ 600 - 700MOQ: 1 Piece -
OWON 8.0inch Electrical Instrument Oscilloscope Bandwidth 00MHz PDS8202TUS$ 800 - 900MOQ: 1 Piece
-
OWON 8.0inch Dual Digital Storage Oscilloscope PDS7102T With 100MHzUS$ 400 - 500MOQ: 1 Piece
-
OWON PDS5022S Portable Digital Storage Oscilloscope (25MHz) Sample Rate(Real Time )100MS/sUS$ 250 - 300MOQ: 1 Piece
-
OWON Portable Digital Storage Oscilloscope PDS6062S 60HMz 250MS/s With FFTUS$ 300 - 350MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
OWON
Model Number
SDS8102
New OWON 8" LCD Deep Memory Digital Storage Oscilloscope SDS8102 100HMz 2GS/s
SmartDS Series Deep memory digital storage oscilloscope
10M record length with highest 3.2GS/s sample rate
AutoScale function to simplify the operation
Smart design body with easy workplace
Come with SVGA port to enlarge waveform display
8 inch high definition TFT display (800 x 600 pixels)
Super capacity lithium battery for optional
Models in the SmartDS Series
| Model | SDS6062 | SDS7102 | SDS8102 | SDS8202 | SDS8302 | SDS9302 | ||
| Bandwidth | 60MHz | 100MHz | 100MHz | 200MHz | 300MHz | 300MHz | ||
| Sample rate(Real time) | 500MS/s | 1GS/s | 2GS/s | 2GS/s | 2.5GS/s | 3.2GS/s | ||
| Horizontal Scale(S/div) | 5ns/div~100s/div, step by 1~2~5 | 2ns/div~100s/div,step by 1~2~5 | 1ns/div~100s/div, step by 1~2~5 | |||||
| Rise time (at input, typical) | ≤ 5.8ns | ≤ 3.5ns | ≤ 1.7ns | ≤ 1.17ns | ||||
| Channels | Dual | |||||||
| Display | 8" color LCD,TFT display,800x600 pixels,65535 colors | |||||||
| Dimension | 340mm×155mm×70mm | |||||||
| Weight | 1.8kg | |||||||
Main Features:
1.Bandwidth:100MHz
2.Sample rate:1GS/s
3.10M record length for each channel
4.Autoscale function
5.Large 8-inch 800x600 pixels display
6.Pass/Fail function
7.SVGA output(optional)
8.Waveform record & replay
9.Battery (Optional)7.4V/8000mAh
Application:
Design and Debug Circuit function test Mixed signal circuit test
Identified signals logic information Education & Training
| Oscilloscope Specification | |||||||
| Model | SDS6062 | SDS7102 | SDS8102 | SDS8202 | SDS8302/SDS9302 | ||
| Vertical System | Vertical resolution (A/D) | 8 bits Resolution (2 channels simultaneously ) | |||||
| Vertical sensitivity | 2mV/div~10V/div(at input) | ||||||
| Displacement | ±10div(5mV~10v) | ±1V(2mV~100mV), ±10V(200mV~1V),±100V(2V~10V) | |||||
| Analog Bandwidth | 60MHz | 100MHz | 200MHz | 300MHz | |||
| Single bandwidth | Full bandwidth | ||||||
| low frequency | ≥ 5Hz | ||||||
| Rise time (at input, typical) | ≤ 5.8ns | ≤ 3.5ns | ≤ 1.7ns | ≤ 1.17ns | |||
| DC gain accuracy | ±3% | ||||||
| DC accuracy(Average) | Average > 16: ±(3% rdg + 0.05 div) for ΔV | ||||||
| Measurement | Cursor measurement | ΔV and ΔT between cursors | |||||
| Automatic measurement | Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time,Fall Time, DelayA→B , DelayA→B , +Width, -Width, +Duty, -Duty | ||||||
| Waveform Math | +, -, ×, / ,FFT | ||||||
| Waveform storage | 15 waveforms | ||||||
| Lissajou’s figure | Bandwidth | Full bandwidth | |||||
| Phase difference | ±3 degrees | ||||||
| Communication interface | USB, support USB flash disk storage, SVGA | ||||||
| Trigger | Trigger level range | ±6 divisions from screen center | |||||
| Trigger level accuracy | ±0.3div | ||||||
| Horizontal Trigger displacement | Pre-trigger: 655 div,Post-trigger: 10 div | ||||||
| Trigger Holdoff range | 100ns~10s | ||||||
| Edge trigger | Rising, Falling | ||||||
| Pulse Trigger | Trigger condition | Positive pulse:>, <, = negative pulse:>, <, = | |||||
| Pulse width range | 24ns~10s | ||||||
| Video Trigger | NTSC, PAL, SECAM | ||||||
| Slope Trigger | Trigger condition | Positive pulse:>, <, = negative pulse:>, <, = | |||||
| Time setting | 24ns~10s | ||||||
| Alternate Trigger | Edge, Pulse, Video, Slope | ||||||
| Waveform record |
Waveform quantity | 1~1000 | |||||
| Interval time | 1ms~1000s | ||||||
| Display | 8" color LCD,TFT display,800x600 pixels,65535 colors | ||||||
| Power Supply | 100~240VAC RMS, 50/60Hz, CAT II | ||||||
| Power consumption | < 18W | ||||||
| Dimension Weight | 340mm(L)×155mm(H)×70mm(W) 1.8kg (without battery) | ||||||
