OWON 8.0inch Electrical Instrument Oscilloscope Bandwidth 00MHz PDS8202T

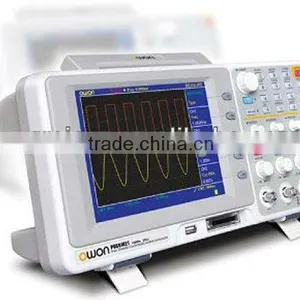

OWON 8.0inch Electrical Instrument Oscilloscope Bandwidth 00MHz PDS8202T thumbnail-1

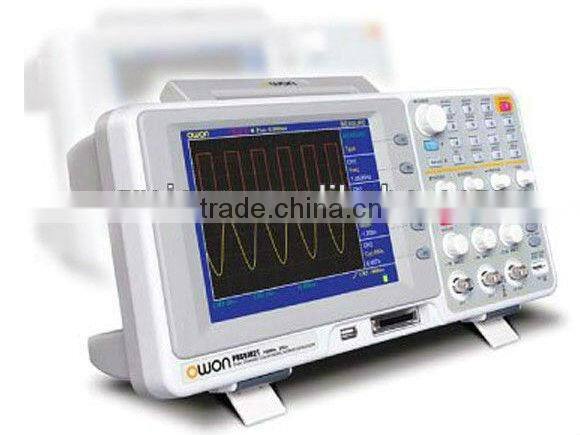

OWON 8.0inch Electrical Instrument Oscilloscope Bandwidth 00MHz PDS8202T photo-1
US$ 800 - 900 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OWON
Model Number:
PDS8202T
Contact Supplier Request Quote Chat Now
Shenzhen Graigar Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OWON
Model Number PDS8202T

Specifications

OWON 8.0inch Electrical Instrument Oscilloscope (200M ) PDS8202T

OWON 8.0inch Electrical Instrument Oscilloscope (200M ) PDS8202T





Sample rate (Real time):2GS/s(1GS/S for dual channels)

Horizontal Scale(S/div):1ns/div-100s/div,step by 1-2-5

Rise time (at input typical):≤1.7

Channels:Dual channels + external trigger

Display:8.0 inch color LCD,TFT screen,640x480 pixels

Isolation between channel:50Hz(100:1),15MHz(40:1);

Input impedance:1MΩ±2%, in parallel with20pF±3pF;

Acquisition modes:Sample, Peak Detect and Average

Probe attenuation factor:1X,10X,100X,1000X

Max. input voltage: 400V(DC + AC PK-PK)

Record length:2M on each channel

Sampling rate/relay time accuracy:±100ppm

Interpolation:(sin x)/x



Vertical resolution (A/D):8 bit (2 channels simultaneously )

Displacement:±50V(500mv-5V); ±2V(5mv-200mv)

Vertical sensitivity:2v/div- 10v/div(at input)

DC gain accuracy:±3%

Trigger type:Edge, Video,Alternate,Pulse,Slope

Trigger level: ±6 divisions from screen center

Trigger mode:Auto, Normal, Single

Automatic measurement:Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot,

Pre - shoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A B, Delay A B

Waveform Math:+, -- ,x.÷,FFT

Waveform storage:4 waveforms

Communication interface:USB

Power supply: 100V-240V AC, 50/60Hz,CAT

Fuse:1A , T class, 250V



OWON 8.0inch Electrical Instrument Oscilloscope Bandwidth 00MHz PDS8202T
