Home > Instruments & Meters > Electronic Instrument > Oscilloscope > DSO4072C 2 Channel Digital Oscilloscope,DSO4072C 1 Channel Arbitrary Waveform Generator

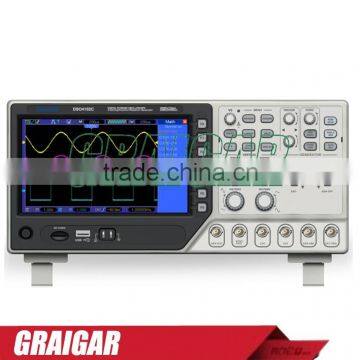

DSO4072C 2 Channel Digital Oscilloscope,DSO4072C 1 Channel Arbitrary Waveform Generator
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Graigar
Model Number:
DSO4072C
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2 Channel Digital Oscilloscope DSO4102C,1 Channel Arbitrary/Function Waveform GeneratorNegotiableMOQ: 1 Piece -
DSO4202C Digital Oscilloscope,High-frequency Oscilloscope,Lower Power Consumption DSO4202CNegotiableMOQ: 1 Piece
-
Oscilloscope Probe CP-3601R Bandwidth: DC~600MHz Fix X10; Readout Function EN61010-031, 600V CAT INegotiableMOQ: 1 Piece
-
Oscilloscope Probe CP-3501Rpro Bandwidth: 500 MHz Cursor Readout: O Max. Working Voltage: CAT I 600V CAT II 300V Division RatiNegotiableMOQ: 1 Piece
-
Oscilloscope Probe CP-3351R Bandwidth 350MHz Read Out Function, X10 FIXNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Graigar
Model Number
DSO4072C
DSO4072C 2 Channel Digital Oscilloscope,DSO4072C 1 Channel Arbitrary Waveform Generator
| Slope Trigger Mode | Trigger when (< , > , = , or ≠ ); Positive slope or Negative slope | ||
| Slope Trigger Point | Equal: The oscilloscope triggers when the waveform slope is equal to the set slope. | ||
| Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope. | |||
| Less than: The oscilloscope triggers when the waveform slope is less than the set slope. | |||
| Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope. | |||
| Time Range | 20ns ~ 10s | ||
| Overtime Trigger | |||
| Over Time Mode | Rising edge or Falling edge | ||
| Time Range | 20ns ~ 10s | ||
| Alternative Trigger | |||
| Trigger on CH1 | Internal Trigger: Edge, Pulse Width, Video, Slope | ||
| Trigger on CH2 | Internal Trigger: Edge, Pulse Width, Video, Slope | ||
| Trigger Frequency Counter | |||
| Readout Resolution | 6 digits | ||
| Accuracy (typical) | ±30ppm (including all frequency reference errors and ±1 count errors) | ||
| Frequency Range | AC coupled, from 4Hz minimum to rated bandwidth | ||
| Signal Source | Pulse Width or Edge Trigger modes: all available trigger sources | ||
| The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed. | |||
| Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as triggerable events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time. | |||
| Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity. | |||
| Video Trigger mode: The Frequency Counter does not work. | |||
