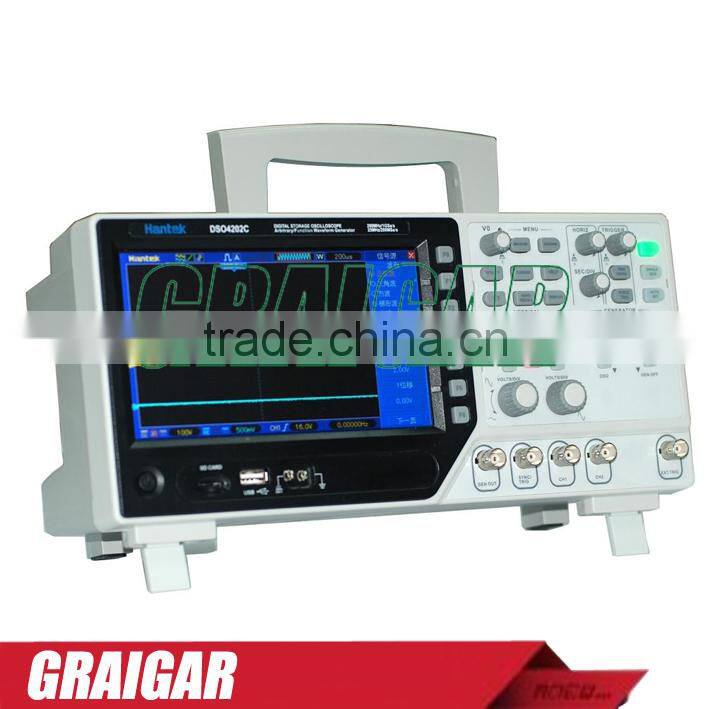

2 Channel Digital Oscilloscope DSO4102C,1 Channel Arbitrary/Function Waveform Generator

2 Channel Digital Oscilloscope DSO4102C,1 Channel Arbitrary/Function Waveform Generator

Feature:

• 2 Channel Digital Oscilloscope + Arbitrary/Function Waveform Generator + Synchronizing Signal + External Trigger;
• The Keys for osilloscope and waveform generator is seperated for convenient to operate it simultaneously;
• Large and clear display (7 inch 64K color LCD display, Resolution 800x480), more clear and realistic waveform;

•  Oscilloscope: 1GSa/s Sample Rate, 200/100/70MHz Bandwidth, more than 20 kinds of auto measurement functions;
• Powerful Trigger Function: Edge, Video, Pulse, Slope, Over time, Alternative;
• Arbitrary/Function Waveform Generator: 25MHz, 12 bits resolution, 200MHz DDS, Arbitrary wave/square wave/sine wave/triangle wave/trapezoidal wave/pulse wave/DC is easy to simulate transducer.

• Support SD card, VGA function (optional);
• Integrated USB Host, Support USB disk storage, USB interface/SD card system update.

• Trigger Types	Edge, Video, Pulse, Slope, Over time, Alternative
  Trigger Source	CH1, CH2, EXT, EXT/5, AC Line
  Trigger Modes	Auto, Normal, Single
  Coupling Type	DC, AC, Noise Reject, HF Reject, LF Reject
  Trigger Sensitivity (Edge Trigger Type)	DC(CH1,CH2):
  	1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full;
  	DC(EXT):
  	200mV from DC to 100MHz; 350mV from 100MHz to 200MHz;
  	DC(EXT/5):
  	1V from DC to 100MHz;1.75V from 100MHz to 200MHz;
  	AC: Attenuates signals below 10Hz;
  	HF Reject: Attenuates signals above 80kHz;
  	LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz
  Trigger Level Range	CH1/CH2: ±8 divisions from center of screen;
  	EXT: ±1.2V;
  	EXT/5:±6V
  Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns	CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen;
  	EXT: ± (6% of setting + 40mV);
  	EXT/5: ± (6% of setting + 200mV);
  Set Level to 50%(typical)	Operates with input signals ≥50Hz



•
