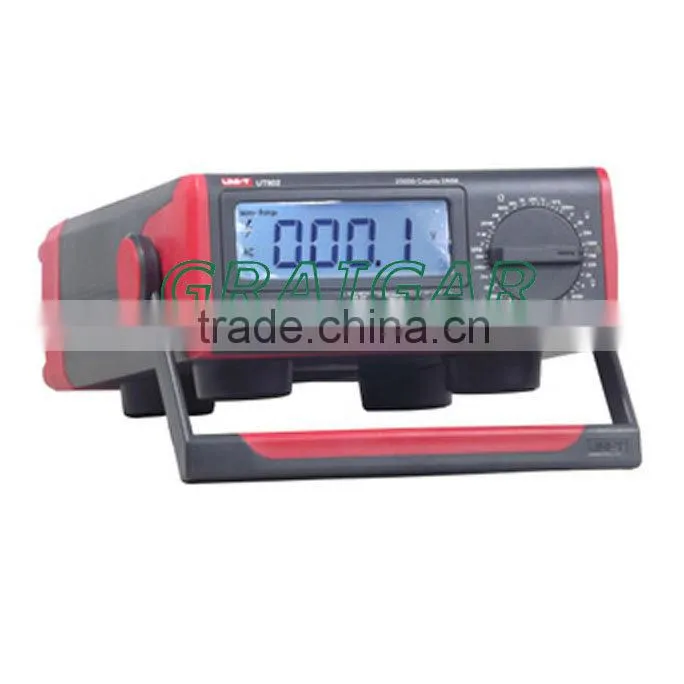

1KV/10A,Temp.:-40-1000C, 19999 Max. Display , Digital Bench Type Digital Multimeter UT802

Name: 1KV/10A,Temp.:-40-1000C, 19999 Max. Display , Digital Bench Type Digital Multimeter UT802
Brand: Uni-Trend
SKU: 130769223

US$ 150 - 160 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Uni-Trend

Model Number:

UT802

Shenzhen Graigar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Uni-Trend

Model Number UT802

Measuring Current Range 10A

Measuring Voltage Range 1000V

Measuring Resistance Range 20M

Measuring Capacitance Range 200uF

Dimensions 685 x 370 x 325mm

Specifications

1KV/10A,Temp.:-40-1000C, 19999 Max. display , Digital Bench Type Digital Multimeter UT802

1KV/10A,Temp.:-40-1000C, 19999 Max. display , Digital Bench Type Digital Multimeter UT802 free shipping

Bench Type Digital Multimeter UT802
1.CE certified;
2.Power: AC220V/50HZ,1.5VBattery *6(R14),
3.Max. Display: 19999

Bench Type Digital Multimeter UT802

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
DC Voltage	200mV/2V/20V/200V/1000V	±(0.1%+3)
AC Voltage	2V/20V/200V/1000V	±(0.5%+20)
DC Current	200µA/2mA/20mA/200mA/10A	±(0.5%+20)
AC Current	2mA/20mA/200mA/10A	±(0.8%+40)
Resistance	200W/2kW/20kW/200kW/2MW/20MW	±(0.5%10)
Capacitance	20nF/2µF/200µF	±(4%+10)
Frequency	2kHz/200kHz	±(1.2%+10)
Temperature (°C)	-40°C ~ 1000°C	±(1.2%25)
Special Functions
Transistor			√
Sleep Mode			√
Diode			√
Continuity Buzzer			√
Display Backlight			√
REL			√
Max/Min Mode			√
Low Battery Display			√
Input Impedance for DC Voltage Measurement	>10MW		√
Data Hold			√
Max. Display	19999

GENERAL CHARACTERISTICS

Power	AC220V/50Hz or 1.5V Battery x 6 (R14)
LCD Size	108 x 34.5mm
Product Colour	Red and Grey
Product Net Weight	1500g
Product Size	300 x 245 x 105mm
Standard Accessories	Test Lead, AC220V Power Cord, Power Adapter, English Manual, Point Contact Temperature Probe, Multi-Purpose Socket
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	4 pcs
Standard Carton Measurement	685 x 370 x 325mm (0.082CBM Per Export Carton)
Standard Carton Gross Weight	14kg
