High speed l flatbed plotter cutter with servo
- 100 Set / Sets per Month
- any port of China
- T/T L/C D/P D/A Credit Card PayPal
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- High Capacity 3200mm A3 A4 Paper Writing Paper Recycling Machine, Office Paper Product Machinery for Sale
- Best Price 3200 Model Office Paper Copy Paper Manufacturing Line with Good Reputation
- Henan Toilet Tissue Paper Cutter/Cutting Machine with High Quality
- 1880mm Type Napkin Paper Making Machine Made in China
- Manufacturer Supply1575mm Napkin Paper/Tissue Paper Manufacturing Machine
Product Details
Condition: | New | Product Type: | Other, plotter cutter | Processing Type: | Cutting Machine |
Place of Origin: | Shanghai, China | Brand Name: | SPIC plotter cutter | Model Number: | plotter cutter, plotter cutter |
Voltage: | 220v 50HZ | Power(W): | 5.5 KW | Dimension(L*W*H): | 2.2x1.86x1.18m |
Weight: | 800KG | Certification: | CE | Warranty: | 1 year, One year technical Support |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

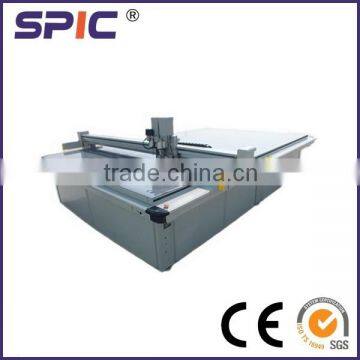

High Speed Digital Plotter Cutter with Servo
High speed flatbed digital plotter cutter is the new developed cutting system for the industries as packaging, printing, ads, display etc.
It has two independent module design, very good expansibility and exchangeable tools.
It equips versatile tools as vibrating knife, creasing wheel, drag knife, V cut knife, which can cut the materials up to 60mm thick, and capable with many kind of materials such as corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion.
Plotter cutter takes the whole new table design of steel frame and the table vacuum zone, which enables the stronger suction and more stable mechanical properties. Thanks to the auto tool height system, it makes the machine smarter, just by pressing one key then the tool depth can be set automatically, therefore avoid the overcut of the table.
main features:
· New steel frame design, more stable of machinery
·Auto tool height make the tool settings more convenience
·Cutting depth up to 60mm thickness, cover the major materials.
·Two independent module, exchangeable tools.
·New vacuum zone, stronger suction
Specitications:
Model | DCZ516 | DCZ713 | DCZ310 |
Effective cutting area | 2500*1600mm | 1700*1300mm | 1300*1000mm |
Configuration | Oscillating knife,pen,creasing tool,drag knife, foam tool, v cut tool | ||
Max aped | 1400mm/s | ||
Smallest cutting diameter | 6mm | ||
Maximum cutting thickness | 60mm | ||
Control line and driver | Servo | ||
Precision | ≤0.1mm | ||
Vacuum | 5.5kw | ||
Data form | HPGL,DXF,PDF | ||
Voltage | 220v±10% 50Hz | ||
Data port | parallel port,serial port,USB port | ||
Data Transmission speed | 10MB/s | ||
Input cushion area | 32MB | ||
Occupy dimension(L*W*H) | 3400*2460*1400mm | 2600*2160*1400mm | 2200*1860*1400mm |
Note | Other size can be customized. |
Note: Machinde sizes can be customzied according to customers.
We Promise: All your machines will be packed in steady seaworthy package.
Shanghai Printpack dedicate to provide "value+" service to those who in need of quality and resonable priced equipment for printing and packaging industry.
Our team of seasoned professional consultants are willing to offer range of products in print & pack machinery of hi performanced, as well as optimizing supply chain management for overseas customer sourcing from China.
We are willing to play as an important partner for those who got inspired by China's growth.
