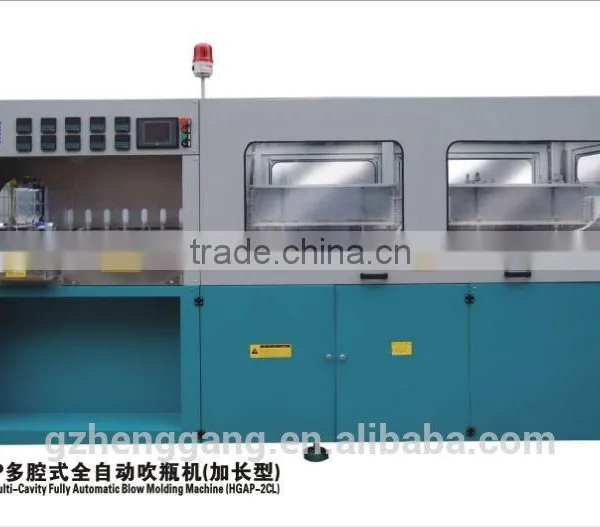

PP bottle making machines are assembled with a totally and tightly enclosed heating system which heats up stably. The whole machine is easy to operate, low cost, highly efficient, working very stably and producing finished products with very low defected rate; they are widely used in producing feeding bottles, heat resisting bottles, packaging of beverage, cosmetic, food, pharmaceuticscontainers and so on.
Parameters of PP bottle making machines:
Item |
HGA.P-2C |
|
Container |
Max. Container Volume |
750 ml |
Neck Diameter Range |
50 mm |
|
Max. ContainerDiameter |
100 mm |
|
Max. Container Height |
280 mm |
|
Theoretical Output |
900 bph |
|
Molding |
Clamping stroke |
150 mm |
Stretching stroke |
350 mm |
|
Bottom Stoke |
25 mm |
|
Preform distance |
130 mm |
|
Preform Holder |
62 pcs |
|
Cavities |
2 No. |
|
|
Electrical System |
Max. Heating Power |
48 kw |
Heating Power |
20 kw |
|
Air System |
Operating Pressure |
7 kg/c m2 |
Low Air Consumption |
1500 ltr/min |
|
Blowing Pressure |
35 kg/c m2 |
|
High Air consumption |
1000 ltr/min |
|
Cooling Water |
Operating Pressure |
5-6 kg/c m2 |
Temperature |
8-10°C |
|
Flow rate |
30 ltr/min |
|
Machine |
Size(L×W×H) |
3100×1750×1750mm |
Weight |
2800 kg |
|
Compressor High pressure
Compressor Low pressure
All the cavity molds(moulds) of PP bottle making machines are manufactured by ourselves. We have our own CNC processing machine and experienced engineer, who has been making cavity molds at least 5 years. Besides the cavity molds, other hardware parts are also produced by ourselves. Thus we have strong confidence in the stability of our machine because all parts can jointed and worked as a integrated unit.
The most frequently used material for molds are Aluminum, S136(stainless iron):
Our engineer is making the technical drawing by the software UG:
Our engineer is checking the process of the cavity moulds in the CNC machine:
Our master is drilling the holes for the installation of the molds, the drilling is strictly made according to the technical drawing, thus the combination of the parts will be matched perfectly.
Our PP bottle making machines has already accquired the CE certificate:
Other domestic patents of our auto PP bottle making machines :
