Detailed Product Description of Plastic juice bottles blowing machinery:
The HGA.H-4C for hot-fill is suitable to blow various types of bottles such as tea drinks bottle, juice bottle, and other types of heat-resistant bottle.
Features of Plastic juice bottles blowing machinery:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.
Parameters of Plastic juice bottles blowing machinery:
Item |
HGA.H-4C |
|
Container |
Max. Container Volume |
600 ml |
Neck Diameter Range |
18-38mm |
|
Max. ContainerDiameter |
68 mm |
|
Max. Container Height |
230 mm |
|
Theoretical Output |
2000 bph |
|
Molding |
Clamping stroke |
100 mm |
Stretching stroke |
350 mm |
|
Bottom Stoke |
50 mm |
|
Preform distance |
76 mm |
|
Preform Holder |
96 pcs |
|
Cavities |
4 No. |
|
|
Electrical System |
Max. Heating Power |
40 kw |
Heating Power |
20 kw |
|
Air System |
Operating Pressure |
7 kg/c m2 |
Low Air Consumption |
2000 ltr/min |
|
Blowing Pressure |
35 kg/c m2 |
|
High Air consumption |
8000 ltr/min |
|
Cooling Water |
Operating Pressure |
5-6 kg/c m2 |
Temperature |
8-12°C |
|
Flow rate |
30 ltr/min |
|
Machine |
Size(L×W×H) |
3240×1850×1800mm |
Weight |
3500 kg |
|

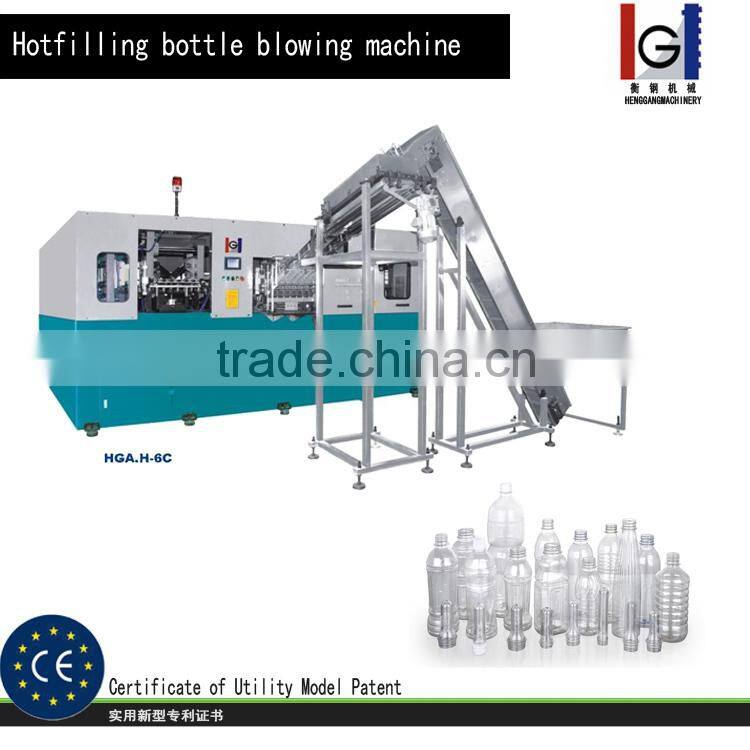

Machine photo of Plastic juice bottles blowing machinery
Factory overview:
We have two work shops to produce the Plastic juice bottles blowing machinery. One is to process the metallic components. We have CNC, drilling, grinding machines etc.. We can be sure about the perfect matching between different parts:
Technical support:
Besides the good quality of Plastic juice bottles blowing machinery, a good bottle design is very important for the client. We establish a experienced engineering team, to offer professional technical support to our clients.
Sample drawings made by CAD and UG software
Actual molds on site shooting:
Imported Electrical components:
The major electrical components of Plastic juice bottles blowing machinery are using imported famous brand. The high quality electrical components strenthen the stability of our Plastic pet cans blowing machines
After-sales service:
We will send engineers abroad once you decide to choose our Plastic juice bottles blowing machinery
Certifications
Our Plastic juice bottles blowing machinery has acquired the CE and other domestic patents
