Detailed Product Description of PET blow molding machine with handle pre-insert:
Single cavity,900bph for 1500ml, could blow all kinds of shapes, different volumes of beverage bottle, candy-jars, edible oil bottle, sauces bottle, detergent bottle, cosmetic bottle, medicine bottle, health products and other shapes of containers using PET as material.
Features of PET blow molding machine with handle pre-insert:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.
Parameters of PET blow molding machine with handle pre-insert:
Item |
HGA.C-1C |
|
Container |
Max. Container Volume |
1500 ml |
Neck Diameter Range |
50 mm |
|
Max. ContainerDiameter |
105 mm |
|
Max. Container Height |
300 mm |
|
Theoretical Output |
900 bph |
|
Molding |
Clamping stroke |
150 mm |
Stretching stroke |
350 mm |
|
Bottom Stoke |
25 mm |
|
Preform distance |
130 mm |
|
Preform Holder |
54 pcs |
|
Cavities |
1 No. |
|
|
Electrical System |
Max. Heating Power |
16 kw |
Heating Power |
5 kw |
|
Air System |
Operating Pressure |
7 kg/c m2 |
Low Air Consumption |
1000 ltr/min |
|
Blowing Pressure |
35 kg/c m2 |
|
High Air consumption |
800 ltr/min |
|
Cooling Water |
Operating Pressure |
5-6 kg/c m2 |
Temperature |
8-12°C |
|
Flow rate |
30 ltr/min |
|
Machine |
Size(L×W×H) |
2520×1350×1750mm |
Weight |
1500 kg |
|

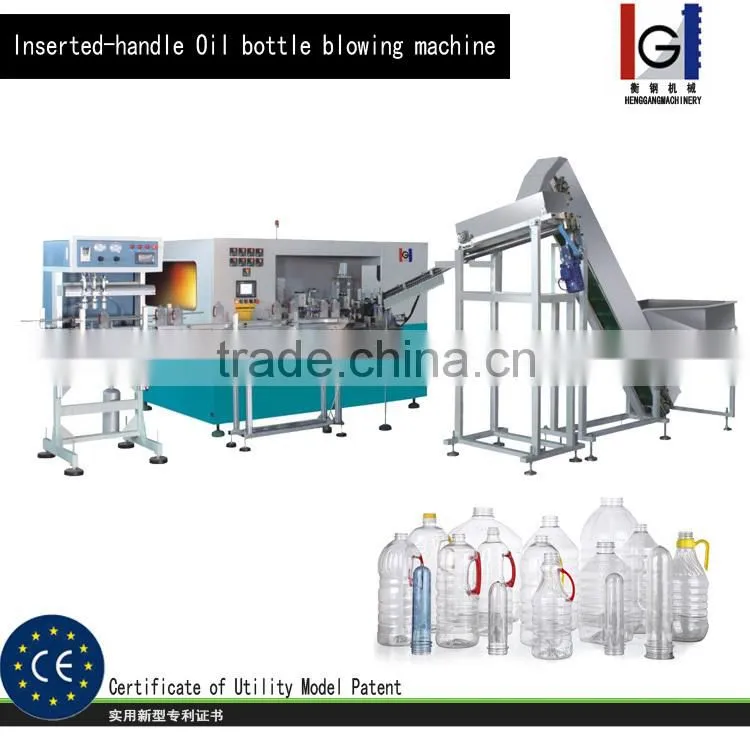

photo of PET blow molding machine with handle pre-insert
Factory overview:
We have two work shops to produce the PET blow molding machine with handle pre-insert. One is to process the metallic components. We have CNC, drilling, grinding machines etc.. We can be sure about the perfect matching between different parts:
Technical support:
Besides the good quality of PET blow molding machine with handle pre-insert, a good bottle design is very important for the client. We establish a experienced engineering team, to offer professional technical support to our clients.
Sample drawings made by CAD and UG software
Actual molds on site shooting:
Imported Electrical components:
The major electrical components of PET blow molding machine with handle pre-insert are using imported famous brand. The high quality electrical components strenthen the stability of our Plastic pet cans blowing machines
After-sales service:
We will send engineers abroad once you decide to choose our PET blow molding machine with handle pre-insert
Certifications
Our PET blow molding machine with handle pre-insert has acquired the CE and other domestic patents
