Axle Scale Load Cell ,weighing Scale Force Sensor

Axle Scale Load Cell ,weighing Scale Force Sensor thumbnail-1
Axle Scale Load Cell ,weighing Scale Force Sensor thumbnail-2
Axle Scale Load Cell ,weighing Scale Force Sensor photo-1
Axle Scale Load Cell ,weighing Scale Force Sensor photo-2
US$ 50 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC203A
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC203A
Usage Pressure Sensor
Theory Resistance Sensor
Output Analog Sensor
Product Description
axle scale load cell ,weighing scale force sensor

Features

Model:MLC203A

Rated load: 5,10,25,30,40T

Precision: C2

Safe overload:150%, Ultimate overload: 200%

Material: Alloy steel,stainless steel

Apply to: Axle scale,warehouse scale,experimental machine, weighing scale force sensor

Technology


other dimension

LOAD T

D

H1

H2

H

D1

D2

D3

5,10

104.6

19.2

45.3

100

21.5

19.5

37

25,50,60

122

25

54

147

25

40

50

100

138

30

57

155

25

40

50

Specification

comprehensive error::

0.05%FS

output resistance:

700±10Ω

Rated output:

2±0.002mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.05%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.02%FS

compensated temp:

-10~+40ºC

Repeatability:

0.01%FS

use temperature:

-35~+65ºC

Creep:

0.03%FS/10MIN

temp effect on zero:

0.03%FS/10ºC

Zero balance:

±1%FS

Temp effect on span:

0.02%FS/10ºC

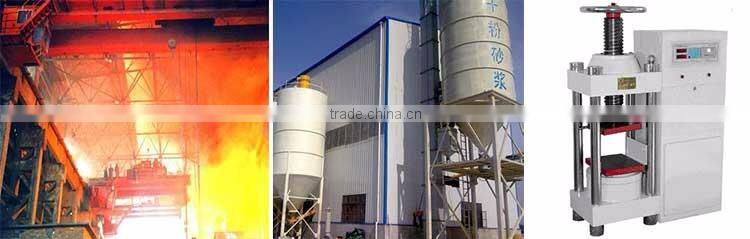

Application

 axle scale load cell ,weighing scale force sensor

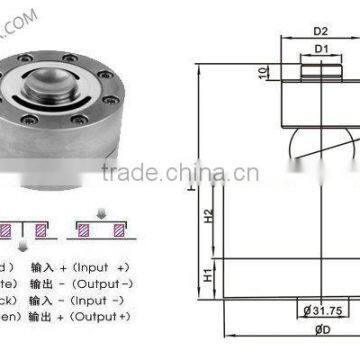

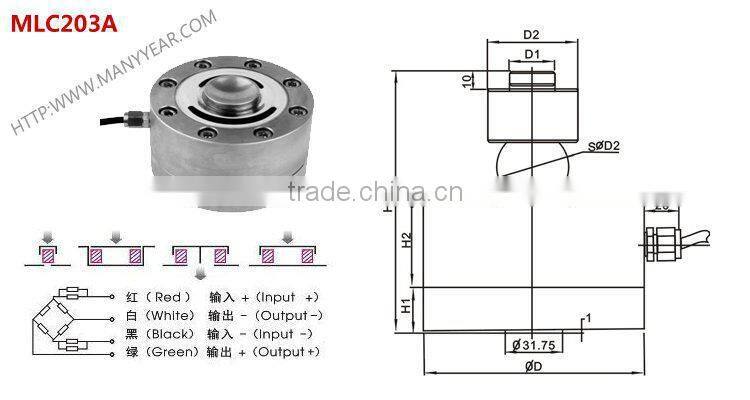

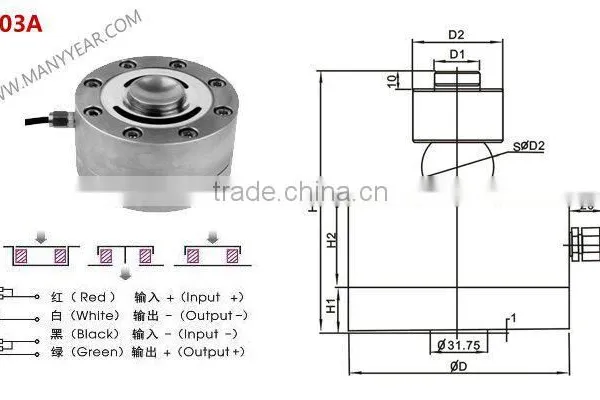

Product Dimension
axle scale load cell ,weighing scale force sensor

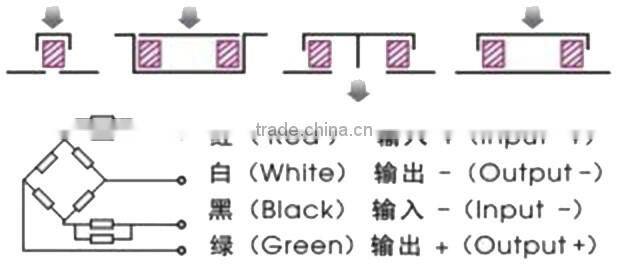

Force type

axle scale load cell ,weighing scale force sensor

Packaging & Shipping

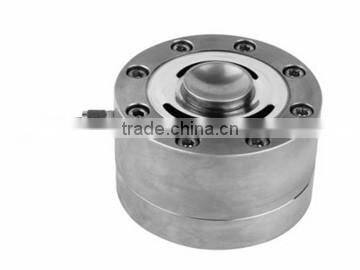

Product photo

axle scale load cell ,weighing scale force sensor



Packing picture

axle scale load cell ,weighing scale force sensor



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
