Bridge Load Cell Apply to Truck Scale, Weighbridge

Bridge Load Cell Apply to Truck Scale, Weighbridge thumbnail-1
Bridge Load Cell Apply to Truck Scale, Weighbridge thumbnail-2
Bridge Load Cell Apply to Truck Scale, Weighbridge thumbnail-3
Bridge Load Cell Apply to Truck Scale, Weighbridge thumbnail-4
Bridge Load Cell Apply to Truck Scale, Weighbridge thumbnail-5
Bridge Load Cell Apply to Truck Scale, Weighbridge thumbnail-6
Bridge Load Cell Apply to Truck Scale, Weighbridge photo-1
Bridge Load Cell Apply to Truck Scale, Weighbridge photo-2
Bridge Load Cell Apply to Truck Scale, Weighbridge photo-3
Bridge Load Cell Apply to Truck Scale, Weighbridge photo-4
Bridge Load Cell Apply to Truck Scale, Weighbridge photo-5
Bridge Load Cell Apply to Truck Scale, Weighbridge photo-6
US$ 50 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
manyyear, MANYYEAR
Model Number:
MLC100
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name manyyear, MANYYEAR
Model Number MLC100
Type Other, Truck Scale, truck scale load cell
Power Supply 10vdc
Display Type LED
Rated Load 300t
Accuracy 10kg



Product Description

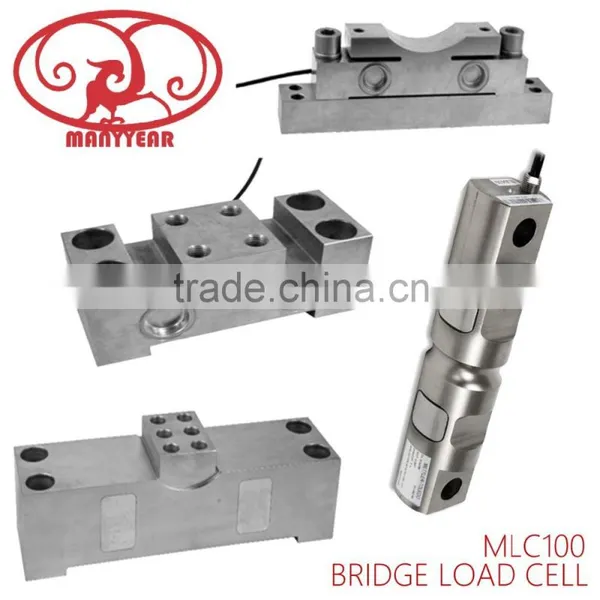

Bridge load cell apply to truck scale, weighbridge



Product specification

Category: MLC100-Bridge Load Cell

Range:  Min 0.5t; Max 200t

Material :Alloy steel, stainless steel

comprehensive error:

0.05%FS

output resistance:

700±5Ω

Rated output:

1.0mv/v;2.0mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.05-0.2%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.05-0.1%FS

compensated temp:

-10~+40℃

Repeatability:

0.03-0.1%FS

use temperature:

-20~+55℃

Creep:

0.03-0.1%FS/10MIN

temp effect on zero:

0.05%FS/10℃

Zero balance:

±1%FS

Temp effect on span:

0.05%FS/10℃

Input resistance:

700±10Ω

defend grade:

IP65,IP66 & IP68

Product Application:

Testing machine, Compression force test, Safe overload,

Axle scale, Floor scale, Railway scale,

Steel embody scale, Truck Scale, Warehouse scale

PIC

Bridge load cell apply to truck scale, weighbridge



Product index

Product

Dimension (mm)

Rated load

accuracy

error

Rate output

safe overload

Defend grade

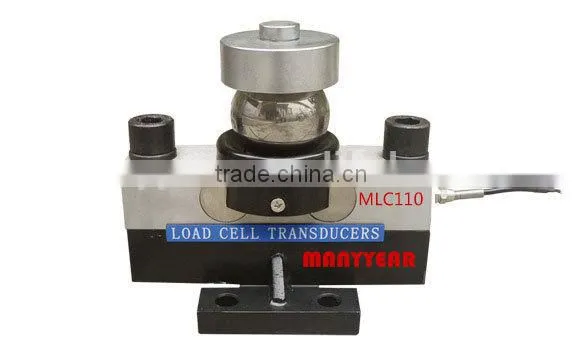

MLC110

240*229.3*135

10,20,25,30T

C3

0.02%FS

2±0.001mv/v

150%

IP65,IP66

MLC111

220*45*86

3,4,5T

C1

0.05%FS

2±0.001mv/v

150%

IP65,IP66

MLC112

480*80*85

10t, 15t, 20t, 25t, 30t

C2

0.05%FS

2±0.001mv/v

150%

IP65,IP66

MLC113

200*80*60

/300*120*120

/300*150*120

10t, 20t, 30t, 40t, 50t

C2

0.05%FS

2±0.001mv/v

150%

IP65,IP66

MLC114

180*37*40/

200*85.4*99.75

0.5t, 2t, 3t

C2

0.05%FS

2±0.001mv/v

150%

IP65,IP66

MLC115

390*56*127

500*86*173

10t, 15t, 20t, 30t, 40t, 50t, 60t

C2

0.05%FS

2±0.001mv/v

150%

IP65,IP66

MLC116

450*120*130

500*140*143

560*160*158

620*180*175

50t, 100t, 150t, 200t

C2

0.05%FS

2±0.001mv/v

150%

IP65,IP66

MLC117

598*48*56

5,10T

C1

0.2%FS

2±0.001mv/v

150%

IP65,IP66

MLC118

350*75*56

410*100*56

1t, 2t, 3t, 4t, 5t, 10t, 20t

C1

0.2%FS

2±0.001mv/v

150%

IP65,IP66

MLC120

320*120*100

5,10T

C1

0.1%FS

2±0.001mv/v

150%

IP65,IP66

MLC121

160*24*30

2T

C1

0.2%FS

2±0.001mv/v

150%

IP65,IP66

MLC130

368.3*78*78

25~40KLB 50~75KLB 100KLB

C3

0.02%FS

3±0.001mv/v

150%

IP65,IP66

MLC131

285.8*88.9

5~10KLB 15~20KLB 30~60KLB 100KLB

C3

0.02%FS

3±0.001mv/v

150%

IP65,IP66

MLC132

260*D52

50,60,75,100KLB

C3

0.017%FS

3±0.001mv/v

150%

IP65,IP66

MLC133

343*75

1, 5, 10, 25, 50, 75KLB

C2

0.03%FS

3±0.001mv/v

150%

IP65,IP66

MC134

D60*235

15T

C2

0.1%FS

2±0.001mv/v

150%

IP65,IP66

MLC141

130*33*28

800kg

C2

0.1%FS

2±0.001mv/v

150%

IP65,IP66

MLC142

100*28*9

0.5t, 1t, 1.5, 2t, 5t

C2

0.1%FS

2±0.001mv/v

150%

IP65,IP66

MLC151

374*160*91

5t

C2

0.1%FS

2±0.001mv/v

150%

IP65,IP66

MLC152

816*150*94

5t

C2

0.1%FS

2±0.001mv/v

150%

IP65,IP66

MLC153

362*160*80.5

382*135*91

402*220*140

452*280*170

2t, 5t, 10t, 15t, 20t, 30t, 40t, 50t, 60t

C2

0.1%FS

2±0.001mv/v

150%

IP65,IP66

MLC154

480*116*60

2/2.5/3T

C2

0.1%FS

2±0.001mv/v

150%

IP65,IP66

MLC161

¢ 55*123

2t,3t,4t

C2

0.1%FS

2±0.001mv/v

150%

IP65,IP66

MLC162

¢58*128

¢ 68*128

0.75t, 1t, 1.5t, 2t, 2.5t, 3t, 4t, 5t

C2

0.1%FS

2±0.001mv/v

150%

IP65,IP66

MLC171

180*40*95.5

200*40*136.5

260*60*174

1t,2t,3t,5t,10t

C2

0.1%FS

2±0.001mv/v

150%

IP65,IP66

MLC172

170*80*117

3T

C2

0.1%FS

2±0.001mv/v

150%

IP65,IP66



Packaging & Shipping



Environment-protected polybag + Color box + carton box+ damp proof packing

Ocean Freight, Air freight, DHL, FEDEX, TNT,SF, EMS…

Pic





Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support

Company Information



Our Factory

Provide Design, manufacture, sales, server of load cell since 1998.

20,000 square meter industrial park

1000+ worker.



 Bridge load cell apply to truck scale, weighbridge

Our Intelligence

ISO, OIML, ROHS, CE.





Our Equipment

800t hydraulic machince.

Precision balance laboratory.

0.001g to 20t Weihing machince.

Truck scale test station.

CNC machince.

Life test chamber
