Axle Load Sensor, Axis Load Cell

Axle Load Sensor, Axis Load Cell thumbnail-1
Axle Load Sensor, Axis Load Cell thumbnail-2
Axle Load Sensor, Axis Load Cell photo-1
Axle Load Sensor, Axis Load Cell photo-2
US$ 100 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC503
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC503
Type Other, Axis load cell
Power Supply NA
Display Type NA
Rated Load NA
Accuracy NA
Product Description
axle load sensor, axis load cell

Features

Model:MLC503

Rated load: 10KN

Precision: C2,

Safe overload:150%

Ultimate overload: 200%

Material: Alloy steel,stainless steel

Apply to: test equipment,force measure, compression testpressional scale

Technology


comprehensive error:

0.05%FS

output resistance:

352±5Ω

Rated output:

1.0±0.002mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.02%FS

Excitation voltage:

9~15VDC

Hysteresis:

0.02%FS

compensated temp:

-10~+40°C

Repeatability:

0.02%FS

use temperature:

-40~+80°C

Creep:

0.02%FS/10MIN

temp effect on zero:

0.03%FS/10°C

Zero balance:

±1%FS

Temp effect on span:

0.02%FS/10°C

Input resistance:

380±5Ω

defend grade:

IP68

Application

 axle load sensor, axis load cell

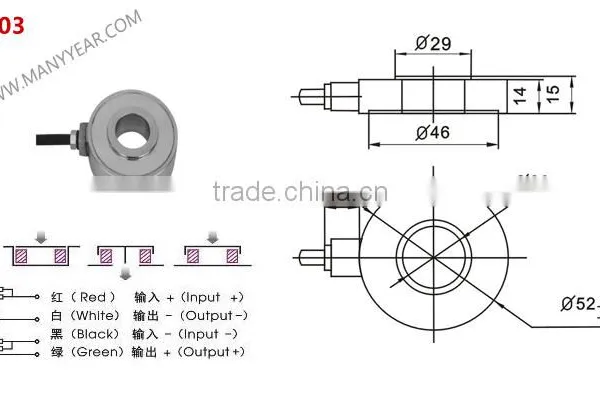

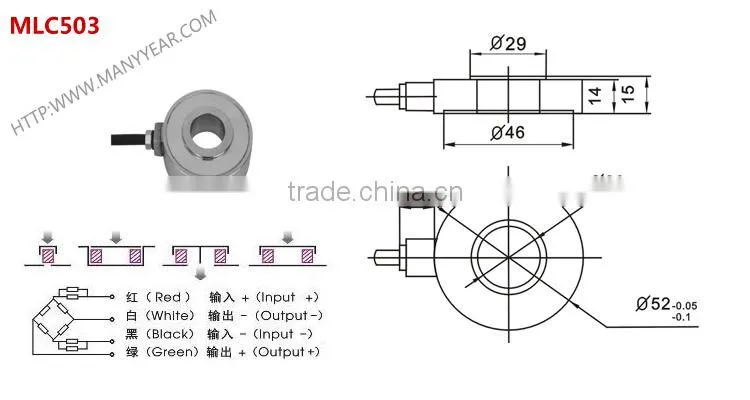

Product Dimension
axle load sensor, axis load cell

Force type

axle load sensor, axis load cell

Packaging & Shipping

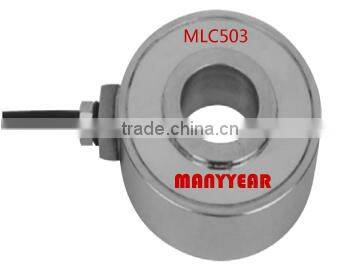

Product photo

axle load sensor, axis load cell



Packing picture

axle load sensor, axis load cell



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
