Miniature Low Cost Body Fat Scale Load Cell

Miniature Low Cost Body Fat Scale Load Cell thumbnail-1
Miniature Low Cost Body Fat Scale Load Cell thumbnail-2
Miniature Low Cost Body Fat Scale Load Cell thumbnail-3
Miniature Low Cost Body Fat Scale Load Cell photo-1
Miniature Low Cost Body Fat Scale Load Cell photo-2
Miniature Low Cost Body Fat Scale Load Cell photo-3
US$ 2 - 10 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC928DA
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC928DA
Usage Other, Force sensor
Theory Resistance Sensor
Output Analog Sensor
Product Description
miniature low cost body fat scale load cell

Features

Model:MLC928DA

Category:micro load cell

Range:5kg, 10kg, 30kg, 50kg, 75kg

Dimension:34*35*4.5mm

Material:Alloy steel

Application:handle scale,kitchen scale,microfore test equipment

Characteristic:kitchen scale sensor, micro force sensor

Technology


Specification

comprehensive error:

0.05%FS

output resistance:

1000±20Ω

Rated output of full bridge:

1.6±0.2mv/v (50kg)

1.6±0.2mv/v (30kg)

1.0±0.2mv/v (10kg

Input resistance:

1000±20Ω

Rated output-half bridge:

0.8±0.15mv/v

Insulation resistance:

≥2000MΩ(100VDC)

Non-linearity:

0.05%FS

Excitation voltage:

3~10VDC

Hysteresis:

0.05%FS

use temperature:

-10~+40ºC

Repeatability:

0.05%FS

temp effect on zero:

0.1%FS/10ºC

Creep:

0.1%FS/10MIN

Temp effect on span:

0.05%FS/10ºC

Zero balance:

1±0.1%FS

defend grade:

IP66

Application

miniature low cost body fat scale load cell

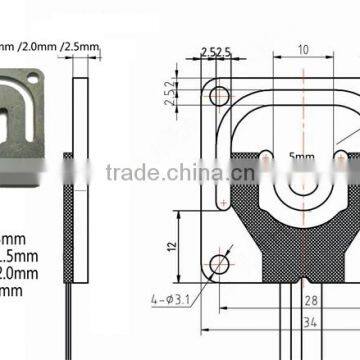

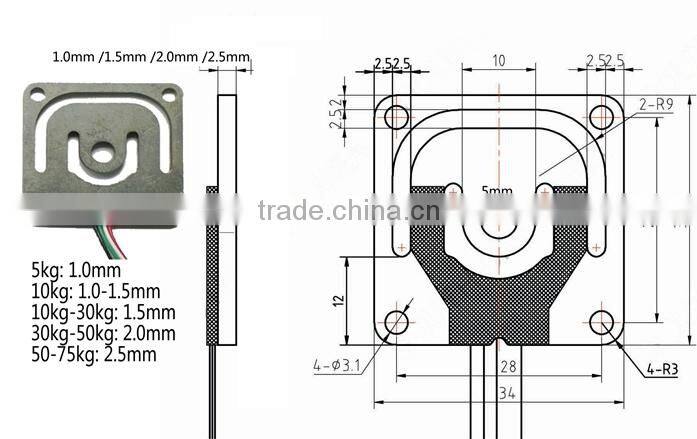

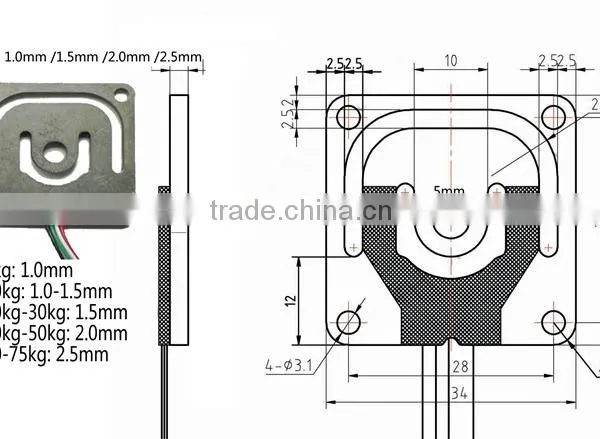

Product Dimension

miniature low cost body fat scale load cell



Force type

miniature low cost body fat scale load cell



Packaging & Shipping

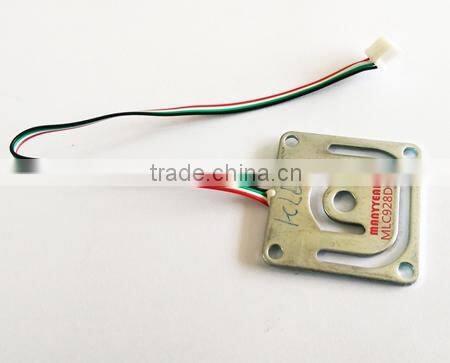

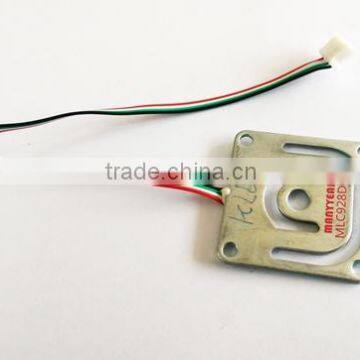

Product photo

miniature low cost body fat scale load cell



Packing picture

miniature low cost body fat scale load cell



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
