Home > Electrical & Electronics > Sensor > Pressure Sensor > Load Cell

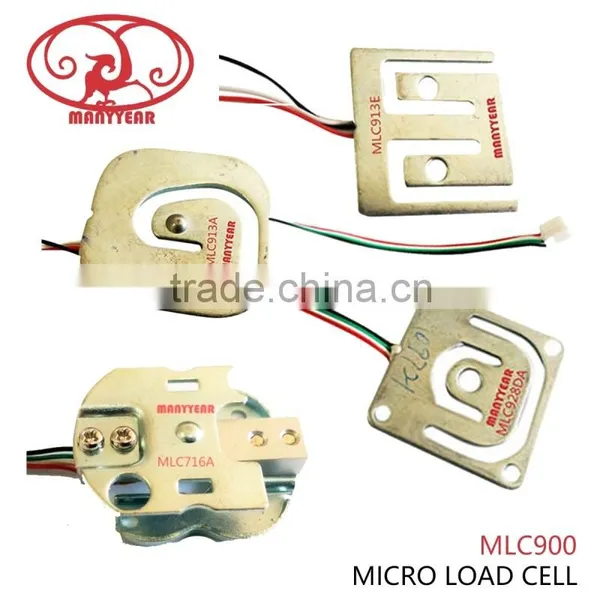

Load Cell

Name: Load Cell
Brand: MANYYEAR
SKU: 130660717
Availability: InStock

US$ 1 - 5 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

MANYYEAR

Model Number:

MLC900

Contact Supplier Request Quote Chat Now

Manyyear Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name MANYYEAR

Model Number MLC900

Usage Other, weighing load cell

Theory Resistance Sensor

Output Analog Sensor

miniature load cell, miniature weight sensor

Product Description

Product specification Category:Micro weighing Range: Min 20g; Max 75kg Material: Alloy steel, stainless steel alloy aluminum
Base Specification
comprehensive error:		0.02-0.1%FS		output resistance:			700±5Ω
Rated output:		0.5mv,1.0mv/v;2.0mv/v		Insulation resistance:			≥5000MΩ(100VDC)
Non-linearity:		0.05-0.1%FS		Excitation voltage:			9~12VDC
Hysteresis:		0.05-0.1%FS		compensated temp:			-10~+40℃
Repeatability:		0.03-0.1%FS		use temperature:			-20~+55℃
Creep:		0.03-0.1%FS/10MIN		temp effect on zero:			0.05%FS/10℃
Zero balance:		±1%FS		Temp effect on span:			0.05%FS/10℃
Input resistance:		700±10Ω		defend grade:			IP65,IP66 & IP68
Product Application Micro weighing Tension test Baby scale Body scale Fish scale Portable scale Jeweler scale Kitchen scale Luggage scale
Pic
Product Index
Mode	Dimension		Load range		Precision	Rate output mv/v		Material
MLC611C	5812.712.7		0.5~20kg		0.05FS	±0.1mv		aluminum
MLC611N	8012.712.7		1~25kg		0.05FS	1±0.03mv/v		aluminum
MLC614H	75916		3~10kg		0.05FS	1±0.03mv/v		aluminum
MLC616C	459.36		300~750g		0.05FS	0.7±0.03mv/v		aluminum
MLC635	5512.712.7		1~25kg		0.05FS	1±0.03mv/v		aluminum
MLC639M	47126		100~750g		0.05FS	0.7±0.03mv/v		aluminum
MLC700	31.87.9h		10~50kg		0.3FS	1.7±0.03mv/v		aluminum
MLC700D	4010h		10~40kg		0.2FS	1.1±0.03mv/v		aluminum

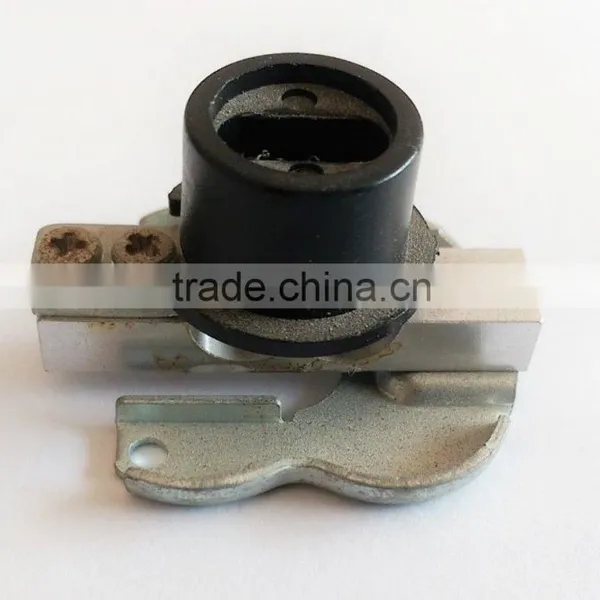

MLC716A	30.235.511.2		4kg		0.05FS	3.2±0.3mv/v		aluminum
MLC902	34347.8		10kg,25kg,50kg,75kg		0.2%FS	1.0/0.5±0.15mv/v		Alloy steel
MLC913A	34343.3		50kg		0.2%FS	1.6±0.03mv/v		Alloy steel

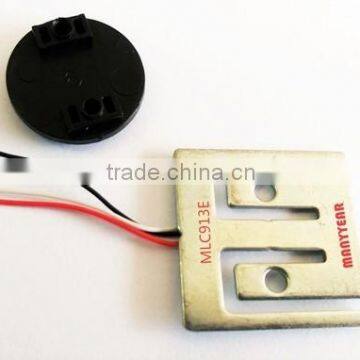

MLC913E	26261		3kg		0.05%FS	1.0±0.03mv/v		Alloy steel
MLC928HC	20204.2		3kg		0.05%FS	1.0±0.03mv/v		Alloy steel
MLC929B	35.2292.5		50kg,75kg		0.2%FS	1.5±0.15mv/v		Alloy steel
MLC929E	2828h		50kg,75kg		0.2%FS	1.0±0.03mv/v		Alloy steel
MLC930	2828h		3.75kg-375kg		0.03%FS	1.0±0.1mv/v		Alloy steel

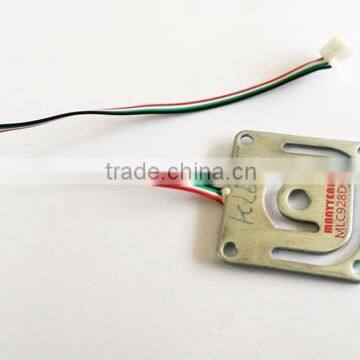

MLC928DA	34354.5		10KG,30KG,50KG,75KG		0.05%FS	0.5/1.0/1.6/±0.15mv/v		Alloy steel
MLC617C	191027		500G~5Kg		0.1FS	1.5±0.15mv/v		aluminum
