Luggage Scale Load Cell

Luggage Scale Load Cell thumbnail-1
Luggage Scale Load Cell photo-1
US$ 2 - 10 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC700AF
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC700AF
Type Other, luggage scale
Power Supply NA
Display Type NA
Rated Load 30kg
Accuracy NA
Product Description
luggage scale load cell


Features

Model:MLC700AF

Category:micro load cell

Range:30kg

Dimension:45*19*2.5mm

Material:alloy steel

Application:luggage scale

Characteristic:luggage scale load cell
  Technology


Specification

comprehensive error:

0.3%FS

output resistance:

1000±10Ω

Rated output:

1.0±0.15mv/v

Insulation resistance:

≥2000MΩ(100VDC)

Non-linearity:

0.2%FS

Excitation voltage:

5~10VDC

Hysteresis:

0.2%FS

compensated temp:

-10~+40ºC

Repeatability:

0.1%FS

use temperature:

-10~+40ºC

Creep:

0.2%FS/3MIN

temp effect on zero:

0.2%FS/10ºC

Zero balance:

1±0.1%FS

Temp effect on span:

0.2%FS/10ºC

Input resistance:

1000±10Ω

defend grade:

IP66

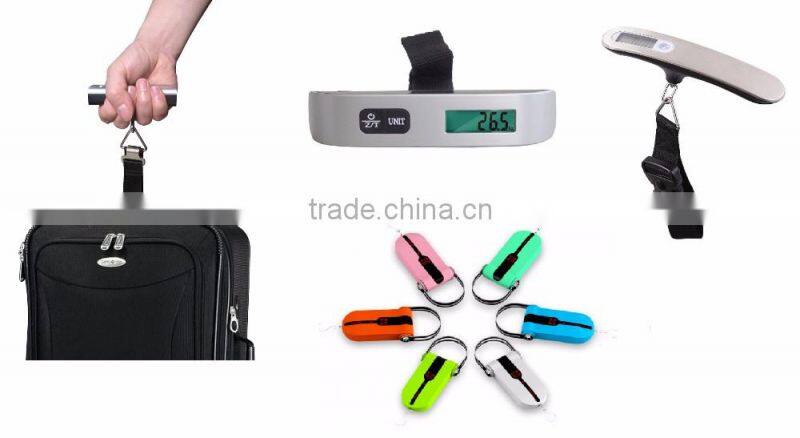

Application

luggage scale load cell

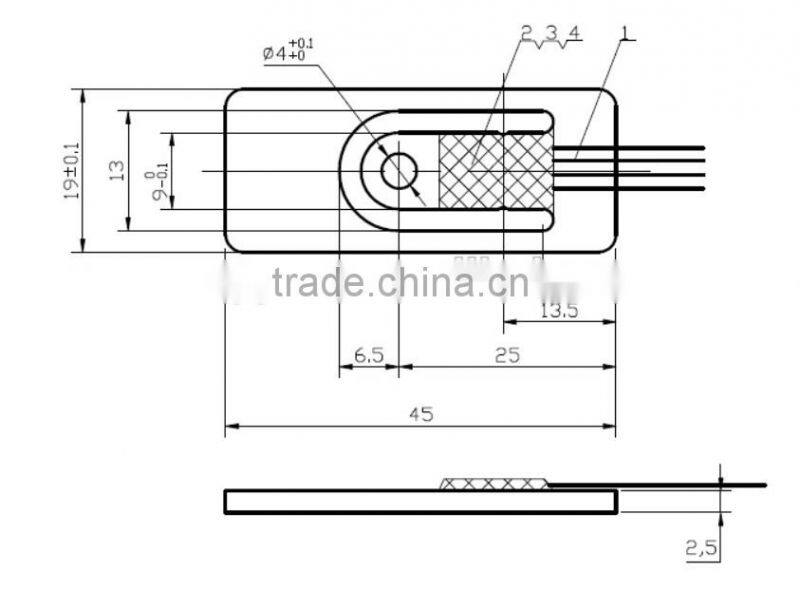

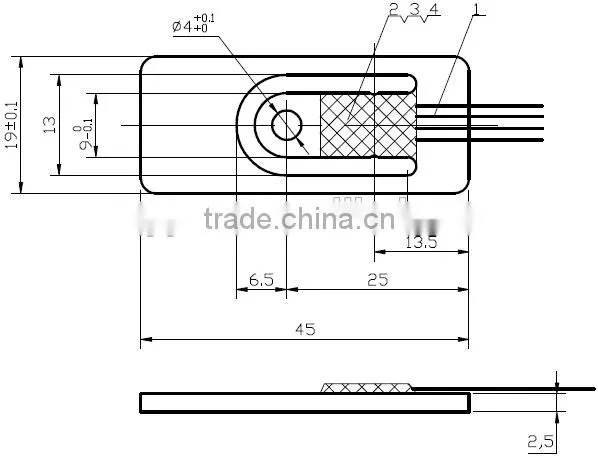

Product Dimension
luggage scale load cell

Force type

luggage scale load cell



Packaging & Shipping

Packing picture

luggage scale load cell



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
