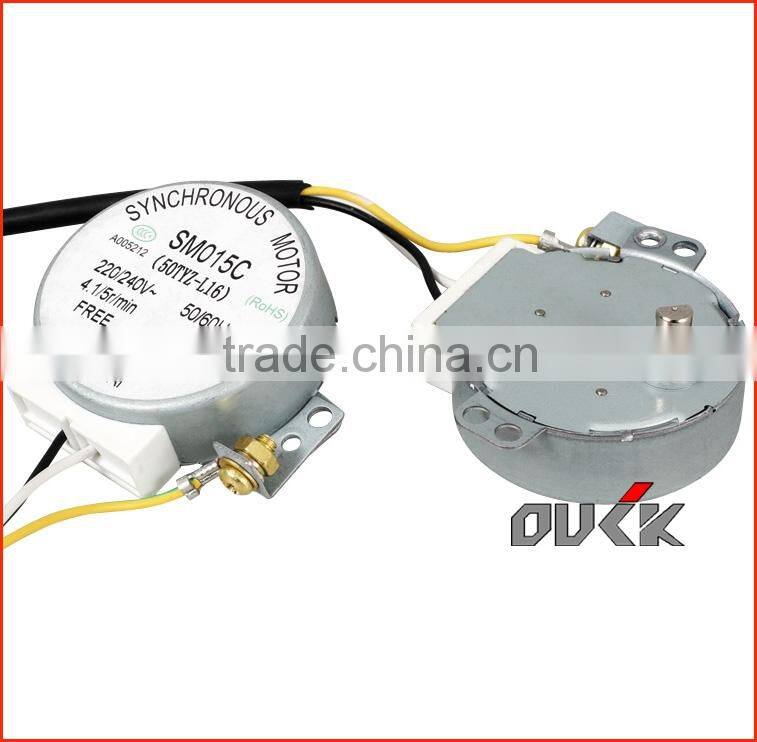

50TYZ416-L16 Synchronous Motor
- Shanghai
- T/T
You May Like
Product Details
| Brand Name | OUCK | Model Number | 50TYZ416-L16 | |
| Type | AC Motor | Use | Other, household applicance | |
| Motor | Other | Voltage | Other, 220/240V | |
| Certification | CE |
Product Description
Specifications
Our motor is reducing motor,and use high energy magnets made with neodymium or other strategic elements;the higher flux density
ac motor/electric motor/Synchronous Motor
We have been certificated by the ISO90001:2000, CCC, UL,CE, VED.
Our mainly product is synchronous motor, stepping motor, copper pipe and heat exchange for air-conditioner, mold.
Our main Customer: Midea, Gree, Haier, LG, Samsung, Panasonic, Kohler USA, Wright, Ou Ling Bao, Mitsubishi Heavy Industries, Japnaese TOTO, etc.
Model | 50TYZ416-L16 |
Rated Voltage | 220/240 AC.V |
Rated Frequency | 50/60 Hz |
Input Power | ≤4 W |
Input Current | ≤25 mA |
Output Torque | 63.7~150 mN.m |
Output Rotate Speed | 4.1~5 rpm |
Insulation Rank | E |
Rotate Direction | Free |
Starting Voltage | ≤176 V |
Temperature Rise | ≤60 K |
Noise | ≤40 dB(A) |
Dielectric Strength | 1800 V/1s |
| Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|---|---|
| Motor | 1,960,000 Sets / Month | 18,480,000 Sets |
| Market | Revenue(Previous Year) | Total Revenue (%) |
|---|---|---|
| South America | USD 1,104 | 0.01 |
| Southeast Asia | USD 35,936 | 0.25 |
| Eastern Asia | USD 7,371 | 0.05 |
| Domestic Market | USD 14,534,978 | 99.69 |
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Skeleton Splicing Machine | No Information | 1 | 3.0 | Acceptable |
| Pressing Machine 2 | No Information | 6 | 3.0 | Acceptable |
| Coiling Machine | No Information | 9 | 5.0 | Acceptable |
| Coating Machine | EDT-6 | 5 | 1.0 | Acceptable |
| Seaming Machine | No Information | 1 | 8.0 | Acceptable |
| Pressing Machine 1 | JM | 44 | 5.0 | Acceptable |
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Resistance Tester | ATS10SE | 4 | 2.0 | Acceptable |
| Drying Machine | CT-C | 1 | 4.0 | Acceptable |
| Humidity Testing Machine | Sude, Tainuo | 3 | 4.0 | Acceptable |
| Salt Spraying Machine | YWX/Q-150 | 1 | 4.0 | Acceptable |
| Motor Testing Machine | BKA4256 | 15 | 2.0 | Acceptable |
| Frequency Converter | Jingjiu | 1 | 5.0 | Acceptable |
| Vibration Tester | No Information | 1 | 2.0 | Acceptable |
| Sound Level Meter | AWA5661 | 1 | 2.0 | Acceptable |
| Elongation Tester | SC-2KN | 1 | 5.0 | Acceptable |
| Springback Angle Tester | ZHT-1 | 1 | 5.0 | Acceptable |
Production Flow:
5.Skeleton Splicing 6.Pressing 2 7.Coiling 8.Encapsulating
9.Coating 10.Testing 11.Assembly 12.Packing 1
13.Seaming 14.Packing 2
| Certification Name | Certified By | Certificate No. | Product Name & Model No. | Available Date-Expired Date | |
|---|---|---|---|---|---|
| CCC | China Quality Certification Centre | 2008010401265392 | Motor & 50TYZ, 50KTYZ, 42KTYZ | 2013/01/08-2015/07/29 | |
| CE | Eurofins Product Service GmbH | G0M20911-2672 | Step Motor & 24BYJ48, 20BYJ46, 28BYJ48, 30BYJ46, 35BYJ46, 35BYJ412, 50BYJ46 | 2009/11/24-2049/12/31 | |
